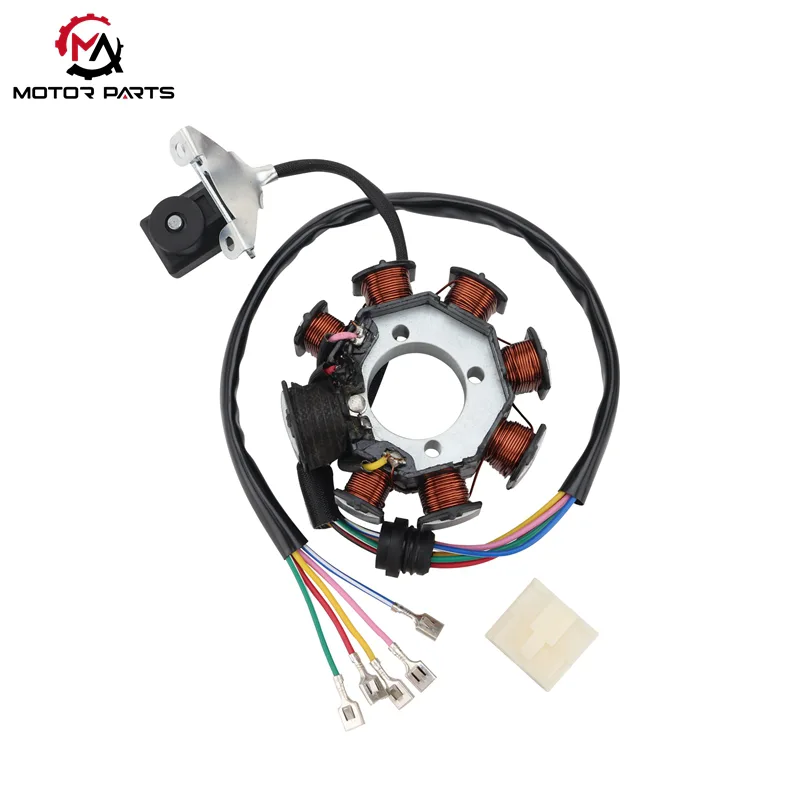

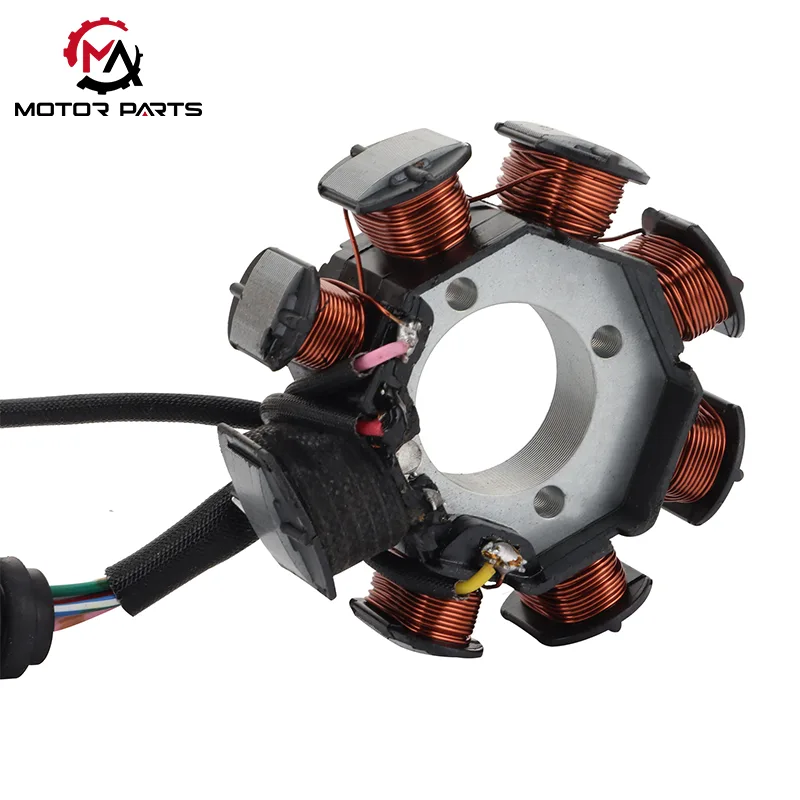

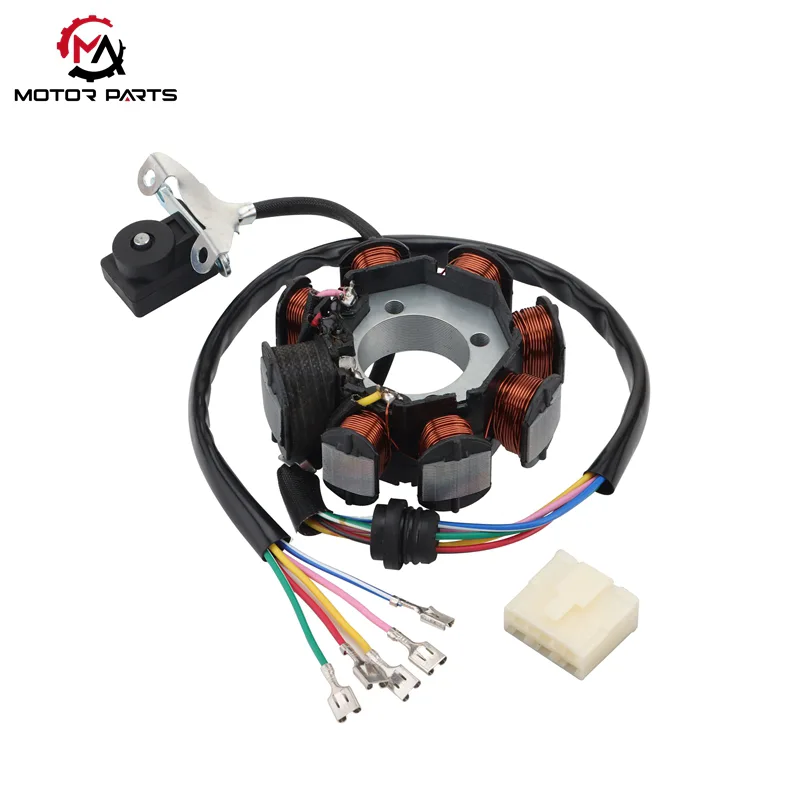

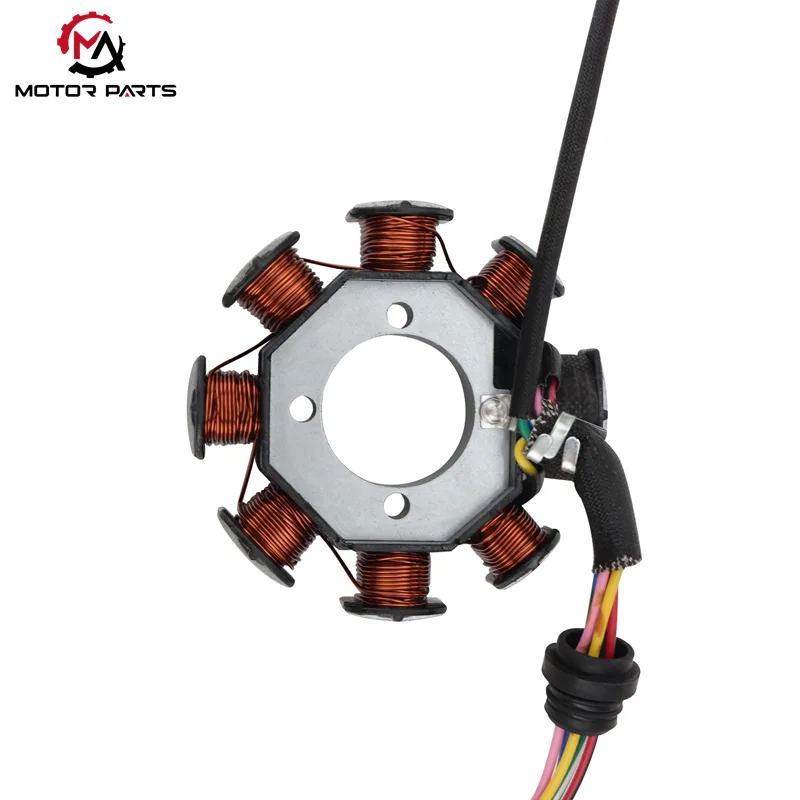

High Output 8-Pole Stator Coil for CG125

Upgrade the charging system of the GY6 engine with this high-performance stator coil designed deliberately for 125cc/150cc four stroke power units by Max Trading. The copper material given the High Output 8-Pole Stator Coil for CG125 with premium conductivity and heat resistance, raising power generation and delivering stable, reliable output to properly battery charging. Factory directly supply guarantees steady delivery and affordable pricing.

1. Made of high quality materials, building a durable foundation

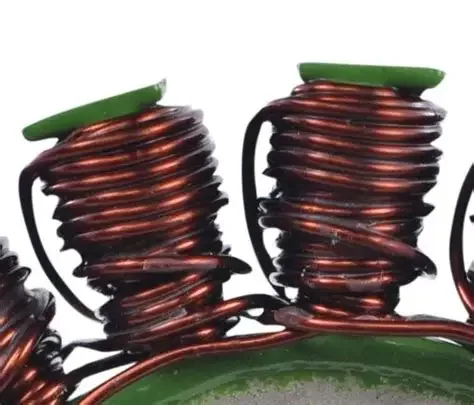

1.1 Coil winding: high-purity copper enameled wire

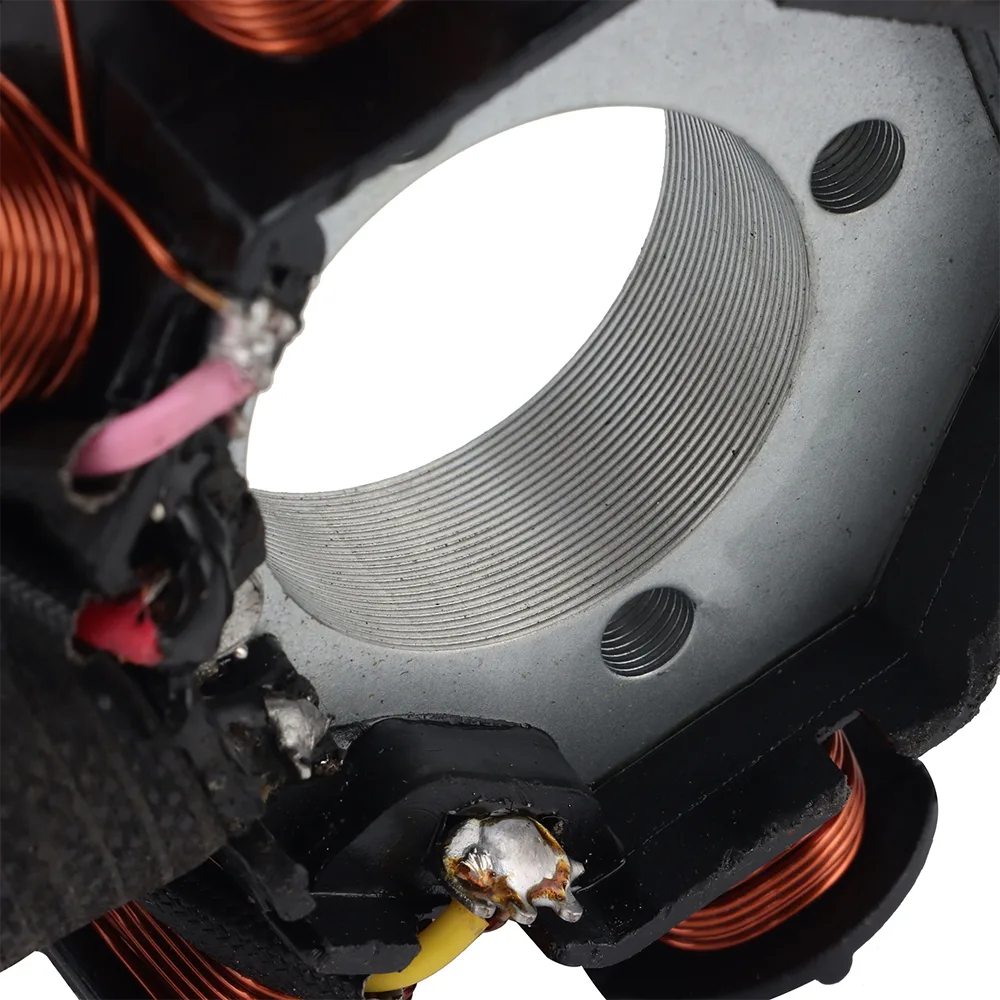

The main conductive components are made by 100% pure copper wire precision winding, with united wire diameter and tight winding. Compared with ordinary copper-clad aluminum coils on the market, the conductivity performance is greatly improved by more than 30%. The resistance value of pure copper material is extremely low, and the heat generated during operation is weak, which can effectively reduce the loss during the transmission of electrical energy, ensuring stable and long-lasting electrical support to the motorcycle engine. It perfectly fits

to the long-term high frequency working characteristics of CG125 8-Pole Stator Coil for GY6 125cc 150cc 4-Stroke Engine, ensuring smooth ignition and power supply of the engine.

1.2 Stator core: silicon steel sheet (electrical steel)

The iron core is refined from imported cold-rolled silicon steel sheets, with the core advantages of tight and seamless fit, high magnetic permeability, low iron loss, and excellent magnetic conductivity. It can properly enhance electromagnetic conversion efficiency, making electrical energy output more efficient and stable. At the same time, this High Output 8-Pole Stator Coil for CG125 is equipped with professional vacuum sealing technology, which seals and encapsulates the coil as a whole, forming a triple protective barrier of waterproof, moisture-proof, and anti vibration, extending the service life of CG125 magnetic motor coils, reducing maintenance and replacement frequency, and lowering user costs.

1.3 Insulation skeleton: Ensure stable operation

The coil skeleton is made of high-quality fiberglass material with excellent high temperature resistance and insulation performance. After high-temperature curing and shaping treatment, the high temperature resistance limit can reach 180 ℃, and it can withstand the high temperature roasting caused by the long-term operation of motorcycle engines. Protecting the insulation layer from common faults such as aging, cracking, and short circuits can provide more reliable insulation protection for the internal conductive structure of the coil, further enhancing the stability of product operation and ensuring long-term stable operation of GY6 125cc 150cc Stator Coil.

1.4 Lightweight aluminum alloy shell

The housing of the high output stator for GY6 scooter is made of high-strength aluminum alloy material, which is integrally formed. The lightweight design not only does not increase the additional load on the motorcycle engine, but also has excellent heat dissipation performance. It can quickly dissipate the small amount of heat generated in coil operation, preventing the influence of overheating on coil performance.

2. Diversified application scenarios, adapted to a wide range of needs

2.1 Excellent vehicle compatibility

This product is specially customized for the CG125 series motorcycles, compatible with multiple similar top pole motorcycles such as ZS125, JH125, LX125, etc. It is perfectly compatible with Honda CG125 original models, as well as CG125 derivative models from well-known brands such as Qianjiang, Longxin, and Zongshen, covering a wide range of mainstream models such as two wheeled motorcycles and three wheeled motorcycles.

2.2 Diversified cycling scenes

Mainly used in various scenarios such as daily commuting, outdoor riding, and cargo transportation of motorcycles, it also maintains stability in harsh environments such as low temperature, humidity, and bumps. The High Output 8-Pole Stator Coil for CG125 can provide stable 12V DC power supply for motorcycle headlights, horns, instruments and other electrical equipment, as well as precise ignition signals for the ignition system.

3. How to Replace GY6 Scooter Generator Stator

3.1 Prepare tools and accessories

Prepare cross and Phillips screwdrivers, socket wrenches, torque wrenches, pliers, and it is recommend to prepare additional cloths, sealant, and thread sealant (to assist in fixing the seal). Make sure that the CG125 8-Pole Stator Coil is brand new and undamaged, with intact wiring, and inspect related components like rectifiers and triggers.

3.2 Detach the old coil

Dismantle the motorcycle seat and engine side cover. Before disassembly, take photos to keep the position of the wiring for easy installation;

Find the position of the magnetic motor near the engine, disconnect the old coil and trigger plug, and avoid tearing the circuit;

Use a socket wrench or screwdriver to unscrew the fixing screws of the old coil (3 pieces) and trigger (2 pieces), and slowly remove the old coil;

Wipe the coil installation surface with a cloth to remove oil and debris.

3.3 Install a new coil

Take out the brand new High Output 8-Pole Stator Coil for CG125, confirm that the direction is consistent with the old coil, and smoothly place it in the installation position;

First, tighten the screws by hand to preliminarily fix them, and then use a torque wrench to tighten them to the specified torque;

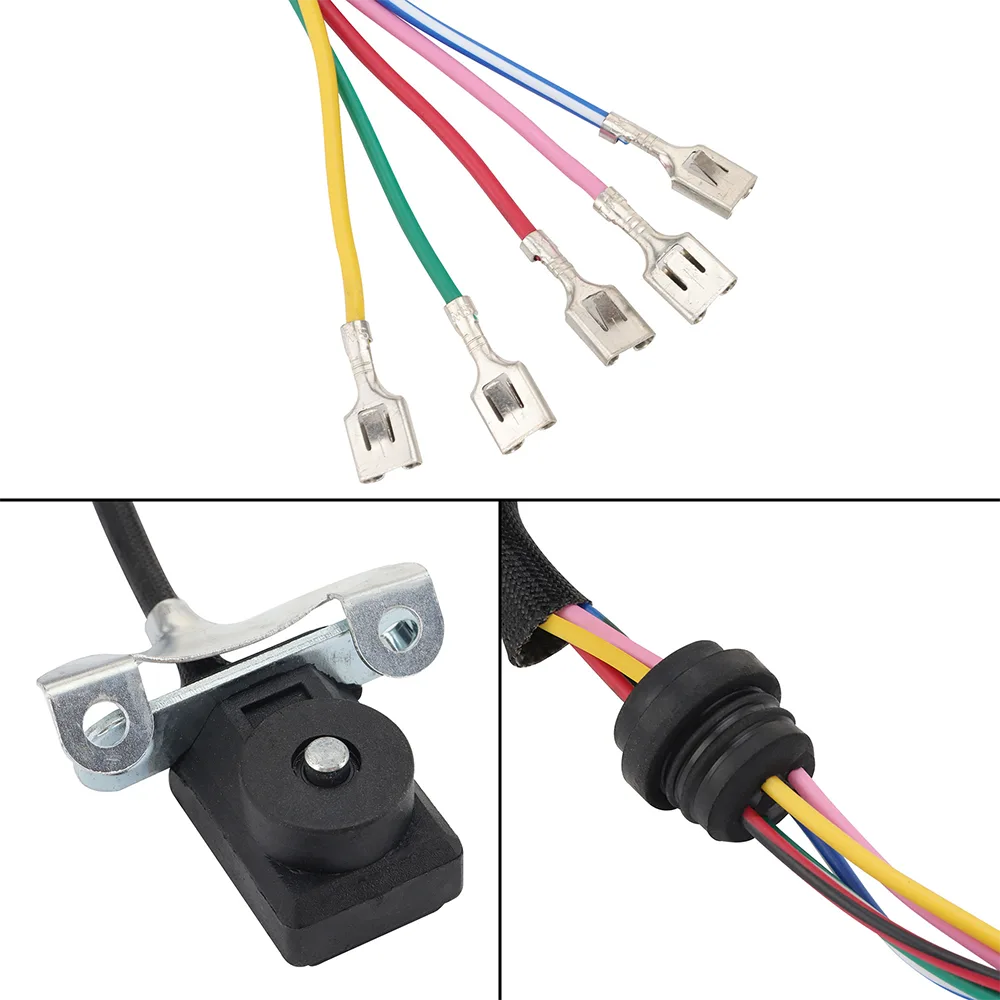

Insert the coil and trigger plug according to the circuit position during disassembly;

Check that the 8 Coil Magnet Generator Stator is installed properly, the wiring harness is straightened out, apply an appropriate amount of sealant to the side cover seal, reinstall the side cover and seat, and tighten all screws.

3.4 Check after installation

Reconnect the negative terminal of the battery and start the engine. Observe that the ignition is smooth and the idle speed is stable excluding any abnormalities. Use a multimeter to check whether the coil resistance and battery voltage are normal. Run for 1-2 minutes to confirm that the coil has no abnormal heating or noise, and that the electrical equipment is working properly to finish the replacement.

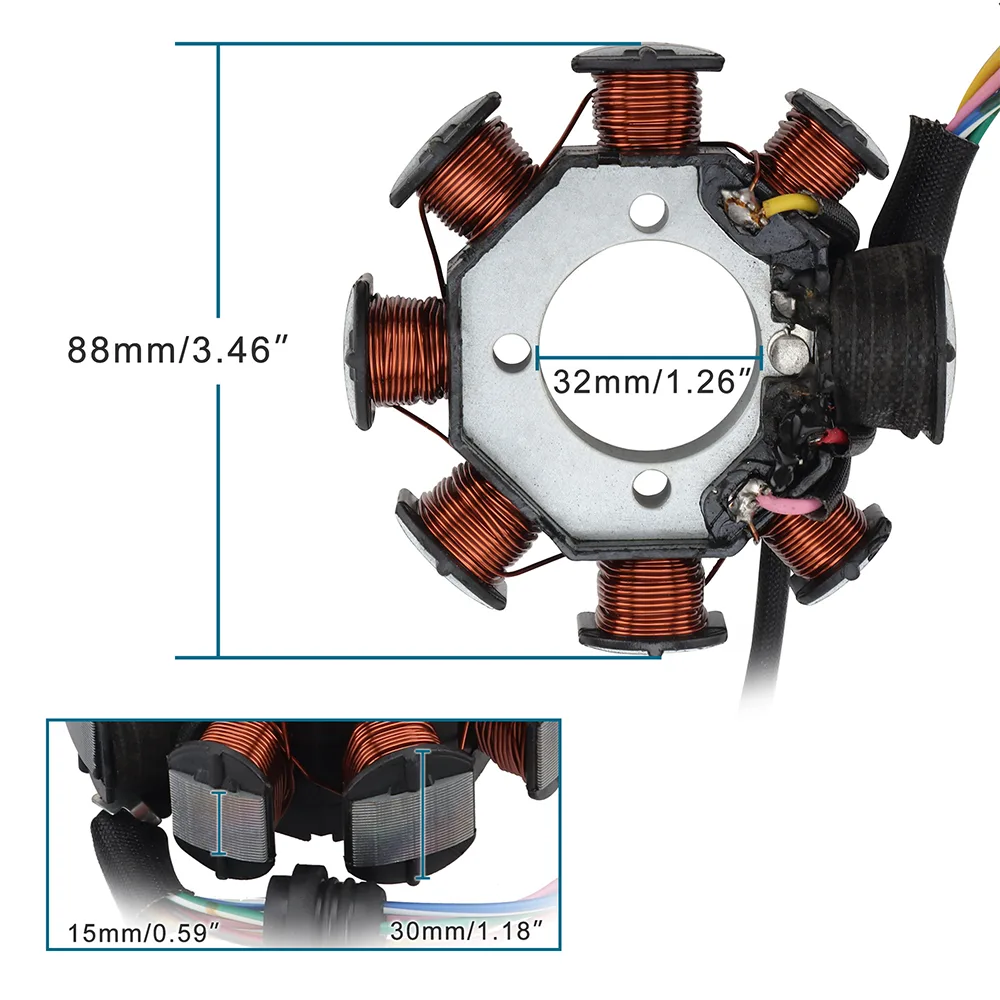

Product Parameter:

Why choose us as your supplier?

1. Source direct supply helps you cut costs

We sell directly from the factory with good pricing for bulk orders. Customization is available for materials, colors and logo printing.

2. Reliable quality guarantee & thoughtful after-sales support

All products are made to meet export criteria. Our service team replies in a timely manner and solves after-sales problems quickly, lowering your buying risks.

3. Steady supply and fast lead time

Well stocked raw materials and advanced production equipment allow most orders to be shipped in 30 days.

4. Over 10 years focused on motorcycle parts export

With deep knowledge of overseas markets and hot sale products, we can give you practical and professional purchasing suggestions.

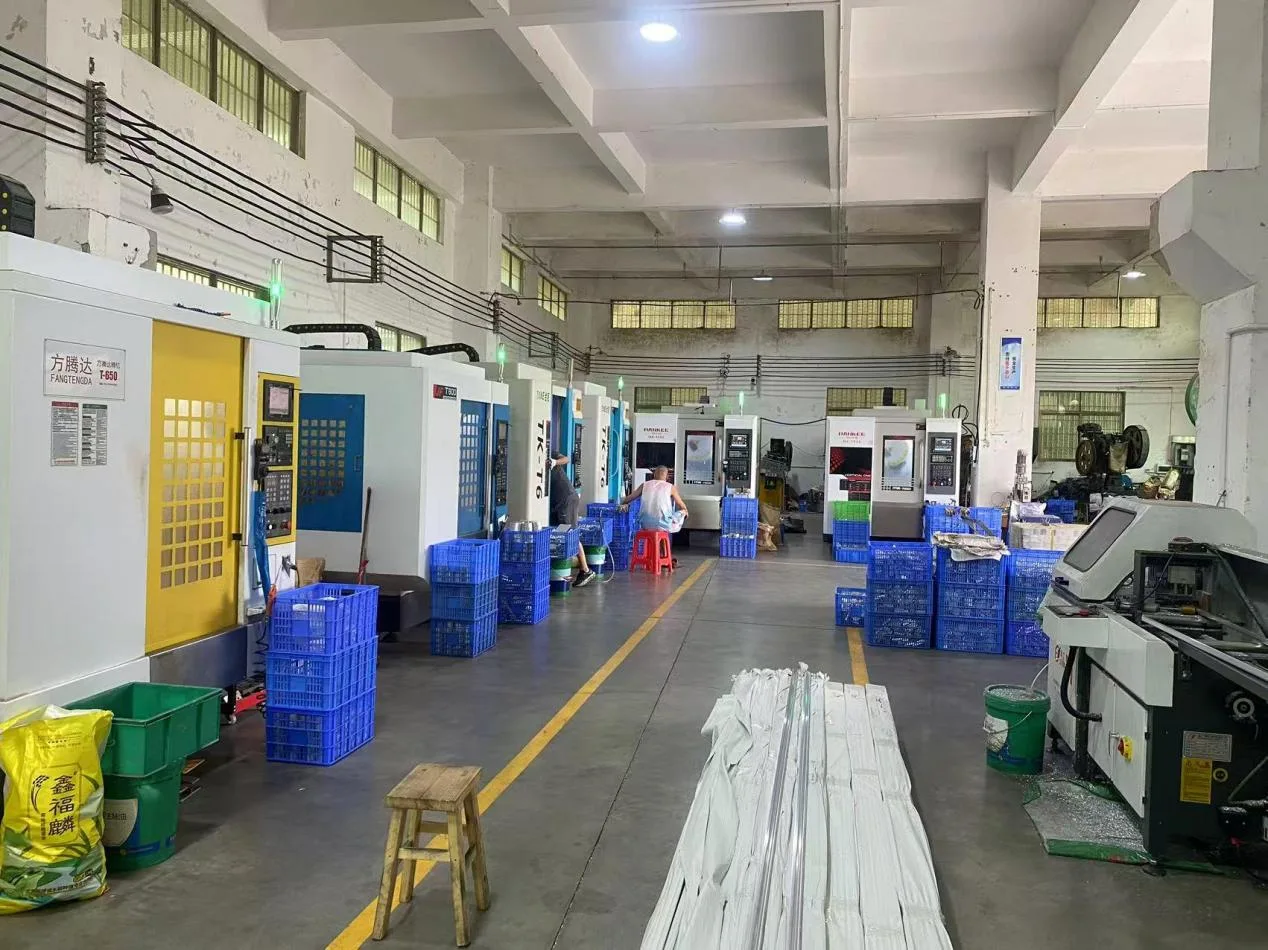

Our professional installation assembly line
