Max Trading is the professional motorcycle shaft transmission accessories supplier in China. The motorcycle shaft transmission accessories are the power transmission system connecting the engine and the rear wheels, consists of key accessories such as the transmission shaft and cardan joints. The function plays important role in the entire driving process of the motorcycle:

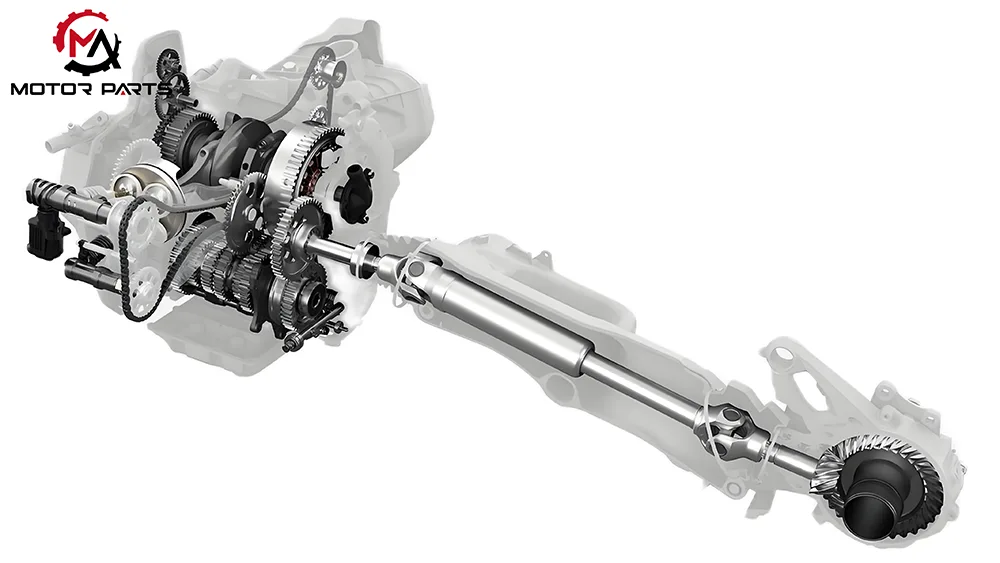

This is the main function of shaft transmission components. The torque generated by the engine operation is first transmitted to the transmission shaft after being adjusted by the gearbox; The transmission shaft, with its sturdy and rigid structure, stably transmits torque to the universal joint; Wanxiang Energy Saving adjusts the direction of power transmission flexibly based on the angle change between the gearbox and the rear wheels, ultimately transmitting power to the rear wheel reducer to drive the rear wheels to rotate, thereby achieving forward or backward movement of the motorcycle.
When a motorcycle is in motion, the road conditions are complex and varied, with common occurrences such as potholes and continuous bumps. When driving, it is often necessary to make sharp turns, make normal turns, or tilt the vehicle. These situations will cause the relative position and angle between the transmission output shaft and the rear wheel reducer input shaft to constantly change.
The design of the universal joint sold by Max Trading is very unique. It has a cross shaft that can rotate flexibly, and a ball cage joint that can accurately compensate for angles. With such a structure, the universal joint can adapt well no matter how the angle offset and displacement between the two axes change. This can ensure stable and efficient transmission of power, without interruption or impact in power transmission.
The shaft transmission accessories adopts a closed protective structure, which tightly wraps the transmission shaft and cardan joint, effectively isolating external pollutants such as dust, sediment, and rainwater from entering. This design greatly slows down the wear rate of accessoriess, significantly extends the overall service life of the transmission system, and provides reliable guarantees for the stable operation of the vehicle.

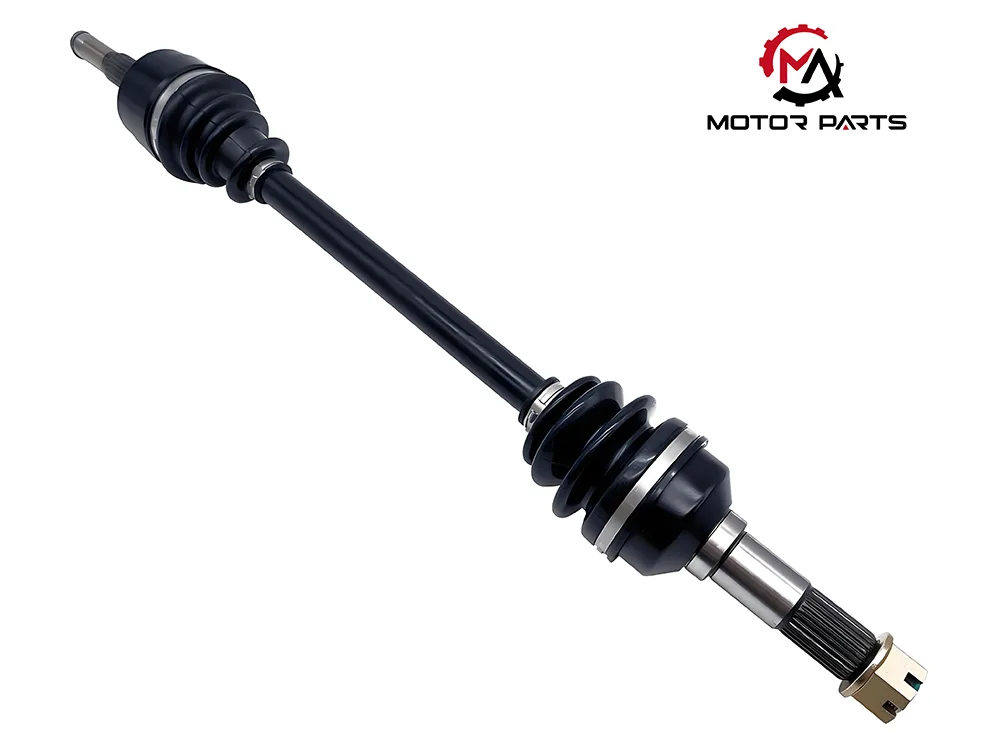

In motorcycle shaft transmission accessories, the types of motorcycle transmission shafts are relatively single, mainly based on the displacement, vehicle positioning, and power output characteristics of the motorcycle, showing differences in specifications, material selection, and structural design. Specifically, large displacement heavy-duty motorcycles are usually equipped with transmission shafts with larger diameters and thicker walls to cope with high torque conditions, and are often made of alloy steel or high-strength alloy materials, which are precision forged and heat-treated to enhance torsional strength; On the other hand, for small commuter motorcycles, in order to meet the requirements of lightweight design, their transmission shafts are mainly made of slim and lightweight structures, using lightweight alloy materials to ensure power transmission efficiency while effectively reducing the overall weight of the vehicle.
As the core hub of the axle transmission system, the motorcycle cardan joint shoulders the responsibility of compensating for the spatial angle and displacement changes between the transmission shaft and the connected parts when connecting the gearbox and rear wheel reducer, ensuring stable and efficient power transmission throughout the entire process.
At present, the mainstream types of cardan joints in the market are cross axis and cage type, which are the most common:

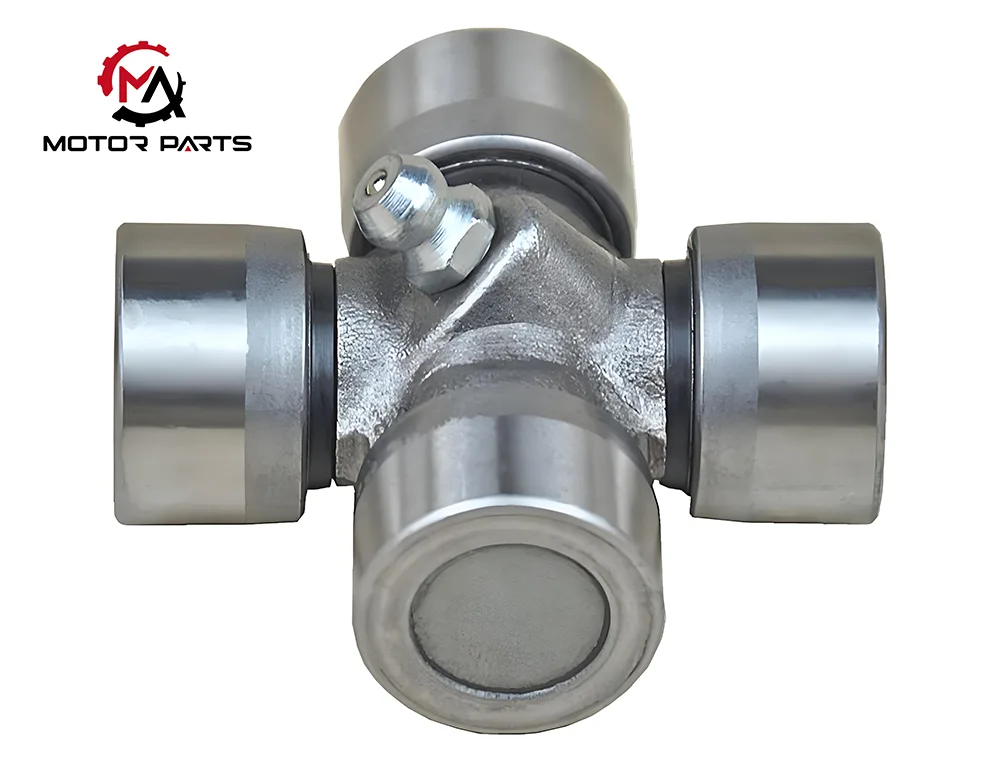

Motorcycle cross axis cardan joint: adopting classic mechanical structure design, consisting of a cross axis, cardan joint fork, and needle roller bearing. Through the flexible rotation of the cross axis, the angle adjustment between the cardan joint forks can be achieved, which is suitable for power transmission under general working conditions.
Motorcycle ball cage cardan joint: a precision transmission accessory composed of a star shaped sleeve, spherical shell, precision steel ball, and cage. This structure allows for stable transmission of power over a larger angle range, with excellent transmission efficiency and extremely low vibration and noise during operation, making it particularly suitable for high-performance motorcycles with strict requirements for transmission systems.
Since our establishment, Max Trading has always adhered to the corporate culture of "efficiency and pragmatism, quality first, and pursuit of excellence". We regard quality as the lifeline, efficiency as the driving force, and are committed to striving for excellence in every aspect. Relying on advanced equipment and technology, we focus on the research and production of motorcycle components, striving to provide smarter, more efficient, and more environmentally friendly solutions for the motorcycle industry through continuous innovation.
Our product line has a wide range of categories, and we always take the market as the guide, customer as the center, optimize product structure, and improve product performance and quality.
