Max trading keep pace with the development of the times and constantly innovate and upgradethe system of motorcycle crank connecting. As a Chinese supplier of motorcycle crankshafts, connecting rods, and other products, Max Trading has unique insights into motorcycle crankshaft connecting systems.
The crank connecting system plays a role as a "power converter" in the motorcycle engine system, mainly by improving mechanics to counteract the inertial forces and vibrations generated during operation, ensuring smooth and reliable power output. And support and balance, as its auxiliary functions, are equally crucial.

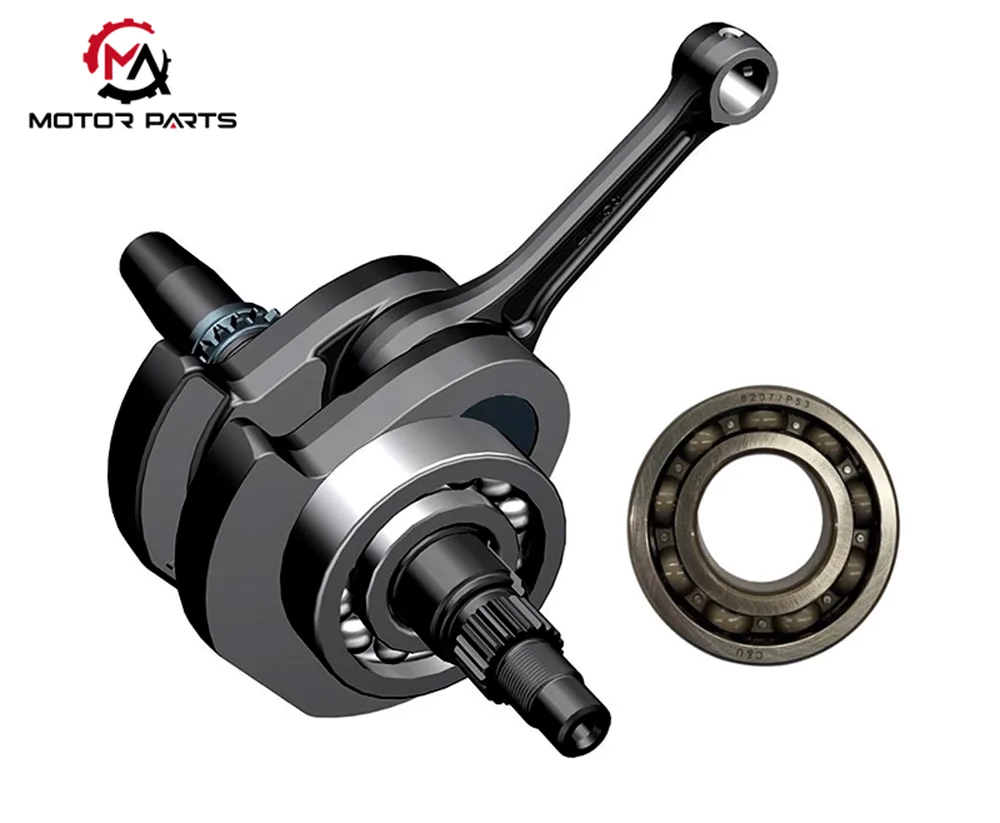

The motorcycle crank connecting rod system consists of three main components: the crank assembly, the connecting rod assembly, and the auxiliary device. In the crankshaft assembly, the crankshaft, crankshaft pin, and balance block are the main components that rotate the system. The front and rear ends of the motorcycle crankshaft are rigidly supported on the bearing seat of the engine housing through high-precision rolling bearings or sliding bearings, ensuring stability during rotation.

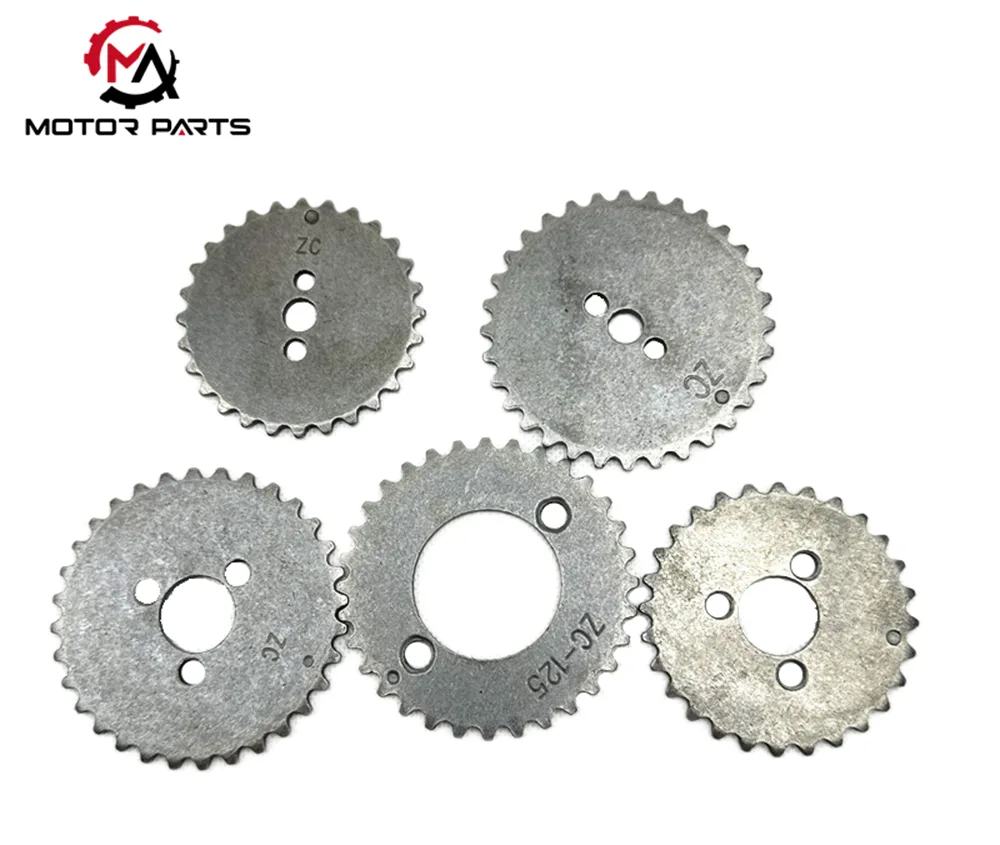

The front end of the motorcycle crankshaft is usually equipped with timing gears (controlling the valve train) or clutches (transmitting power to the transmission system) through key connections or flange structures, while the rear end is Installed with a flywheel (storing kinetic energy, stabilizing speed) or a magnetic motor (providing ignition energy).

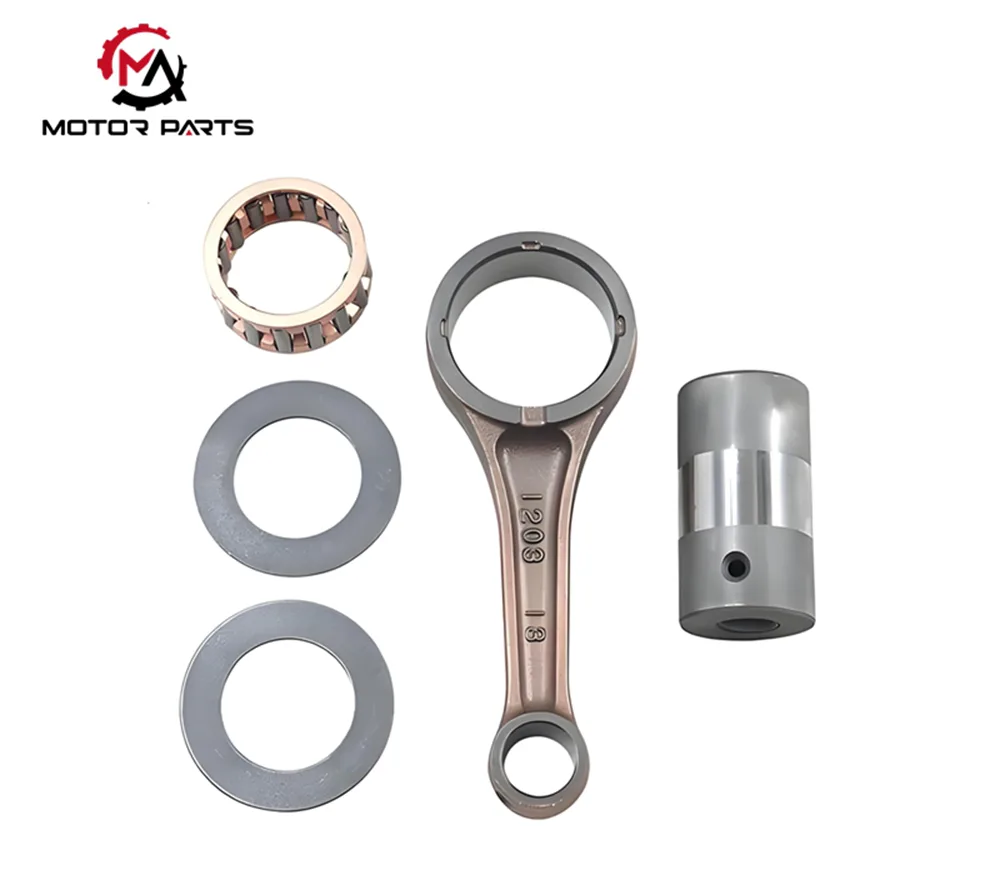

The motorcycle crank arms, symmetrically distributed on both sides, are rigidly connected by crank pins to form a complete frame, which constitutes the key structure for transmitting torque. To remove the centrifugal force interference generated during the rotation process, the counterweight on the motorcycle crank arm needs to undergo strict dynamic balance calibration, with an accuracy controlled within ± 1g · cm, which can effectively counteract more than 90% of the rotational inertia force and significantly reduce the overall vibration of the machine. The motorcycle connecting rod big end is flexibly connected to the crank pin through a sectional structure, and wear-resistant bearing shells are embedded inside to form a sliding friction pair, which can withstand periodic impact loads; The small end of the motorcycle connecting rod is hinged to the piston through a piston pin, using a fully floating or semi floating connection design to ensure flexible swinging of the piston during reciprocating motion. The connecting rod body is made of high-strength forged steel with an I-shaped or box shaped cross-section, which ensures sufficient structural strength and minimizes weight to the greatest extent possible. During the transmission of power, it can efficiently convert the linear thrust of the motorcycle piston into the rotational torque of the crankshaft. The auxiliary devices such as bearings, oil seals, and lubrication channels are important supports to ensure the long-term reliable operation of the system. The motorcycle bearing shell is made of high wear-resistant alloy materials (such as Babbitt alloy and copper lead alloy), and the friction loss between the crank pin and the connecting rod big end is reduced through oil film lubrication; The motorcycle oil seal is installed at the joint between the front and rear ends of the crankshaft and the housing, which can effectively prevent lubricating oil leakage and isolate external dust and impurities. The lubrication channels throughout the crankshaft are connected to the main oil passage of the motorcycle engine, which can accurately deliver pressure lubricating oil to various shaft necks and bearing parts, forming continuous cooling and lubrication protection, significantly extending the service life of the system.
The core function of the crank connecting rod system relies on the precise mutual conversion between linear motion and rotational motion. When the motorcycle engine spark plug triggers ignition, the high-pressure gas (peak pressure can reach 8-12 MPa) generated by the instantaneous detonation of the fuel mixture will form a strong thrust, driving the motorcycle piston to make reciprocating linear motion along the cylinder axis. This force is transmitted to the small end of the motorcycle connecting rod through the piston pin, and then transmitted to the large end of the connecting rod through the connecting rod body, ultimately driving the crank pin to rotate around the center of the crankshaft, resulting in continuous torque output from the crankshaft to drive mechanical operation. During the intake, compression, and exhaust processes, the crankshaft rotates through the connecting rod and then drives the piston to complete the corresponding reciprocating motion, forming a complete working cycle. In this process of motion conversion, various forces such as inertial force, centrifugal force, and gas pressure are generated, which require very high structural strength of the system.The motorcycle crankshaft is the main component of the connecting system. Depending on the number of cylinders in the motorcycle engine, the crankshaft can be divided into single cylinder crankshaft, dual cylinder crankshaft, and multi cylinder crankshaft. The single cylinder crankshaft structure is simple, containing only two left and right crank arms and one crank pin, with a compact overall structure and lighter weight; The cylinder crankshaft is designed with different crank angles based on the motorcycle cylinder arrangement to balance the power output; The multi cylinder crankshaft is equipped with a radial balance block, which is arranged in reverse with the connecting rod journal to offset inertial forces and suppress oscillations. The motorcycle crankshaft is forged from 42CrMo alloy steel and undergoes heat treatment to make sure ample strength and wear resistance. Modern motorcycle engine crankshafts adopt a hollow structure design, reducing the moment of inertance by 15% and increasing the speed with a carbon fiber flywheel.

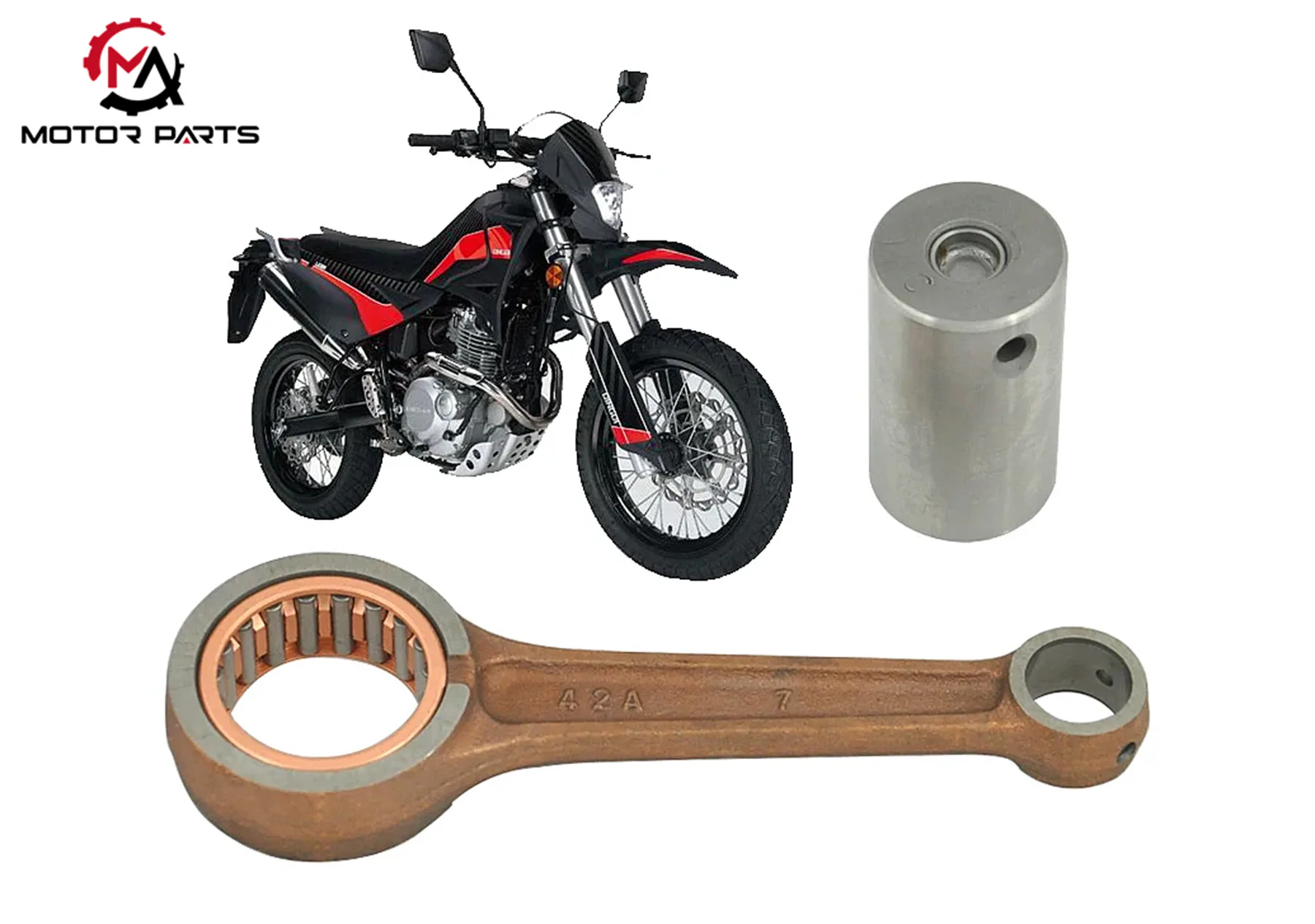

The connecting rod needs to transmit a huge force during high-speed reciprocating motion. The connecting rod body is made of chrome molybdenum steel material, with an I-shaped cross-section designed to reduce weight to the maximum extent possible while ensuring strength. The connecting rod big end split structure is matched with copper lead alloy bearing shells for easy installation and maintenance. The motorcycle joint surface uses positioning pins or bolts to ensure precise assembly. The connecting rod bearing adopts thin-walled bearing shells, and the inner surface is sprayed with wear-resistant alloy layer, which cut down friction loss and improves the ability to withstand impact. Balance technology, as an auxiliary function of the crank connecting system, is the key to ensuring smooth operation of the power system. Single cylinder motorcycle engines experience high vibration and power fluctuations, which result in incomplete balance. Balance blocks are often installed on the crankshaft or an external balance shaft mechanism is used. The balance shaft is linked to the crankshaft through gears and rotates in opposite directions to counteract inertial forces, significantly reducing engine vibration. Multi cylinder motorcycle engines counteract some inertial forces by symmetrically arranging them. For example, inline twin cylinder engines often use 360 ° or 180 ° crank phases, while V-shaped twin cylinder engines often use a 90 ° angle design.
Max trading’s variable compression ratio technology of the crank connecting system optimizes the compression ratio under different working conditions by changing the distance between the crank pin and the crankshaft center; The application of lightweight materials significantly cuts down the inertial mass of the system, reforms engine speed and responsiveness; Precision machining technology ensures the dimensional accuracy and surface quality of components, reducing mechanical wear and tear. Max Trading introduces the working principle and structural characteristics of the crank connecting system to motorcycle enthusiasts, which helps to deepen our understanding of the operating mechanism of motorcycle engines and provides professional guidance for engine maintenance and modification. Let's enjoy the fun of motorcycle riding more scientifically together.
