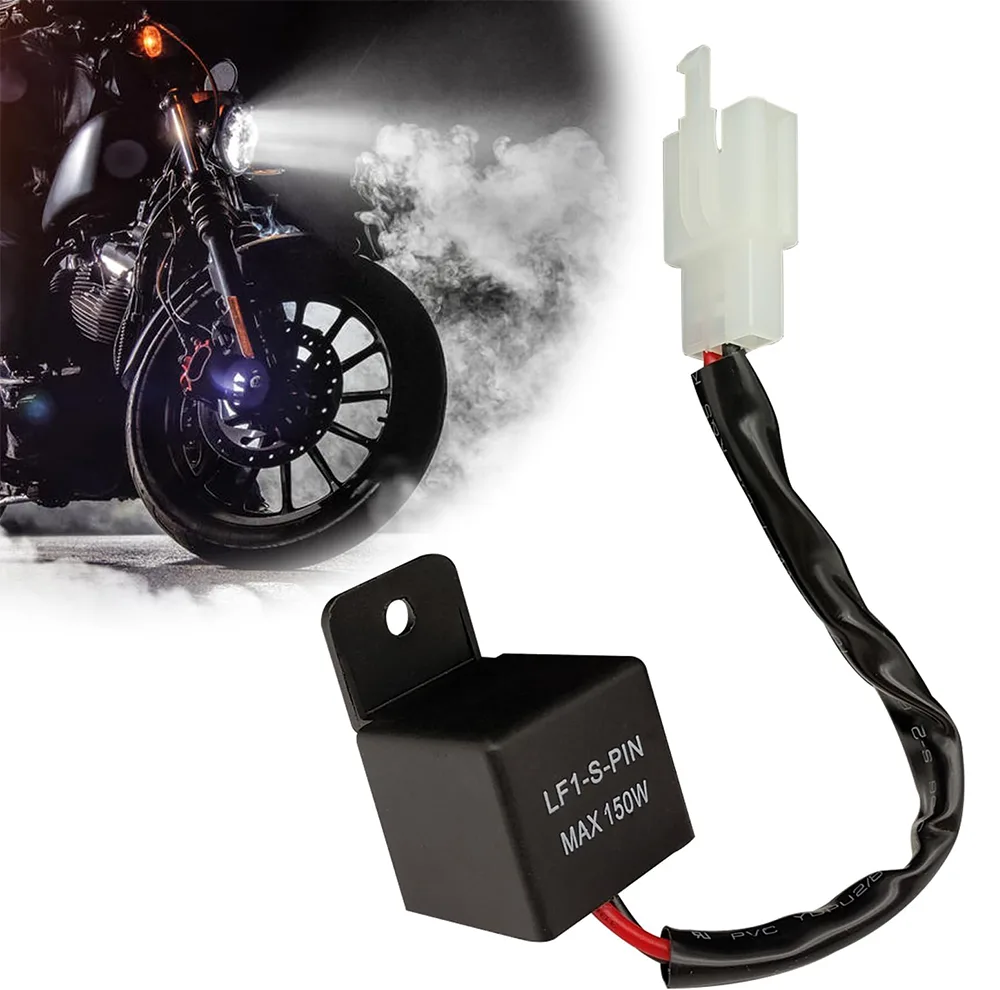

Motorcycle LED Adjustable Turn Signal Flasher

As a key component for improving driving safety, Max Trading's Motorcycle LED Adjustable Turn Signal Flasher solves the flashing problem after modifying with LED lights in China.

Our product is compatible with 1-5W low-power light sets. Its unique "adjustable frequency" design ensures that the turn signals always comply with traffic regulations.

It uses a built-in adjustable circuit, which not only flexibly adapts to different power LED light sets but also allows users to precisely adjust the standard flashing frequency of 1-2 times per second according to personalized modification needs.

Core Technology and Functional Expansion

1. Overcoming the "Adaptation Problem": Digital Frequency Control

Traditional thermal flashers rely on the current change of 21W halogen lamps, while LED power is only 1-5W.

Constant Flashing: The Motorcycle LED Adjustable Turn Signal Flasher has a built-in electronic chip that precisely controls the current switch, preventing abnormal flashing caused by low power.

Dynamic Adjustment: Equipped with an adjustment knob on the side or bottom, it easily handles different numbers of LED bulbs.

2. Circuit Integration and Safety Logic

Stable Output: One end connects to the ignition switch to obtain a stable voltage, and the other end responds to the turn signal switch command, outputting periodic on-off current through the built-in adjustable circuit.

Audible and Visual Alarm System: Some models integrate a high-decibel buzzer, providing sound feedback when turning, preventing drivers from forgetting to turn off the turn signals and effectively reducing the risk of accidents.

Technical Highlights and Control Principles

1. MCU Intelligent Control System

Precise Algorithm: The chip replaces the old heating element, solving the problem of unstable flashing frequency caused by changes in ambient temperature.

Transistor Switching:  Utilizes power transistors for contactless switching, resulting in a lifespan more than 5 times longer than traditional mechanical flashers.

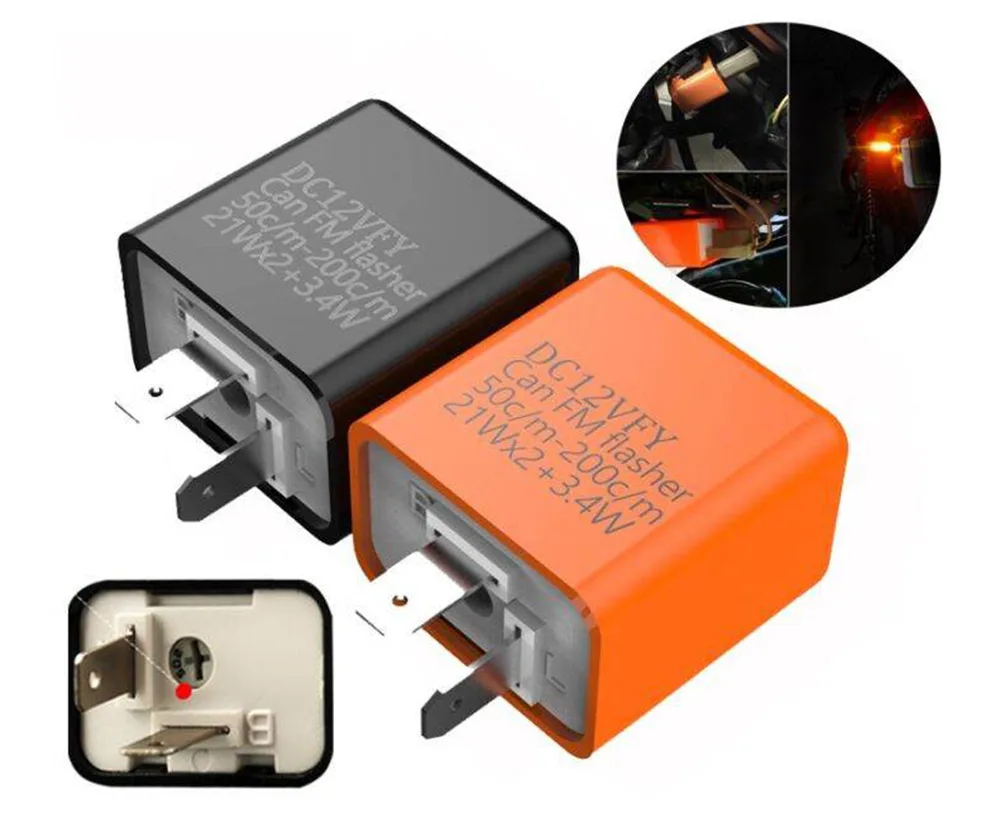

2. Potentiometer Adjustment Logic: Deeply Customized Flashing Rhythm

Adjustment Core: By rotating the potentiometer, the resistance value in the circuit is changed, directly influencing the frequency of the internal oscillator of the chip (similar to the RC adjustment principle of the classic 555 timer circuit).

Wide Range: Supports high-sensitivity adjustment from 0.5 times/second to 3 times/second, perfectly adapting to various personalized lighting needs.

3. Robust Physical Protection

Flame-Retardant Casing: Made of industrial-grade ABS material, possessing excellent impact resistance and self-extinguishing properties.

Waterproof Performance: IPX5 rated protection, effectively preventing rainwater and road splashes from corroding the internal circuitry.

Installation Tip:

1. Turning counterclockwise increases speed, while turning clockwise decreases speed.

2. When installing, be sure to align the feet properly. If the feet are misaligned, the function of the flasher cannot be achieved.

3. If the flasher is replaced and all four lights are on together, you need to unplug the turn signal indicator on the dashboard.

4. Pin B is the input, pin L is the output

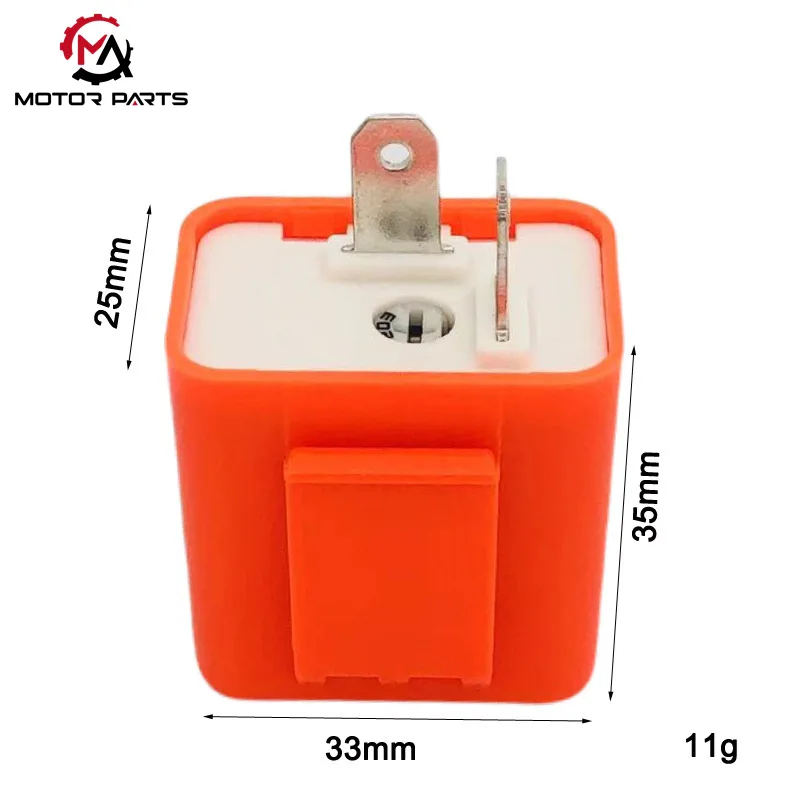

Product Parameter:

Wondering what improvements Max Trading has made to its latest flashers?

We’ve optimized three core aspects to deliver better stability, broader compatibility, and stronger environmental adaptability, tailored to meet the diverse needs of global motorcycle and vehicle users.

Frequency stability with intelligent controlWe’ve adopted MCU intelligent control technology to lock the flash frequency at a precise 80 ± 10 times per minute. This design effectively prevents abnormal frequency fluctuations even when LED bulbs are used alongside halogen bulbs. The product fully complies with mainstream safety standards around the world, eliminating safety risks caused by unstable flashing.

Wide voltage & multi-bulb compatibilityThe upgraded flashers support 12V/24V wide voltage input, working seamlessly with various turn signal bulb types including LED, halogen, and xenon. There’s no need to install additional resistors, which perfectly solves the "flicker" issue common in modified vehicles. What’s more, these flashers are compatible with over 95% of mainstream motorcycle brands on the market, reducing the hassle of model matching.

Rugged design for harsh environmentsThe shell is crafted from a durable ABS+PC composite material. Rigorous testing proves its reliability: it runs without faults through high-temperature cycles ranging from -30℃ to 85℃. With an IPX6 waterproof rating, it can handle heavy rain without any issues. It also withstands 2000Hz high-frequency vibration in tests, making it ideal for complex driving scenarios like mountain roads and off-road adventures.

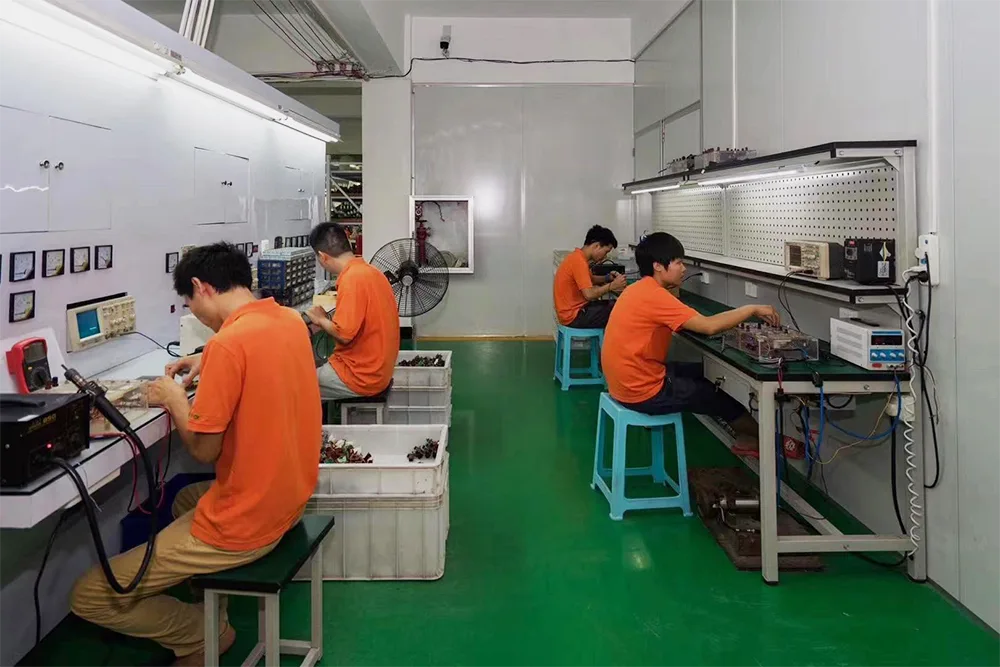

Product assembly workshop
