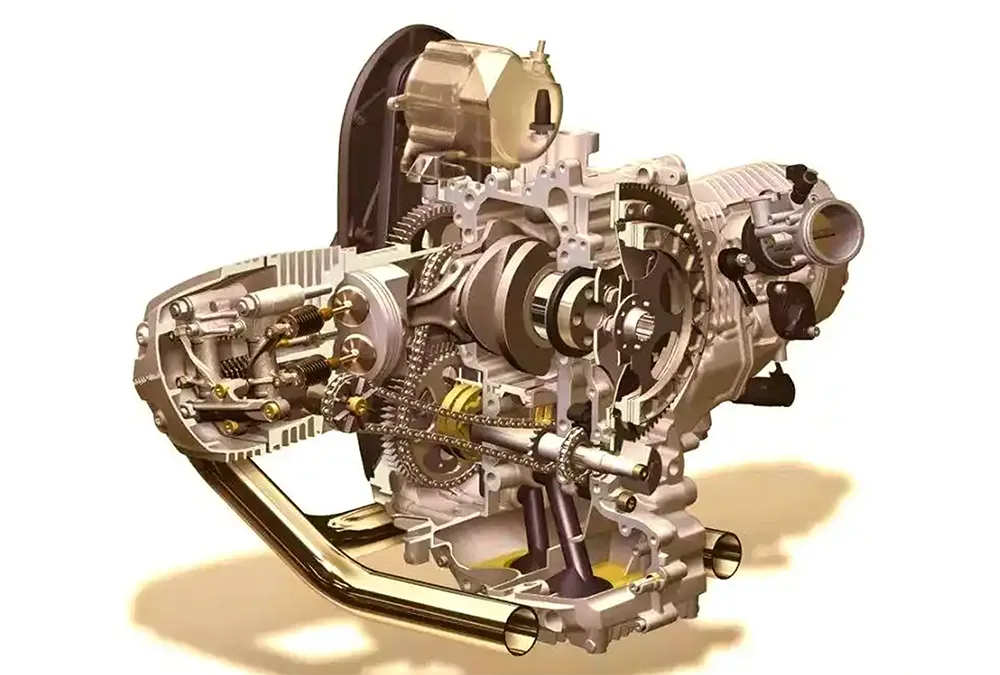

The exploration of motorcycle power transmission and gear shifting system is an important part of understanding the operating mechanism of motorcycles. Although the engine provides power for the vehicle, the transmission and gearbox systems are equally crucial. Power transmission is the key to achieving the transmission of engine power to the rear wheels, enabling the engine to perform at its best within different speed ranges. This not only affects the acceleration performance and shifting ability of the vehicle, but also relates to the smoothness of riding and the improvement of driving performance. A set of excellent transmission and gearbox systems can effectively utilize engine power, thereby enabling the vehicle to perform at its best.
The transmission system plays a big role in motorcycles, responsible for efficiently transmitting the power generated by the engine to the rear wheels, thereby driving the vehicle to accelerate. The transmission system efficiently transmits torque through mechanical components, regulates power output, and is the core of vehicle acceleration.
The design of the transmission system is very complex, with the aim of transmitting the engine's torque to the rear wheels through different means. Different transmission methods are suitable for different types of motorcycles to meet various performance requirements.

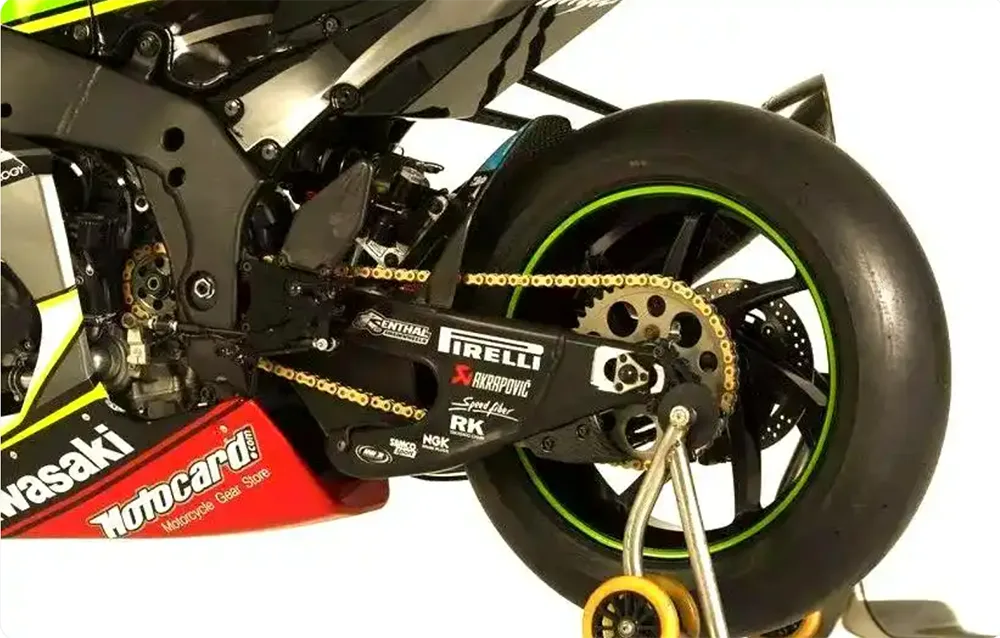

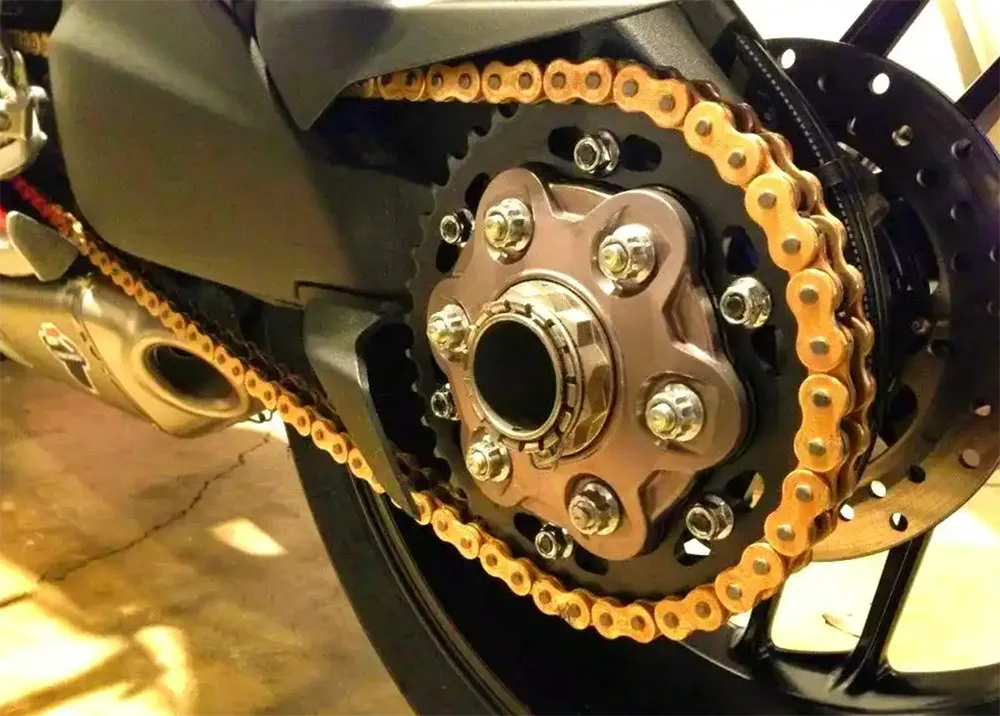

► Chain and gear transmission system
Among the power transmission schemes of many motorcycles, the chain and sprocket transmission system has become the preferred choice for many motorcycles due to the simple and efficient characteristics. It has high transmission efficiency and overall light weight, especially suitable for vehicle types that require high torque. However, it also has certain limitations, such as wear and noise during operation. During the process of transmitting engine power to the rear wheels, torque amplification and reduction ratio adjustment can be achieved by adjusting the tooth ratio of the front and rear gears.

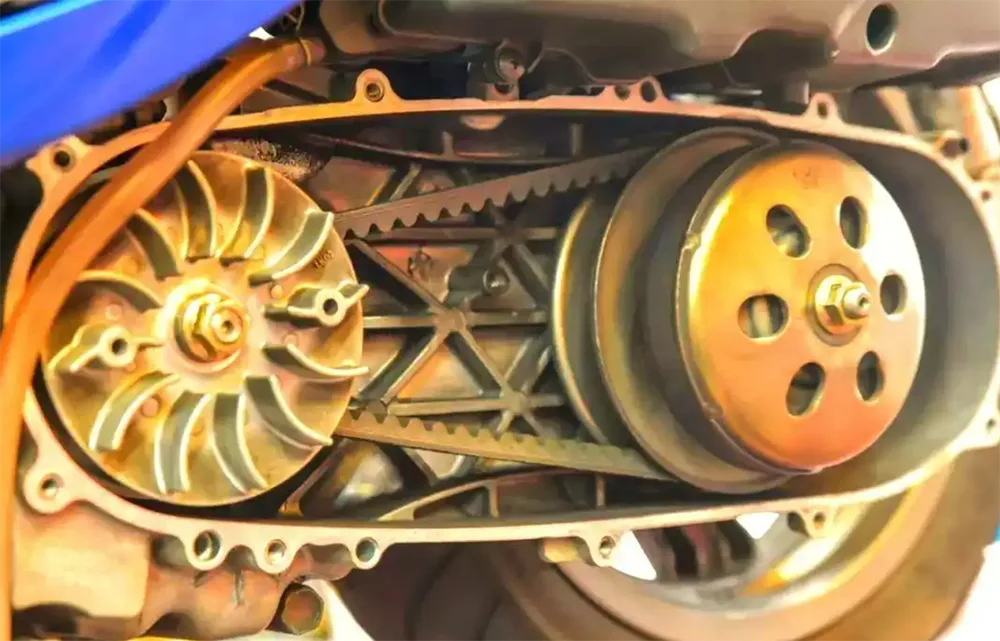

► Belt and Pulley disk transmission system
The combination of a belt and a pulley can effectively transmit power and also allow for variable speed. Used to transmit power and speed changes, it can ensure stable power transmission, but its efficiency is slightly lower than that of a chain system. This transmission system is quite famous for its good flexibility and smooth power transmission.
► Gear belt transmission system
The toothed belt transmission system combines the principles of chains and toothed discs, making it an ideal choice for engine timing mechanisms. Adopting the principle of chain and gear combination, providing smooth power transmission, suitable for engine timing mechanism applications.
Compared to other things, using an axle transmission system on motorcycles isn't all that common, but that doesn't take away from its good points. You don't see it used as much on motorcycles, but it shifts really smoothly, there's no chain rattling, and you don't have to maintain it as often.
► The function and working principle of clutch
The clutch is an indispensable part of the transmission system, playing a crucial role in power transmission and ensuring a smooth start of the vehicle. Wet and dry designs have their own advantages and disadvantages. Whether it's a scooter or a gearbox, a clutch is indispensable as it allows the engine to continue running when the vehicle comes to a stop, avoiding stalling.
