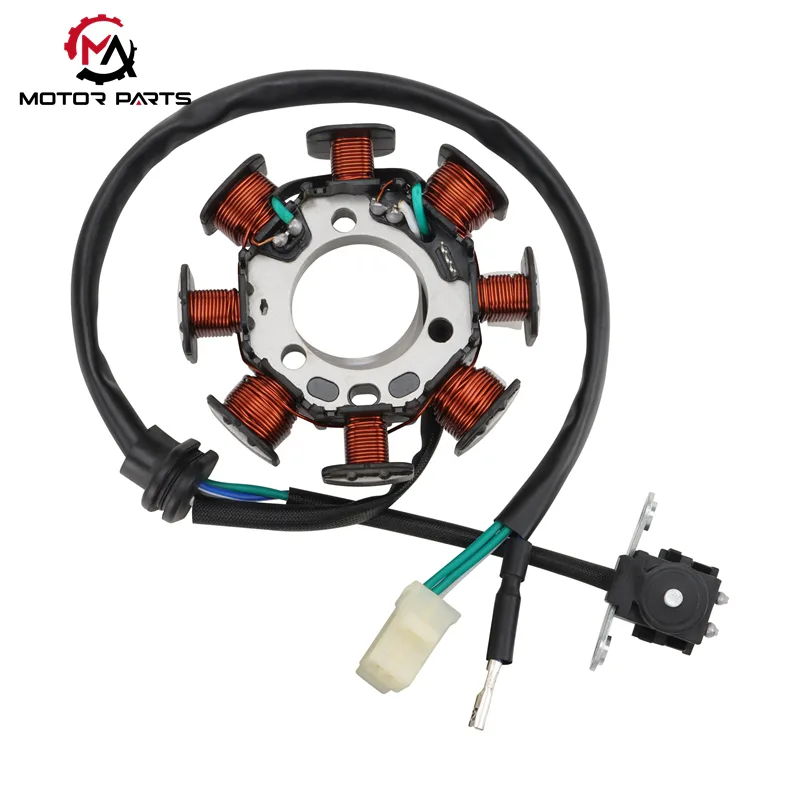

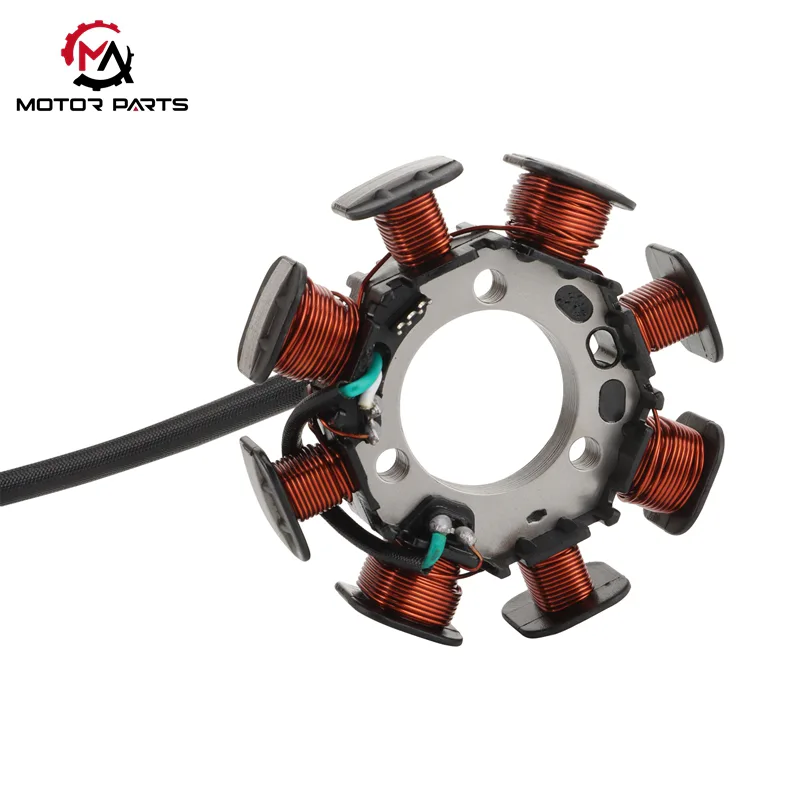

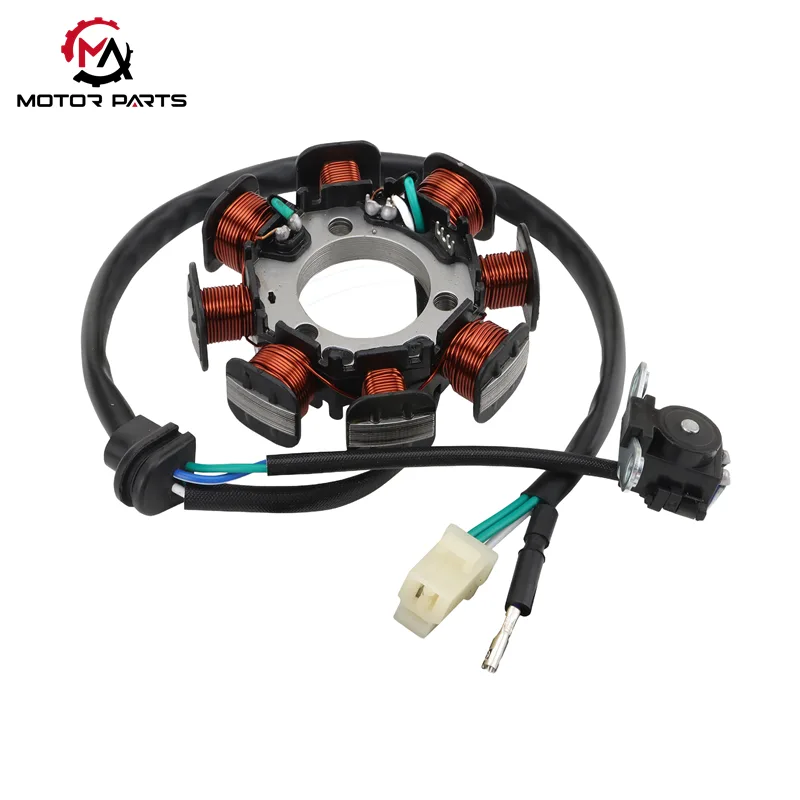

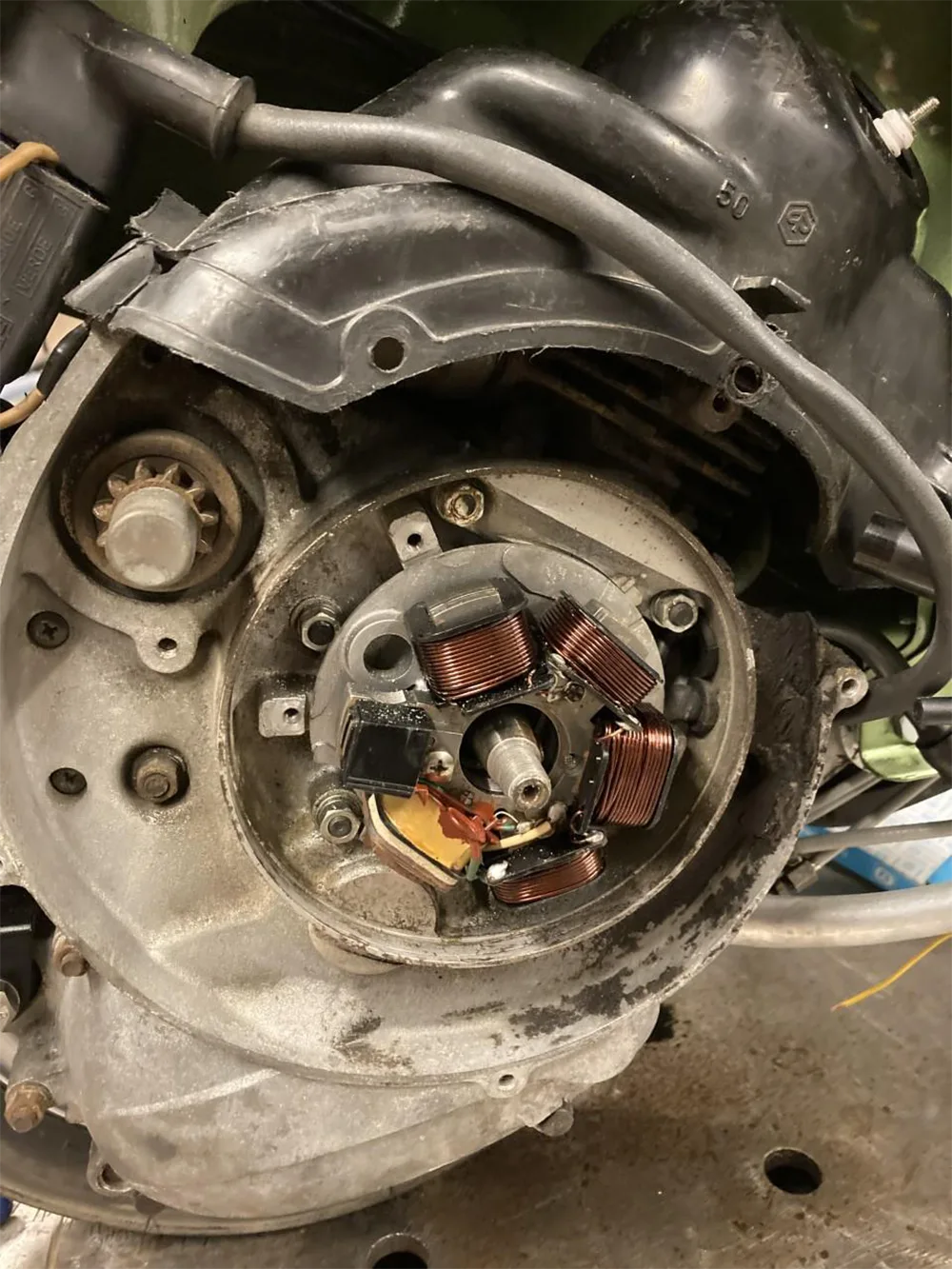

CRF150F Motorcycle Magneto Coil

The CRF150F Motorcycle Magneto Coil is a classic entry-level off-road motorcycle, and its single-phase 8-pole magneto coil serves as the core of the vehicle’s power system. Manufactured by Max Trading, this precision component is not only the power source for the motorcycle’s entire electrical system but also a key guarantee for the stable operation of the vehicle in harsh off-road conditions. It is engineered to meet the high durability and performance demands of off-road enthusiasts, with reliable waterproof, dustproof and wear-resistant properties.

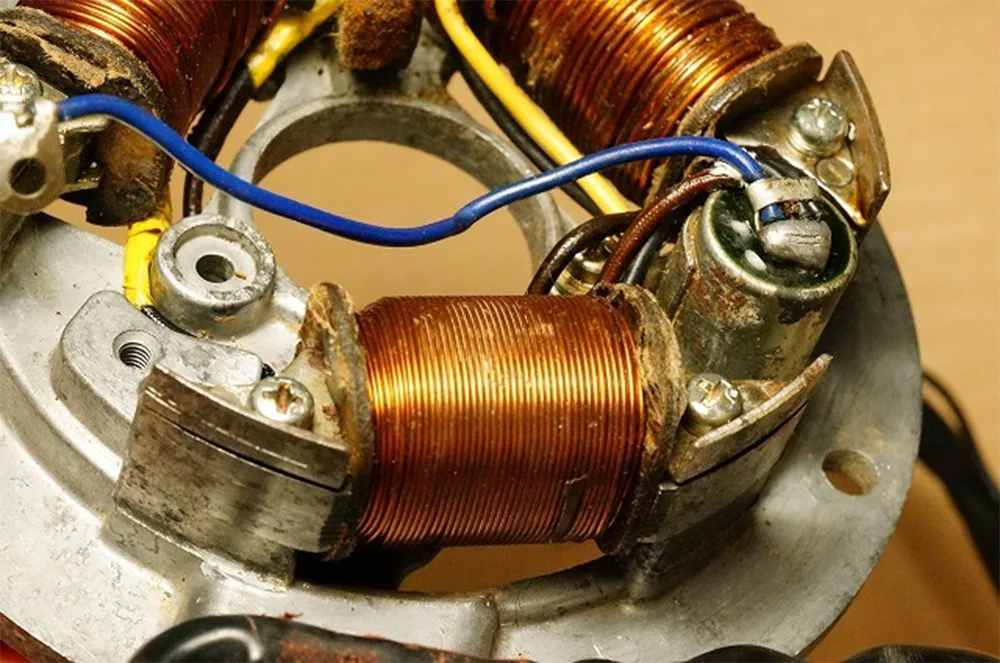

1. Structure Composition

The magneto coil is composed of three core modules: stator coil assembly, rotor magnetic steel component, and terminal module, each with strict material selection and structural design.

2. Working Principle

The operation of the CRF150F Motorcycle Magneto Coil is based on Faraday's law of electromagnetic induction. When the engine runs, the crankshaft drives the rotor magnet to rotate at high speed, forming a dynamic alternating magnetic field. The stator coil group cuts the magnetic field lines to generate alternating current, which is then distributed to the ignition, charging, and timing systems to realize the coordinated work of the motorcycle’s electrical components.

2.1 Ignition System Working Principle

Voltage Boost Principle: The ignition coil acts as a step-up transformer. It uses the primary coil turns ratio (usually ≥ 1:100) to induce the low-voltage AC output by the magneto into an instant high-voltage current of over 20,000V.

Ignition Control Process: The high-voltage current is transmitted to the CDI (capacitor discharge ignition) igniter, where it is stored by the energy storage capacitor and then triggered to release.

Combustion Guarantee: The igniter accurately controls the spark plug to generate strong ignition sparks at the end of the engine’s compression stroke, ensuring the full combustion of the fuel mixture and providing sufficient power for the motorcycle.

2.2 Charging & Power Supply System Working Principle

AC/DC Conversion: The AC waveform output by the charging coil is complex, and needs to be converted into direct current through a rectifier regulator. Modern rectifiers adopt full-wave bridge rectifier circuits, combined with filter capacitors and smoothing circuits.

Stable Voltage Output: The converted pulsating direct current is optimized into a stable 12V output, which can realize two core functions:

Provide constant-voltage and current-limiting charging for 12V lead-acid/lithium battery packs;

Supply continuous power for on-board electrical equipment such as headlights (35W-55W), taillights, and instrument backlights.

2.3 Ignition Timing System Working Principle

Signal Collection: The trigger coil acts as the "time controller" of the magneto. It senses the special protrusions or slots on the rotor, converting the magnetic flux change into electrical signals (realized through Hall sensors or electromagnetic induction principles).

Timing Control: After waveform shaping, the electrical signal accurately controls the trigger timing of the igniter. For the four-stroke engine of CRF150F, the trigger signal is usually sent when the crankshaft angle is 18°-22° before the piston reaches top dead center (BTDC). This timing ensures the optimal matching between ignition energy and piston movement, maximizing engine efficiency and power output.

3. Core Advantages for Off-Road Scenarios

Harsh Environment Adaptability: IP65 waterproof and dustproof rating, oil-resistant and wear-resistant wire harness, can cope with muddy, dusty, and bumpy off-road conditions.

Stable Power Output: High-precision magnetic field design and rectifier regulator system ensure stable 12V power supply, avoiding electrical component failure caused by voltage fluctuations.

Precise Ignition Timing: The cooperation between the trigger coil and rotor positioning structure ensures accurate ignition timing, improving fuel combustion efficiency and reducing power loss.

This modular integrated design integrates traditional independent ignition, charging, and triggering units by sharing the stator core and rotor magnetic field. Compared with the split structure, it reduces more than 30% of the connecting lines, significantly reducing the probability of failures caused by loose or damp lines in off-road bumpy environments. At the same time, it improves power generation efficiency by 15% -20%, providing power guarantee for reliable operation under extreme road conditions.

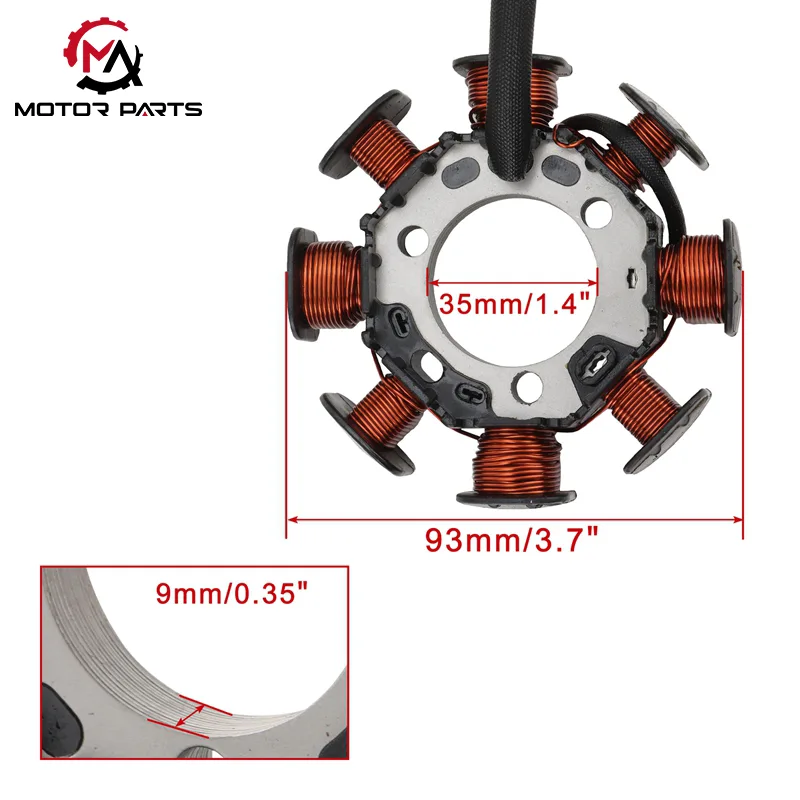

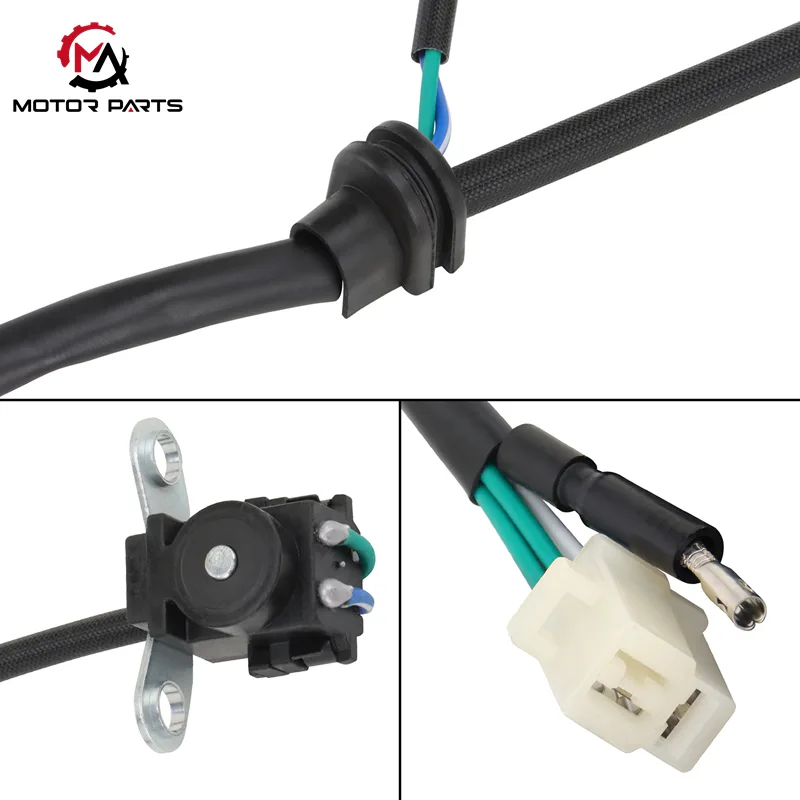

Product Parameter:

Max Trading has always been advancing with the times

Following the trend of motorcycle electrification and intelligence, Max Trading's CRF150F Motorcycle Magneto Coil has achieved technological innovation: some models are equipped with intelligent voltage stability control chips and fault warning modules. Through real-time dynamic monitoring systems, they accurately capture abnormal working conditions such as coil overload and overheating, trigger active protection mechanisms in milliseconds, effectively isolate fault conduction, and comprehensively protect the safety of the vehicle's electrical system. In the meantime, with outstanding compatibility design, it perfectly fits in motorcycle electronic fuel injection system (EFI) and intelligent dashboard, providing steady and reliable power solutions for new energy vehicles and high-end intelligent motorcycles, becoming the preferred component for intelligent upgrading in the industry.
