CG150 TITAN150 LED Motorcycle Speedmeter

Max trading factory take full account of the products' durability, model compatibility, and the ease of customer self-installation.We are a professional supplier specializing in the production of motorcycle parts, ensuring CG150 TITAN150 LED motorcycle speedometer both the quality of our products and after-sales service.

Introduction to core product features (crafted to factory standards, fully compatible with mass production supporting and individual retail needs)

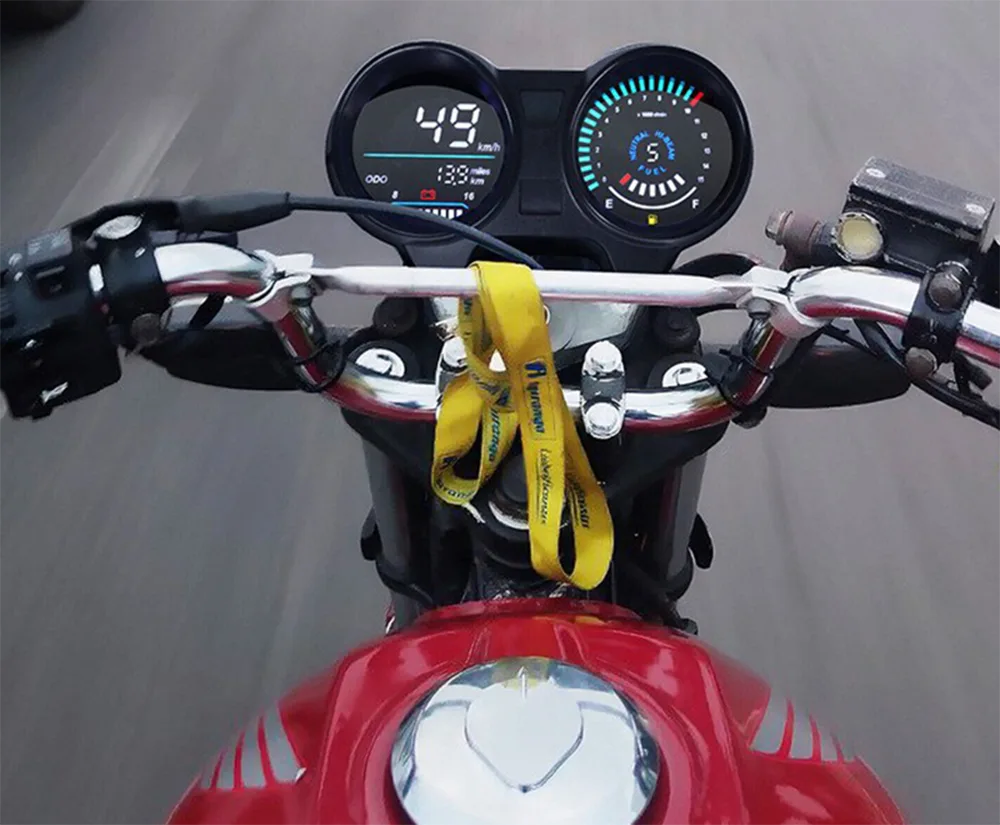

Appearance display: Balancing retro texture and clear readability, adapting to the overall vehicle style

In line with the retro aesthetic of CG150 and TITAN150 models, we have optimized the appearance of the speedmeter to meet factory mass production standards. The simple round dial combined with a frosted scratch-resistant shell finely fits both models, allowing for direct installation without modification.

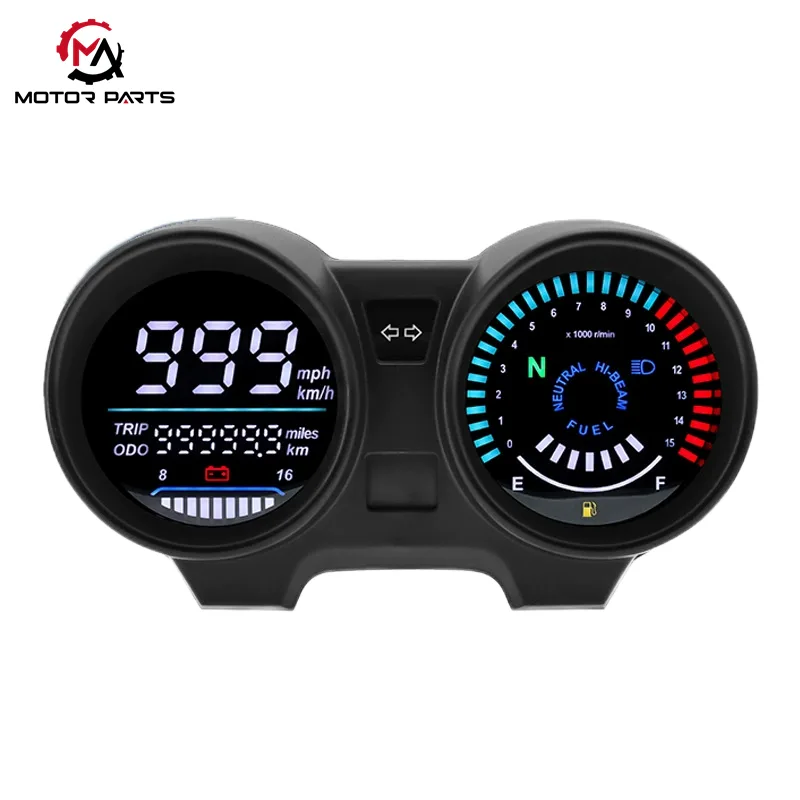

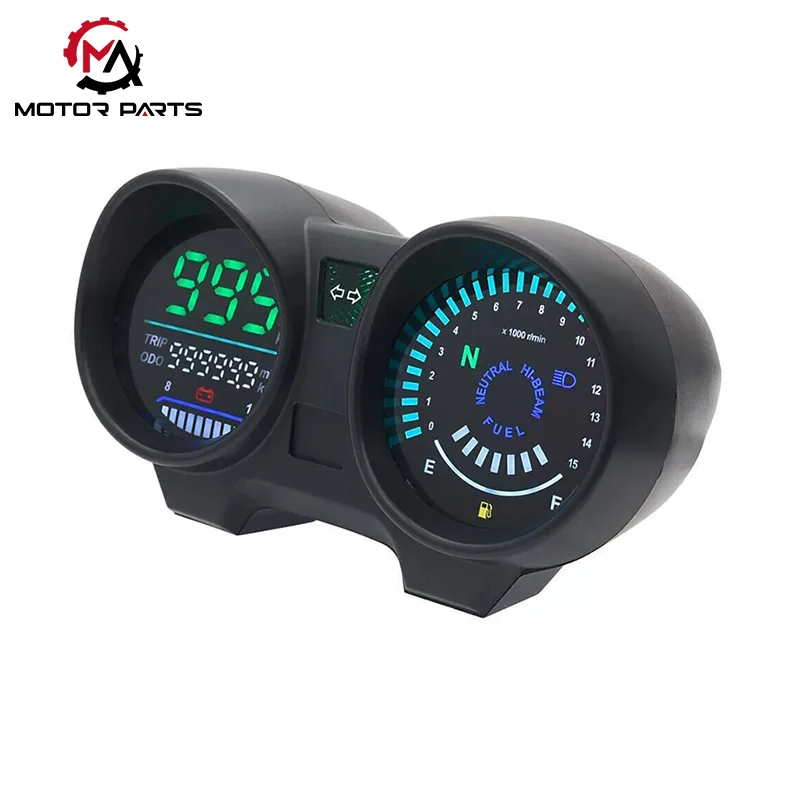

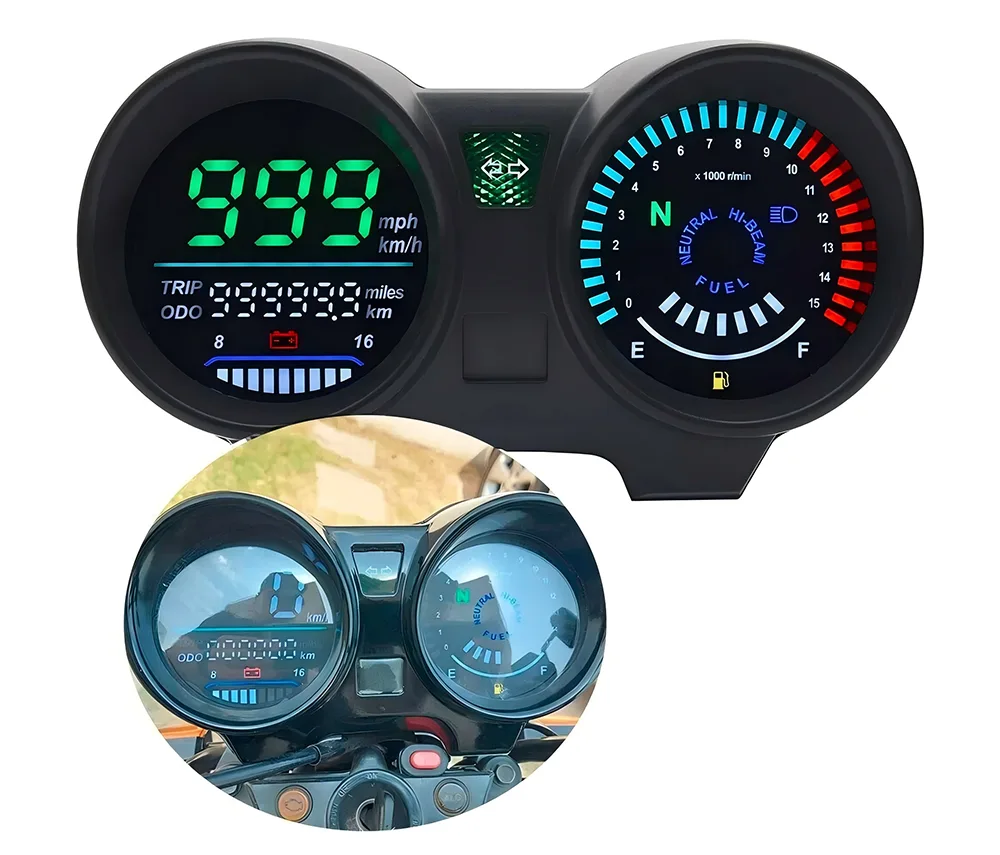

The CG150 TITAN150 LED motorcycle speedmeter indicate utilizes high -brightness LED beads, featuring a double display of pointers and liquid crystal, clearly presenting riding information. After factory debugging, it allows for convenient reading day and night, boasts low power consumption and a long lifespan (over 50,000 hours), and meets factory standards.

Waterproof performance: Industrial-grade waterproof and dustproof, suitable for multi-scenario cycling

For the complex environment of outdoor cycling, we produce CG150 TITAN150 LED motorcycle speedometer according to the IP65 industrial-grade waterproof and dustproof standard. From the shell, interfaces to internal components, we provide comprehensive protection to guarantee stable operation in harsh environments. This is the main advantage of our factory's supporting instruments.

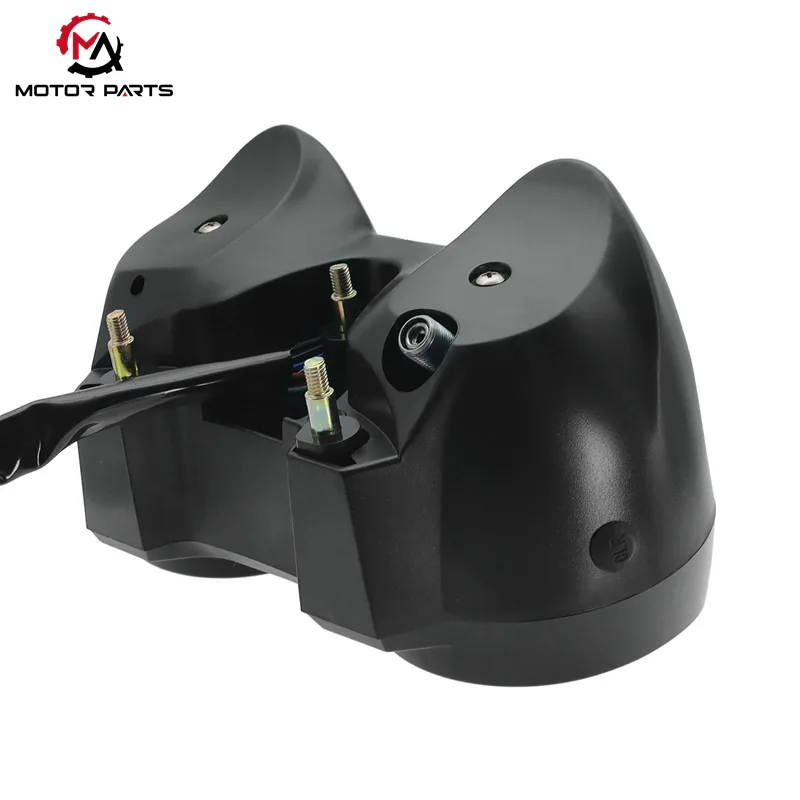

The CG150 TITAN150 LED motorcycle speedmeter housing uses a seamless one-piece molding process, with waterproof plugs and sealing rings for the connectors, and waterproof coating applied to the internal components. Each batch undergoes high-pressure water spray and immersion testing, ensuring it can bear rainstorms, car washes, and other scenarios, averting water ingress and prolonging its service life.

Model compatibility: Precise fit, no modification required, compatible with multiple homologous vehicle models

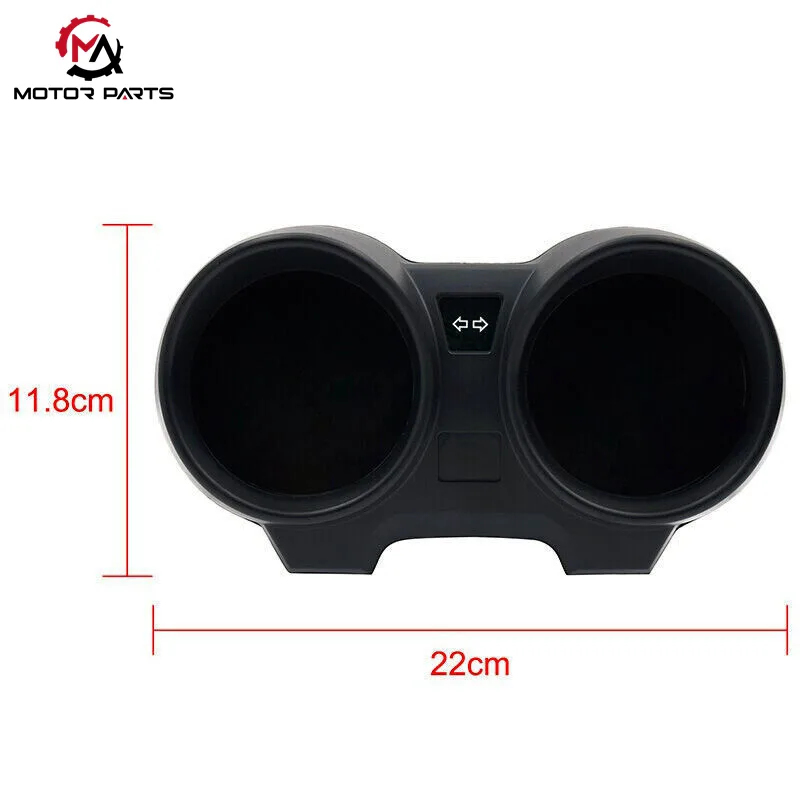

Directly supplied by the factory, CG150 TITAN150 LED motorcycle speedmeter precisely matches the original CG150 and TITAN 150 vehicle interfaces and installation dimensions. It is molded and produced strictly according to the original vehicle parameters, achieving plug-and-play functionality without the need for drilling or wire modification.

Compatible with the entire series of CG150 and TITAN 150 models, as well as homologous compatible models, with reasonable compatibility margins reserved to ensure installation compatibility; CG150 TITAN150 LED motorcycle speedmeter voltage is compatible with 12V motorcycle universal specifications, perfectly matching the original vehicle circuit. Each batch of products undergoes strict factory circuit testing, ensuring safe and reliable use.

Steps for customers to install CG150 TITAN150 LED motorcycle speedmeter (factory simplified design, operable by novices, no professional tools required)

Pre-installation preparation

Prepare tools

Bring your own household Phillips screwdriver, and consider wearing gloves to prevent scratches and dust;

Check accessories

Check the packaging accessories to ensure that the instruments, brackets, screws, and original factory waterproof plugs are all present and complete;

Vehicle preparation

(Factory reminder) Turn off the motorcycle and disconnect the power, remove the negative terminal of the battery to prevent short circuit; level the handlebars, and clean the installation area until it is flat and clean.

Specific installation steps

1. Remove the old instrument

Unscrew the fixing screws with a screwdriver, gently pull out the circuit plug, remove the old instrument, and do not alter the original car circuit.

2.Fixed support

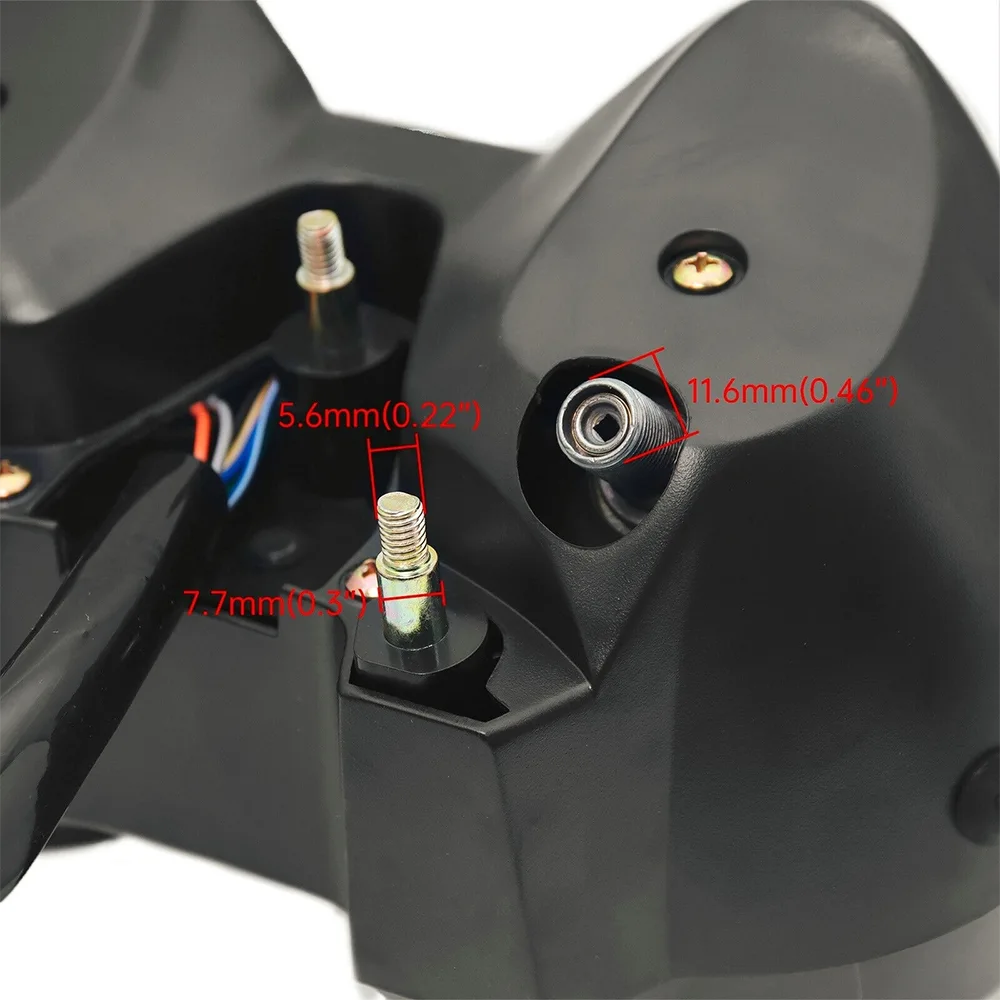

Line with the original bracket with the mounting hole and tighten it securely with the accompanying screws.

3. Install new instruments

Line with the new CG150 TITAN150 LED motorcycle speedmeter with the bracket and adjust it to the appropriate angle. Secure it with screws, guaranteeing no shaking and that it is installed flat.

4. Circuit connection

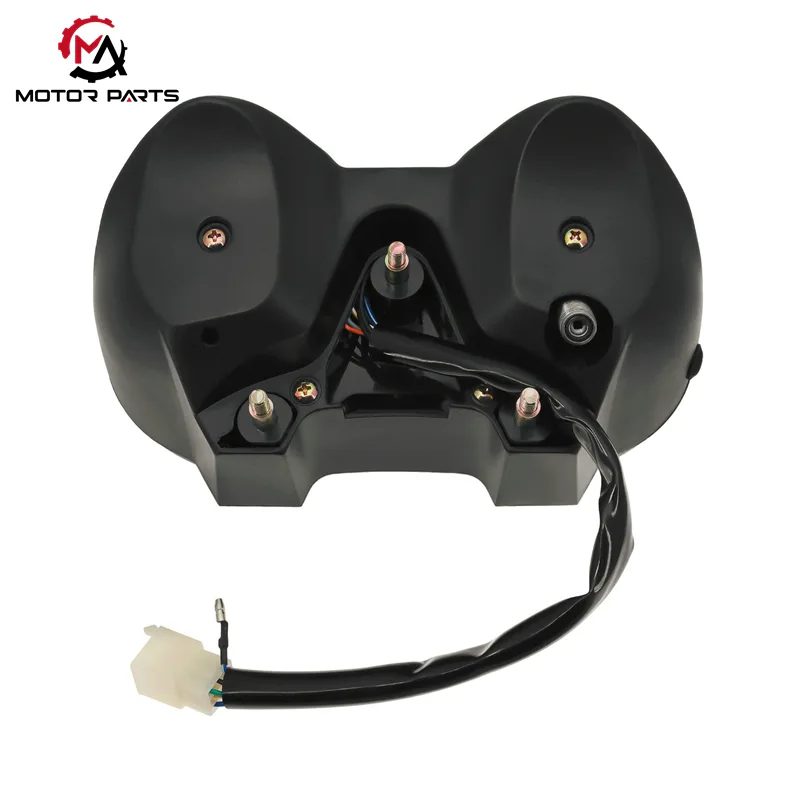

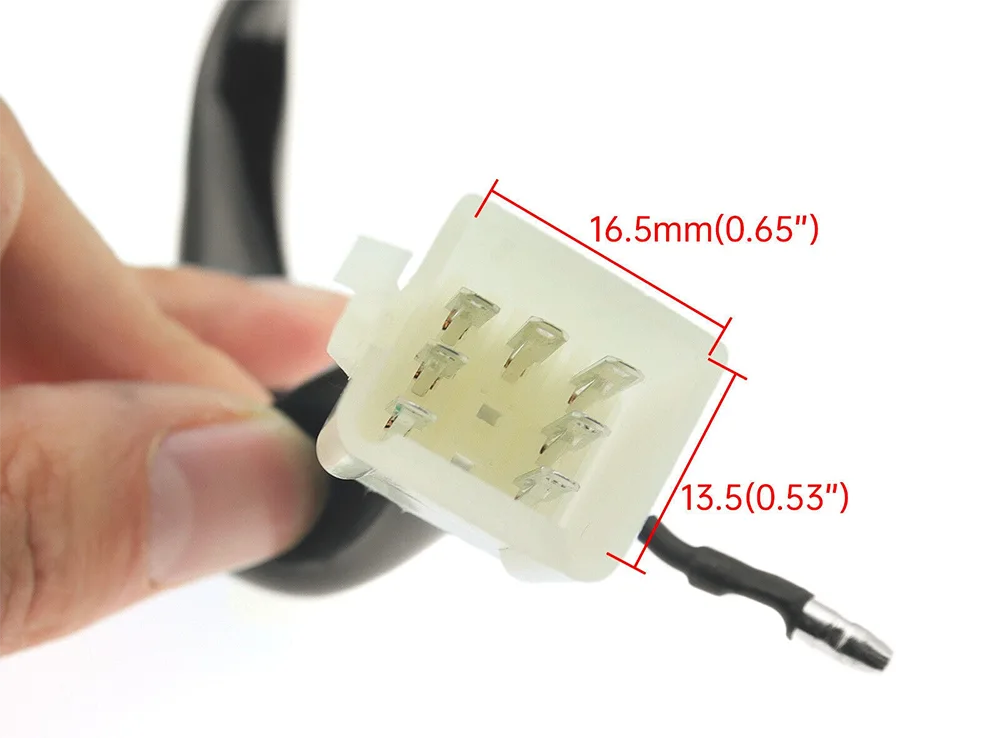

Align the CG150 TITAN150 LED motorcycle speedmeter waterproof plug with the original vehicle plug and gently insert it until it clicks into place. Do not pull the wires; you can also wrap them with waterproof tape for added waterproofing.

5. Recovery testing

Connect the battery negative terminal, start the vehicle, and test the various functions of the speedmeter to assure they are normal. This complete the installation

Product Parameter

Guidance of CG150 TITAN 150 Electronic LED Motorcycle Speedometer Cable Color and Function

1.Green: Negative electrode

2.Black: positive electrode

3.Orange: Left turn

4.Yellowish-white: oil gauge

5.Light blue: Right turn

6.Dark blue: high beam

7.Green and white: Neutral gear

8.Blue and white round head line: Rotational speed

Max Trading's professional guarantees that the quality of instruments is trustworthy

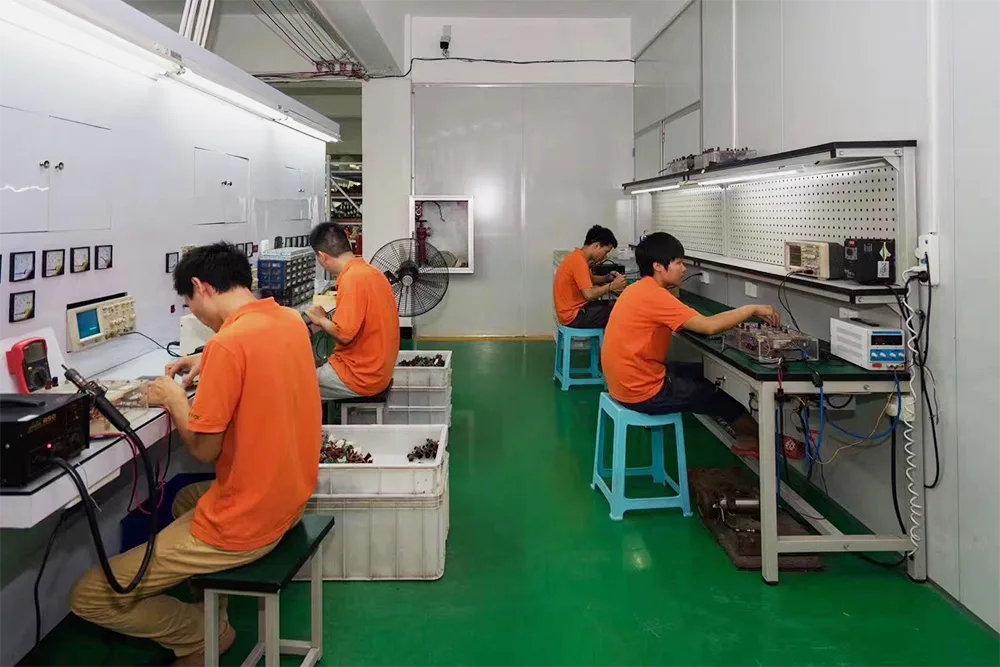

1.Our factory has assisted famous domestic and foreign vehicle producer with rich mass production experience. We can effectively handle orders, provide stable supply, and customize personalized solutions.

2.In terms of after-sales service, Max Trading has built a overall factory level support system and equipped a professional team to quickly resolve kinds of issues related to motorcycle instruments in installation and use. With full-process support, the company caters to the professional after-sales needs of both bulk buyers and individual users.
