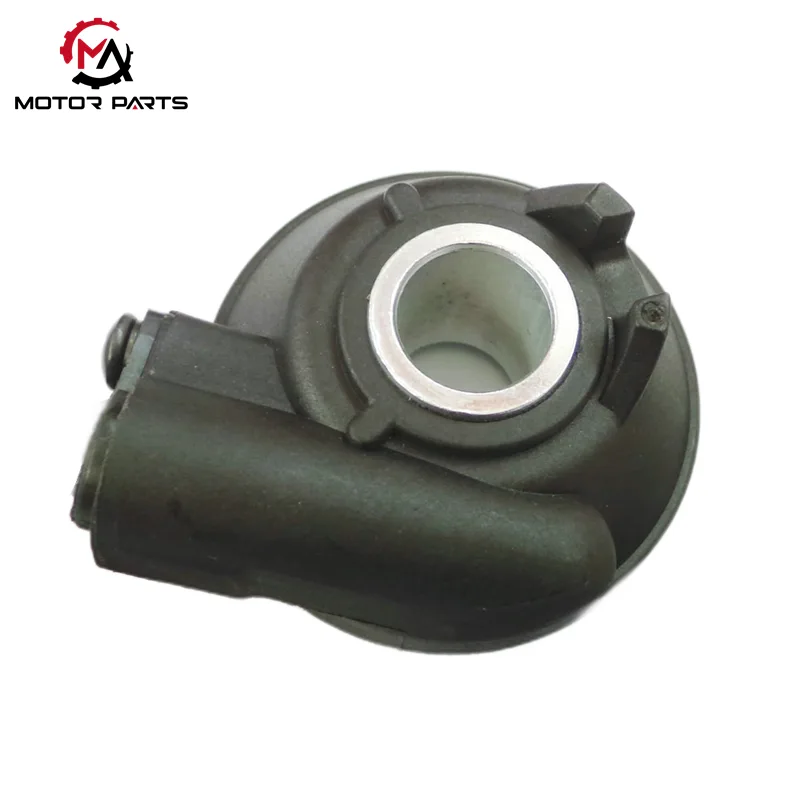

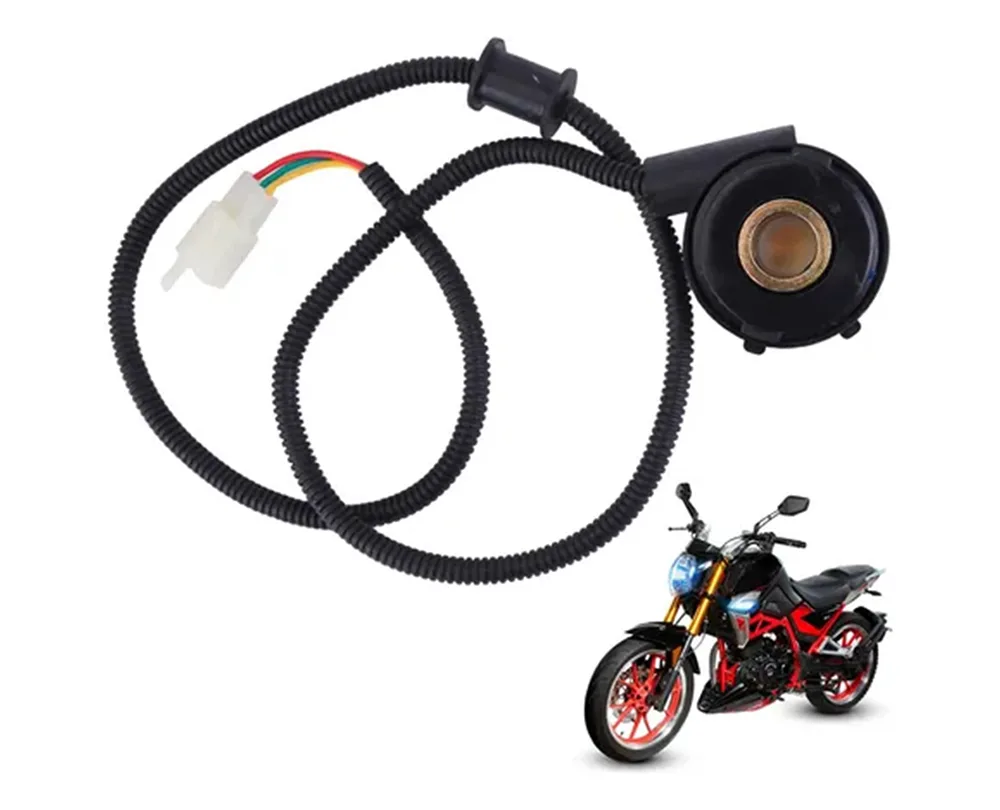

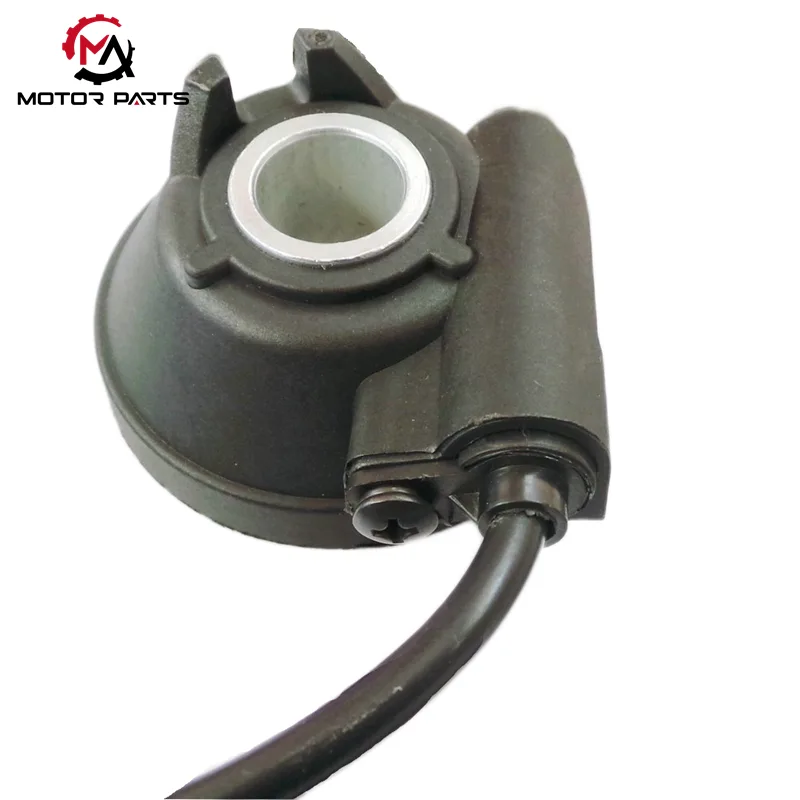

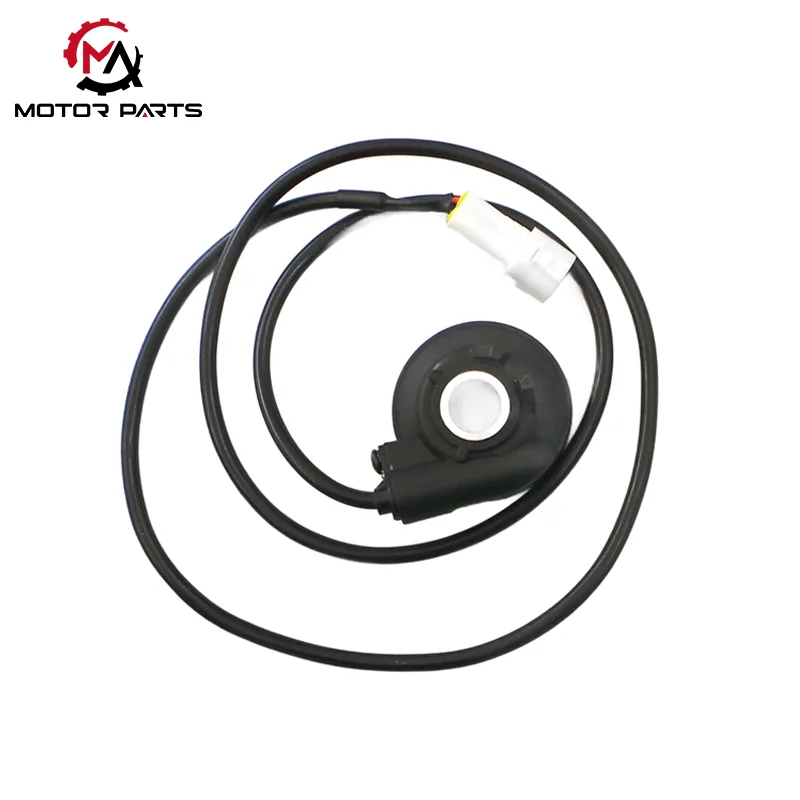

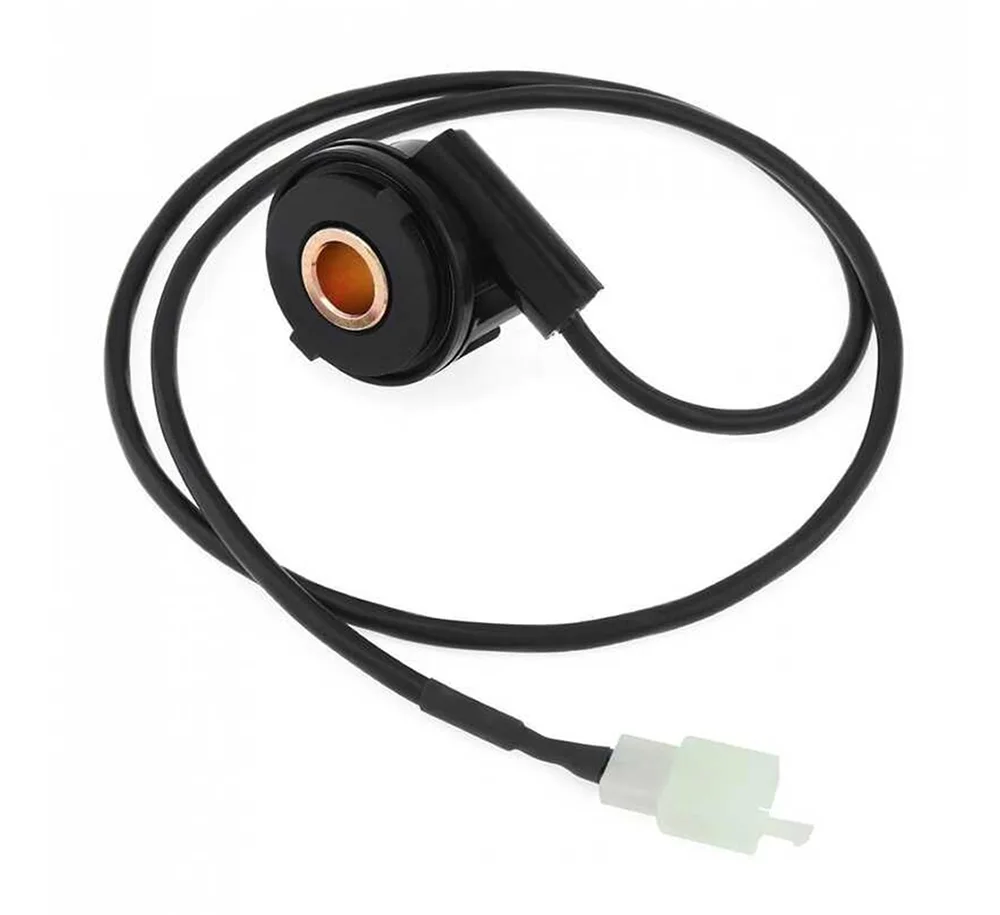

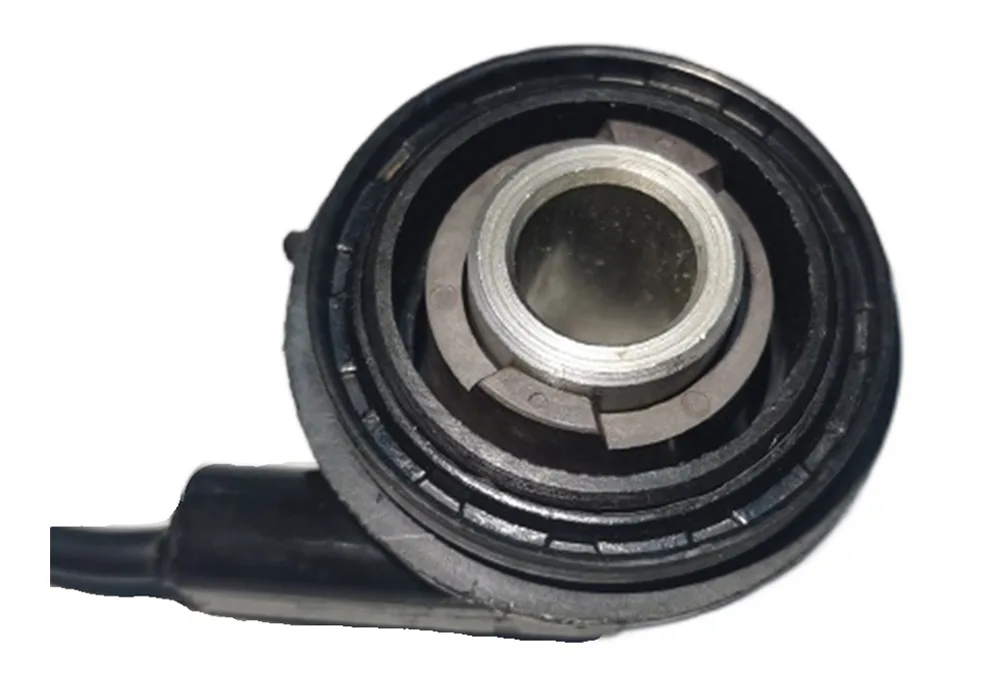

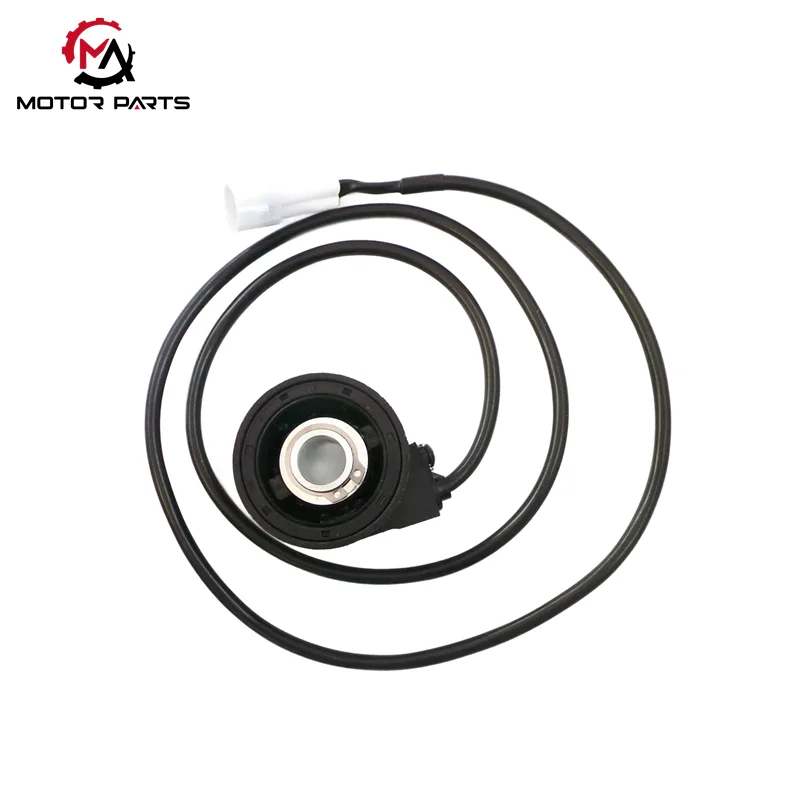

YAMAHA FZ16 Motorcycle Speed Sensor

The YAMAHA FZ16 Motorcycle Speed Sensor is a core component of the overall vehicle speed acquisition system. Max Trading has systematically optimized its structural design, signal processing, and installation matching to meet the stability and accuracy requirements of daily riding while maintaining reasonable cost control.

Compared with traditional mechanical cable-driven speed sensors, this model adopts a non-contact signal acquisition method. It effectively reduces mechanical wear and minimizes long-term error fluctuations, making it more suitable for modern digital instrument systems.

I. Stable Output Sensing Structure Design

1. Non-contact Electromagnetic Induction Solution

The sensor converts the rotation signal of the gear ring into an electrical signal through magneto-electric induction. The internal magnet and coil are precisely matched and calibrated to maintain continuous and stable pulse output across low-speed and medium-to-high-speed ranges.

• Maintains clear signal output even at very low speeds, such as in congested urban traffic.
• Reduces the possibility of signal fluctuation under high-frequency vibration conditions.
• Minimizes long-term accuracy degradation caused by mechanical wear.

2. Fast Response Mechanism

Signal conversion delay is controlled within a low range, supporting frequent acceleration and deceleration scenarios common in city riding.

Even when riding on mountain roads or continuous curves, the YAMAHA FZ16 Motorcycle Speed Sensor maintains real-time speed feedback for consistent instrument display.

II. Durable Structure and Protective Design

Motorcycles operate in open outdoor environments for extended periods. Therefore, Max Trading has reinforced the structural protection of the YAMAHA FZ16 Motorcycle Speed Sensor to improve durability and service life.

1. Reinforced Housing

The housing is made of composite engineering materials with strong impact resistance, capable of handling daily road vibration and minor external impacts without affecting internal performance.

2. Sealed Protective Structure

• Dustproof and splash-resistant design
• Internal sealing treatment for enhanced protection
• Suitable for rainy and humid riding environments

3. Stable Installation Structure

The sensor adopts a positioning structure combined with bolt fixing. It matches the original mounting position of the FZ16, ensuring straightforward installation without complex modification.

III. Collaboration with the Digital Instrument System

As the data source for the digital instrument cluster, the YAMAHA FZ16 Motorcycle Speed Sensor directly influences the accuracy of speed display and mileage calculation.

When integrated with the original vehicle ECU system, it enables:

• Real-time vehicle speed display
• Mileage calculation
• Abnormal signal warning function

The sensor maintains stable signal output even under slight voltage fluctuations, reducing the likelihood of instrument panel false alarms.

Product Parameter:

Max Trading Motorcycle Speed Sensor Precise Customization Service

High end markets in Europe and America: Developing intelligent speed sensors that support CAN bus communication for high-end models such as BMW and Ducati. Not only can it accurately output speed data, but it can also synchronize sensor working status and fault diagnosis information in real time, seamlessly integrate with the vehicle's electronic control system, and bring intelligent and safe riding experience to high-end users.

Southeast Asian Economic Market: Introducing a mechanical gear ring speed sensor that is compatible with mainstream economy models of 125cc and 150cc. By optimizing the installation structure, the installation difficulty and cost are reduced. Simultaneously equipped with multilingual installation instructions, providing localized packaging design that deeply fits the usage habits and aesthetic preferences of the Southeast Asian market.

Modified car market: Deeply explore the personalized needs of modification enthusiasts, support flexible adjustment of detection range and signal output frequency, and customize appearance colors to create unique speed sensors, helping to improve the performance and appearance of modified cars.

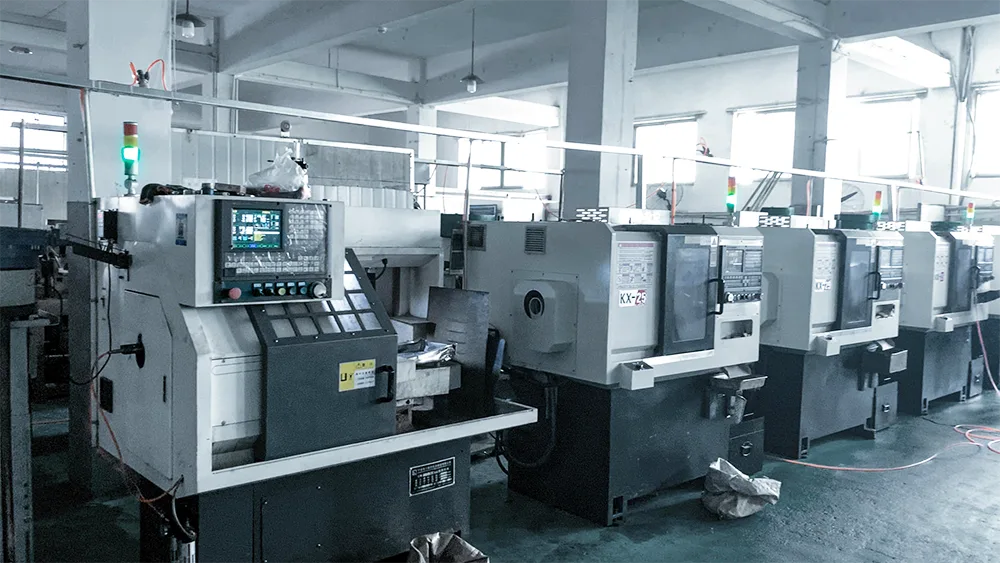

Max Trading's Precision Instrument Manufacturing Department
