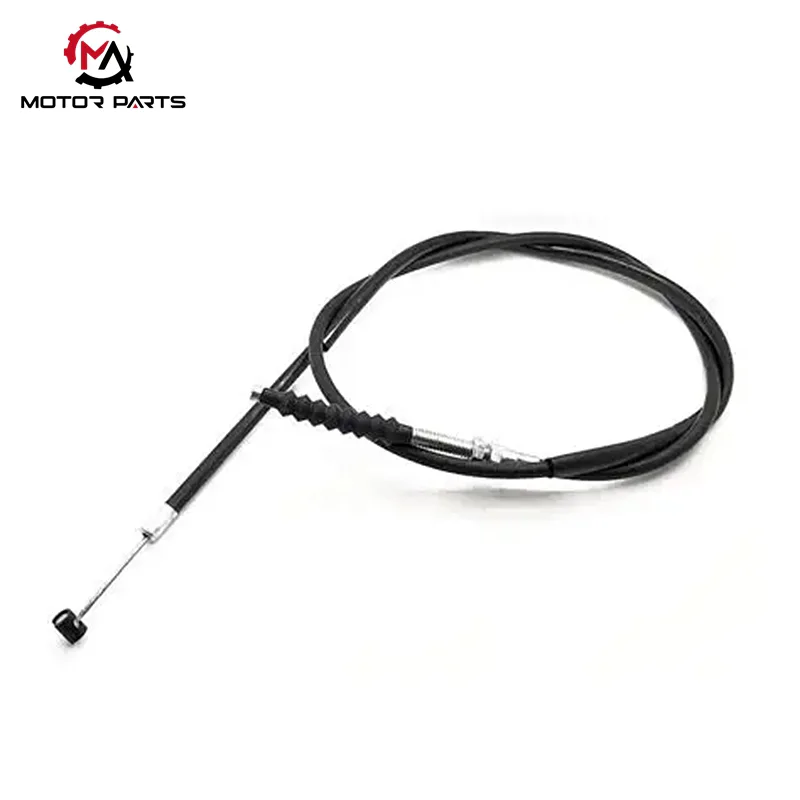

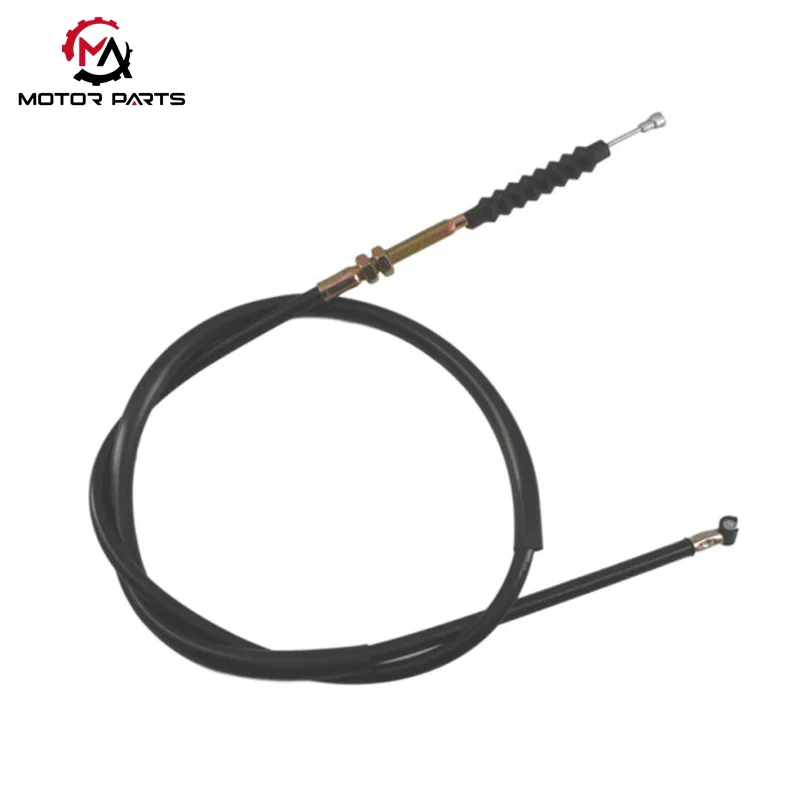

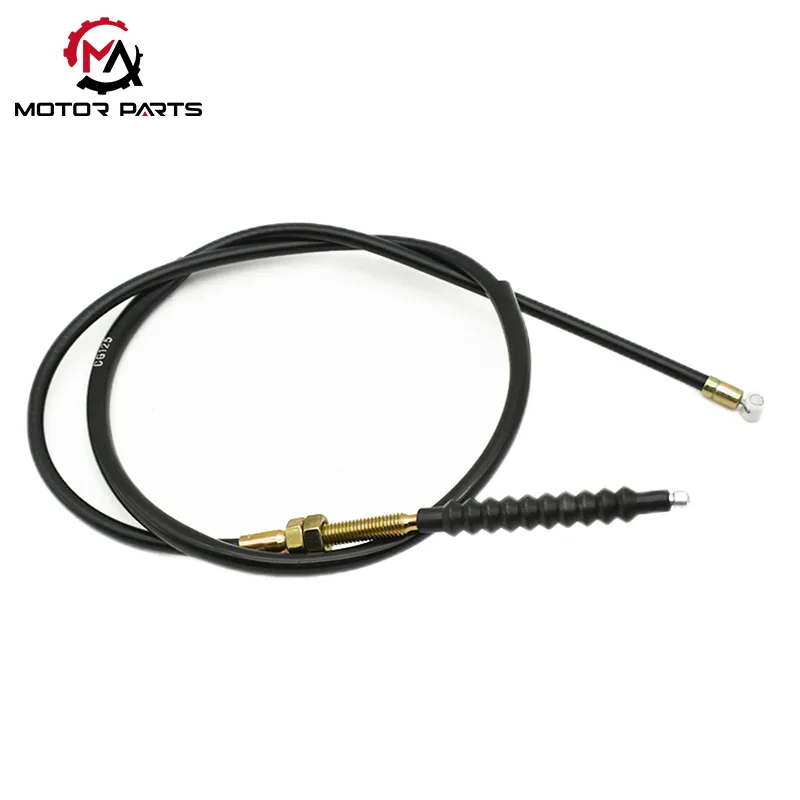

As a core transmission component of the Honda CG125 Motorcycle Clutch Cable, the clutch cable directly determines the precision of power connection/disconnection, gear-shifting smoothness, and even riding safety. Targeting the high-frequency usage scenarios of Honda CG125 (such as daily commuting, urban logistics, and long-distance riding with frequent start-stop and load changes), Max Trading has developed this exclusive clutch cable through in-depth research on the original vehicle's structural characteristics. With three core upgrades in material selection, structural design, and precision calibration, it effectively solves the common pain points of ordinary clutch cables (e.g., easy fatigue, poor corrosion resistance, and inaccurate shifting) and provides a stable and durable transmission solution for global CG125 riders and aftermarket suppliers.
Adopting 1.5mm high-purity stainless steel wire core, which is 25% thicker than the standard wire core of ordinary clutch cables. The tensile strength reaches 1770MPa, ensuring excellent load-bearing capacity. Equipped with a double-twisted stranded structure, it can evenly disperse the cyclic stress generated by dozens of clutch operations per day. Compared with the original factory's ordinary steel wire clutch cable, the fatigue life is increased by 40%, and it can withstand long-term high-frequency use without deformation or breakage—perfectly matching the usage needs of Honda CG125 for daily commuting and heavy-load riding.
The outer sleeve is made of 5mm thick EPDM rubber, which has excellent wear resistance, high/low temperature resistance, and aging resistance. The outer layer is wrapped with a high-density nylon woven protective net, which can effectively resist the impact of sand, gravel, and branch scratches during riding, and prevent rainwater erosion in rainy days. Both ends of the cable are equipped with double-layer dust-proof rubber sleeves, which tightly seal the connection between the steel wire and the sleeve, completely isolating dust, sludge, and other impurities from entering the friction surface. This design fundamentally solves the problems of "sand jamming" and "corrosion in rainy days" that plague traditional clutch cables, ensuring smooth operation in harsh environments such as deserts, plateaus, and coastal areas.
Based on the original factory parameters of Honda CG125, we have accurately measured the 35° standard angle of the clutch lever and the position of the engine clutch rocker arm, and customized the precise pre-tension of the cable. The stroke error is strictly controlled within ±0.5mm, realizing the efficient response of "complete separation with light pinch and stable engagement with release". It perfectly adapts to the power characteristics of the CG125 single-cylinder engine, eliminating the problems of gear-shifting lag, power connection jitter, and difficulty in shifting gears, and bringing a smooth and comfortable riding experience.
Compared with ordinary universal clutch cables on the market, our Honda CG125 Motorcycle Clutch Cable has obvious advantages in adaptability and durability:
- Superior Adaptability: Ordinary universal clutch cables are mostly 114cm or 96cm in length, which require cutting and secondary adjustment during installation, easily leading to stroke errors and shifting inaccuracies. Our product is strictly customized according to the original factory 105cm size of Honda CG125, with pre-tension calibration completed before leaving the factory, realizing "plug-and-play" convenient installation.
- Enhanced Durability: Ordinary clutch cables usually use iron wire cores and single-layer rubber sleeves, which are prone to rust and wear. Our product adopts a combination of high-purity stainless steel wire core + nylon woven protective net + EPDM thickened sleeve, which improves rust resistance and durability by 60% compared with ordinary products.
- Professional Customization: We focus on the aftermarket of classic models such as Honda CG125, with in-depth research on vehicle parameters. Each batch of products undergoes strict tensile, fatigue, and corrosion resistance tests to ensure consistent quality.
|
Honda CG125 motorcycle accelerator cable |
Parameters |
|
Wire diameter |
1.5mm |
|
Diameter of casing |
5mm (Thickened EPDM rubber) |
|
Length |
105cm |
|
Joint specifications |
8mm round hole zinc alloy joint |
When installing, please ensure that the clutch cable is properly routed (consistent with the original factory route) to avoid kinking or stretching; after installation, check the stroke of the clutch lever, and adjust the adjusting nut at the end of the cable if necessary to ensure that the stroke is within the standard range (20-30mm).
- Dust Cover Inspection: It is recommended to check the sealing performance of the double-layer dust cover at both ends of the cable every 3000km. If damage, cracking, or aging is found, replace the dust cover in time. Max Trading provides matching dust cover accessories for separate purchase.
- Lubrication Maintenance: Inject special motorcycle lubricating grease into the cable every 6000km. Do not use ordinary engine oil instead—standard lubrication can ensure the smooth sliding of the steel wire and extend the service life to more than 20000km.
When the following phenomena occur, the Honda CG125 Motorcycle Clutch Cable must be replaced immediately: ① The clutch lever feels heavy and difficult to pinch; ② Abnormal noise during shifting; ③ Incomplete clutch separation leading to gear jamming; ④ Steel wire exposure and corrosion. Failure to replace in time may cause clutch failure (such as sudden disengagement or inability to shift gears), which will seriously endanger riding safety.
