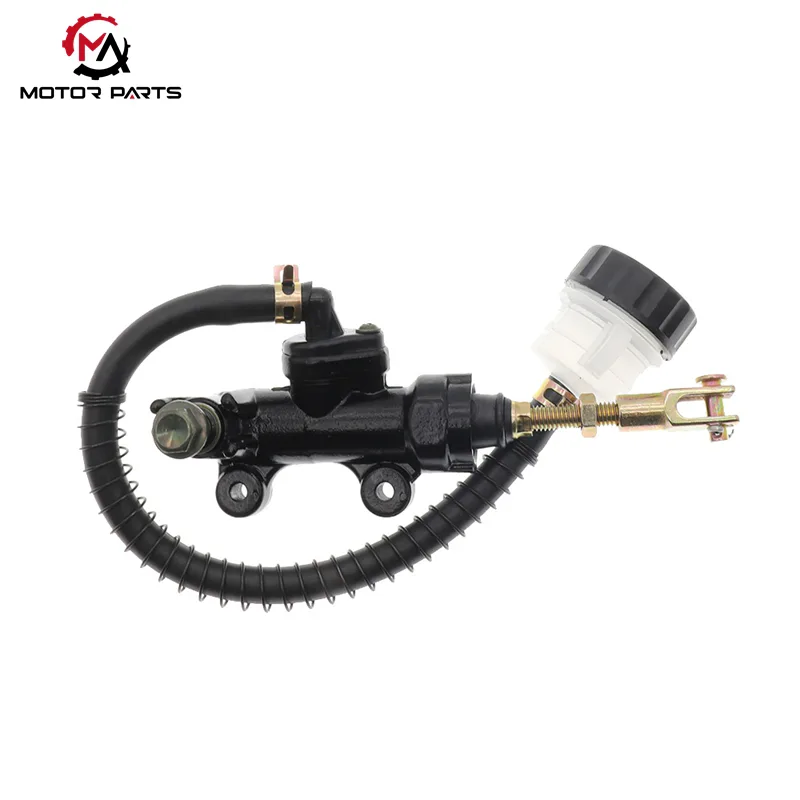

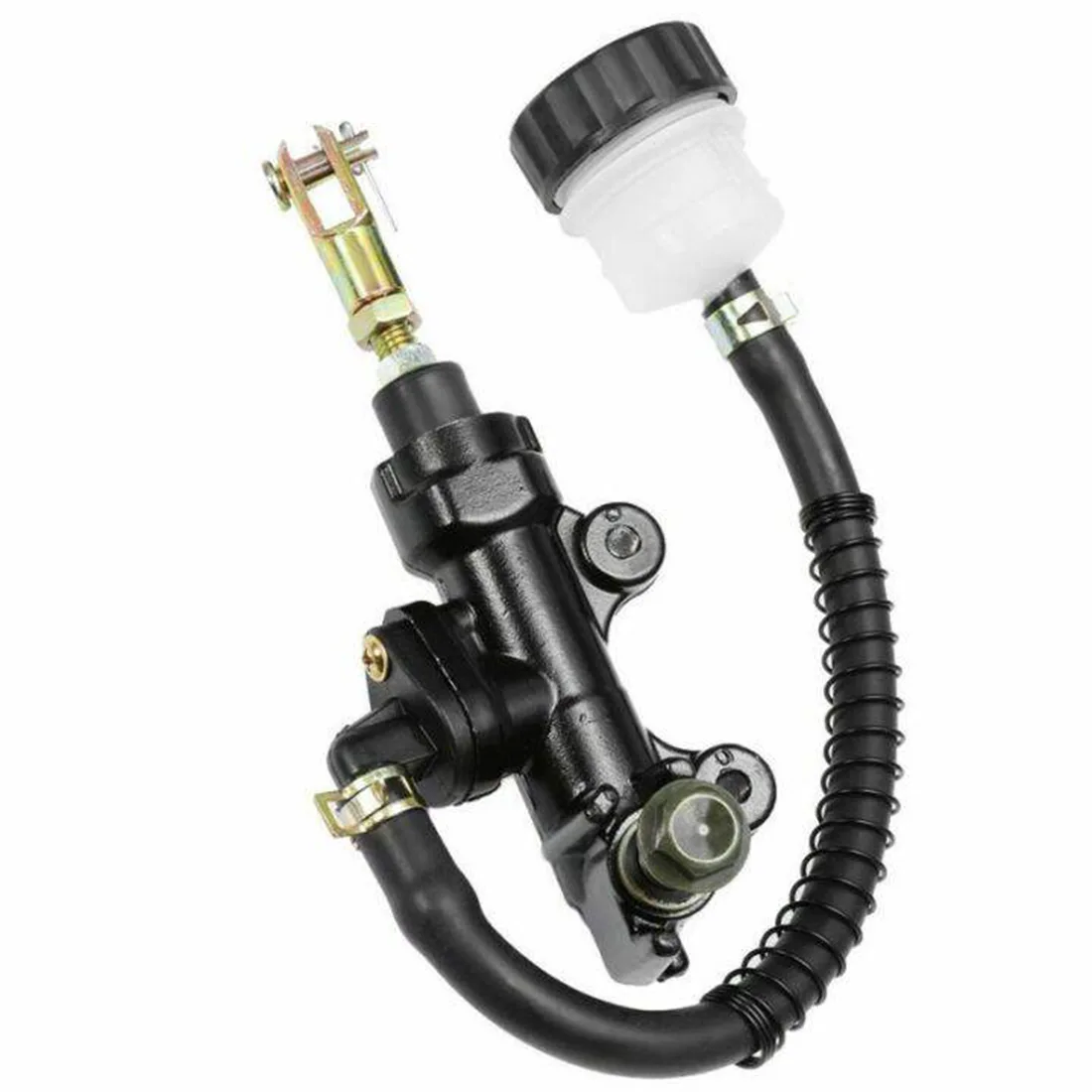

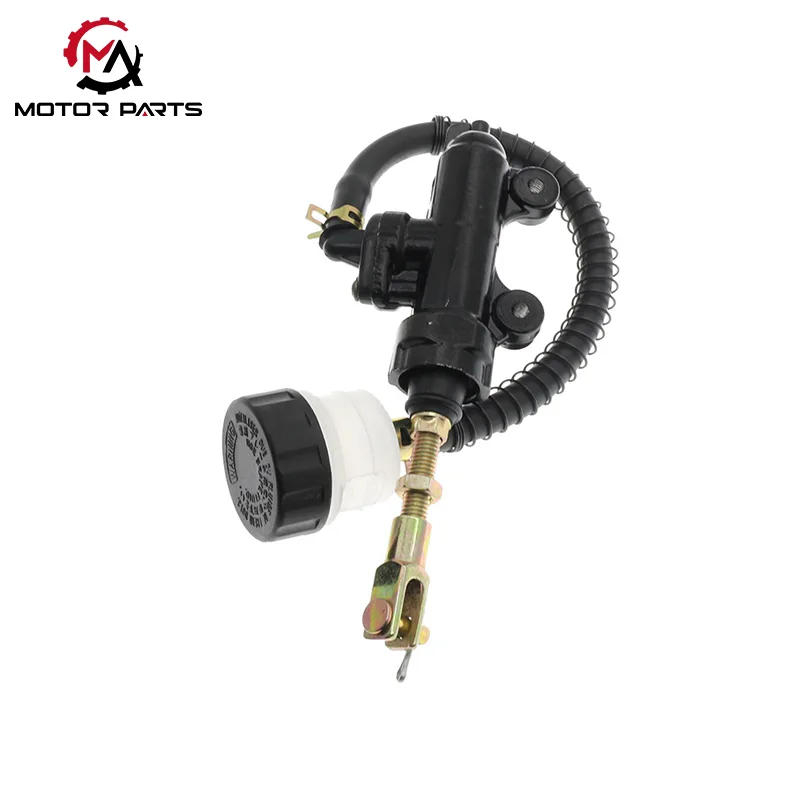

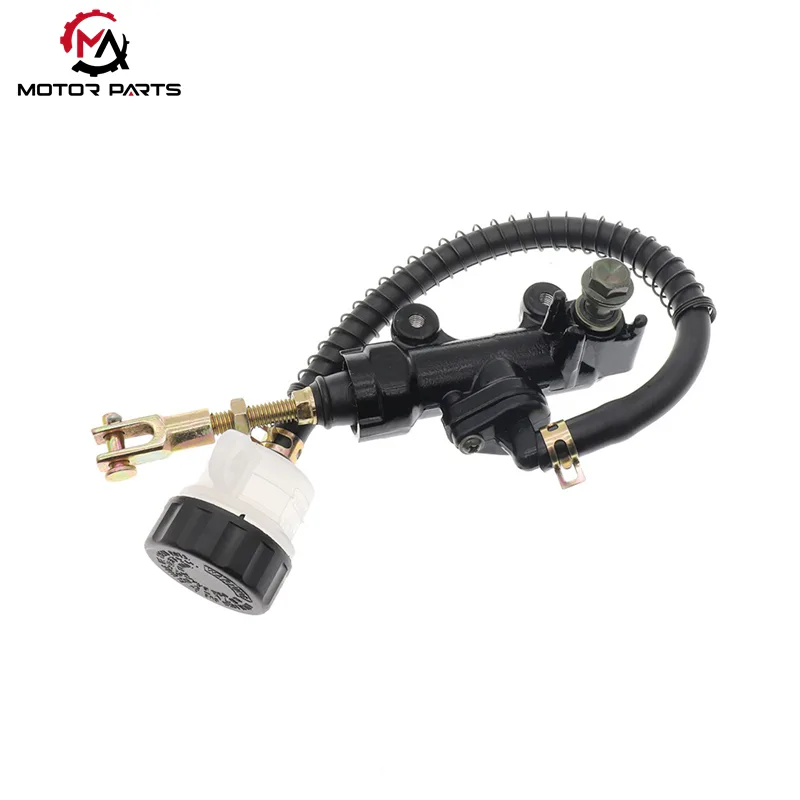

Suzuki GSXR 600 Motorcycle Brake Pump

The Suzuki GSXR 600 Motorcycle Brake Pump, manufactured in China, is Max Trading's original factory standard brake pump for high-performance sports bikes. It features a Nissin direct-push design and a 22mm bore, multi-stage adjustable control, a CNC aluminum alloy cylinder block, and an anti-aging structure. It precisely matches braking pressure and intelligently integrates with the ABS system. Compatible with 1997–2016 GSXR 600 models and related 750/1000 models, it boasts standardized installation, stable performance, and is a reliable braking component for track, street riding, and aftermarket modifications. We provide professional assembly guidance and global support services.

Brand customization and performance benchmarks

1. Nissin exclusive direct push design

The original front wheel brake pump is tailor-made by brake system giant Nissin, using a high-performance direct push structure - the piston movement direction is completely consistent with the brake handle, achieving "input-output" linear pressure transmission. This design completely solves the nonlinear deviation of hydraulic transmission compared to traditional side push up pumps, allowing riders to accurately control braking force through handle stroke.

2. Golden cylinder diameter for displacement adaptation

After 2011, the pump cylinder diameter on the models was uniformly 7/8 inches (22mm), which has been verified by engineering to perfectly match the dual disc brake system: it not only avoids the pressure shortage of small cylinder diameters (such as 17mm) during high-speed braking, but also prevents the problem of heavy hand feel caused by large cylinder diameters (such as 19mm), forming the optimal matching ratio of "pressure caliper force" with Brembo four piston calipers.

Structural Innovation and Efficiency Optimization

1. Multi level adjustable control system

The upper pump integrates dual adjustable functions of rod span and preload adjustment: the rod distance can be infinitely adjusted within the range of 95-115mm, suitable for different hand shapes; The built-in preload knob provides a three-level mode of "street/sport/track" - track mode (R gear) starts from level 3 preload, omitting idle travel to achieve instantaneous braking response; Street mode (S mode) starts from level 2, balancing linearity and safety.

2. Anti aging and anti failure design

Adopting CNC integrated aluminum alloy cylinder body, the surface is treated with a frosted coating resistant to brake oil corrosion, effectively resisting the risk of cylinder wall wear and leakage caused by long-term use. The independent oil pot innovation adopts a deepened structural design with a capacity of about 120ml and is equipped with a high transparency observation window: it eliminates the hidden danger of oil backflow into the air during bending, facilitates real-time observation of oil turbidity, and predicts the aging of the braking system in a timely manner, providing dual guarantees for safe riding.

Security linkage and system adaptation

1. ABS intelligent pressure coordination

After 2023, high-precision pressure sensors will be built into the pump of the vehicle, forming a closed-loop control with the ABS system. When the ECU detects the risk of lock up through the wheel speed sensor, the pump will cooperate with the ABS pump to achieve 24 pressure pulse adjustments per second, while maintaining braking force and avoiding wheel lock up. This linkage design increases the braking response speed by 30% compared to traditional mechanical pumping.

2. Cross series universal features

The core components of the upper pump are completely interchangeable with the same generation models of GSXR 750 and GSXR 1000. For example, the upper pump of the 2008-2010 GSXR 600 can directly replace the GSXR 1000 components. The installation interface adopts the industry standard 22.2mm pipe diameter design, and there is no need to modify the connecting plate structure during after-sales replacement, greatly reducing maintenance costs.

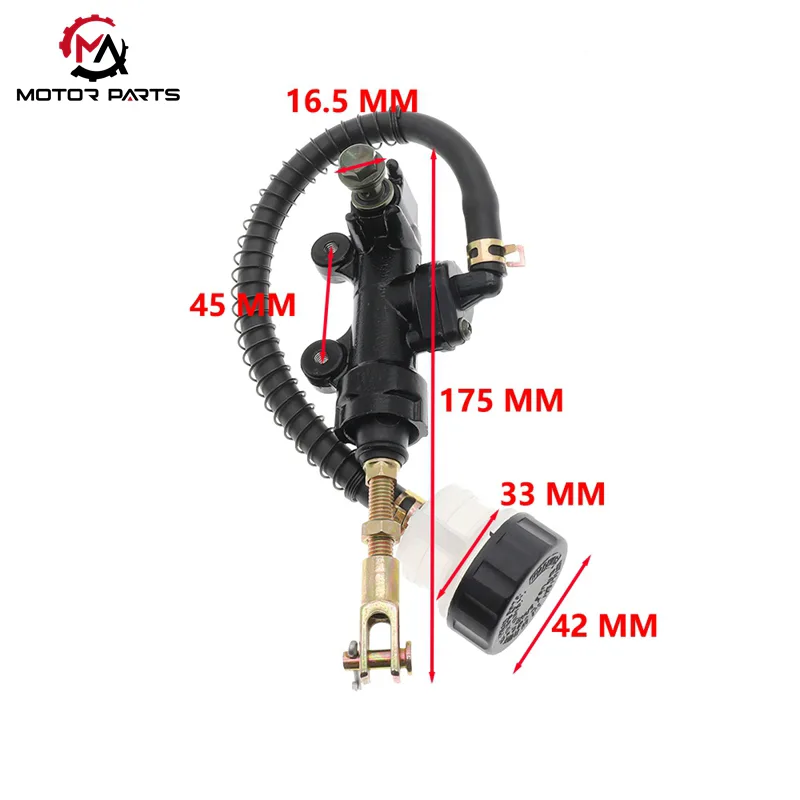

Product Parameter:

Precautions for assembling Suzuki GSXR 600 motorcycle brake pump:

1. Keep the working environment clean and dust-proof, prepare tools like wrenches and screwdrivers, as well as sealing gaskets, DOT 4 brake fluid and other accessories;

2. Before assembly, check the Max Trading brake pump parts, with a focus on the piston, sealing ring, and dust cover. If they are damaged or worn, they need to be replaced;

3. Install as required: Align the mating surface of the front brake pump master cylinder bracket with the stamped mark on the handlebar, and tighten the upper bracket bolts first;

4. Tighten the bolts according to the standard torque, including the front pump master cylinder bracket bolt (up and down) 10N · m, brake hose joint bolt 23N · m, rear pump master cylinder installation bolt 10N · m, and master cylinder rod locking nut 18N · m;

5. After installation, check if the brake lever/pedal travel and braking force are normal, and check if there are any leaks in the brake oil pipeline.
