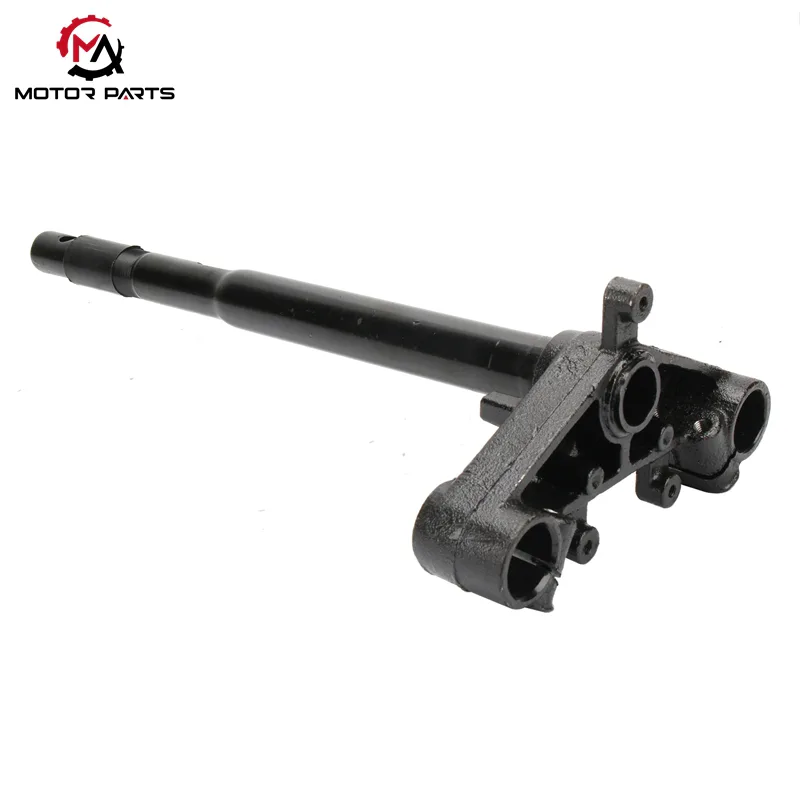

The Max Trading JOG125 Motorcycle Steering Column features an integrated structural design specifically engineered for scooters. The column and lower connecting plate are rigidly connected by welding, complementing the front storage space and compact front layout. Standardized dimensions ensure a seamless fit with the front fork and handlebars, preventing assembly deviations during modification or replacement.

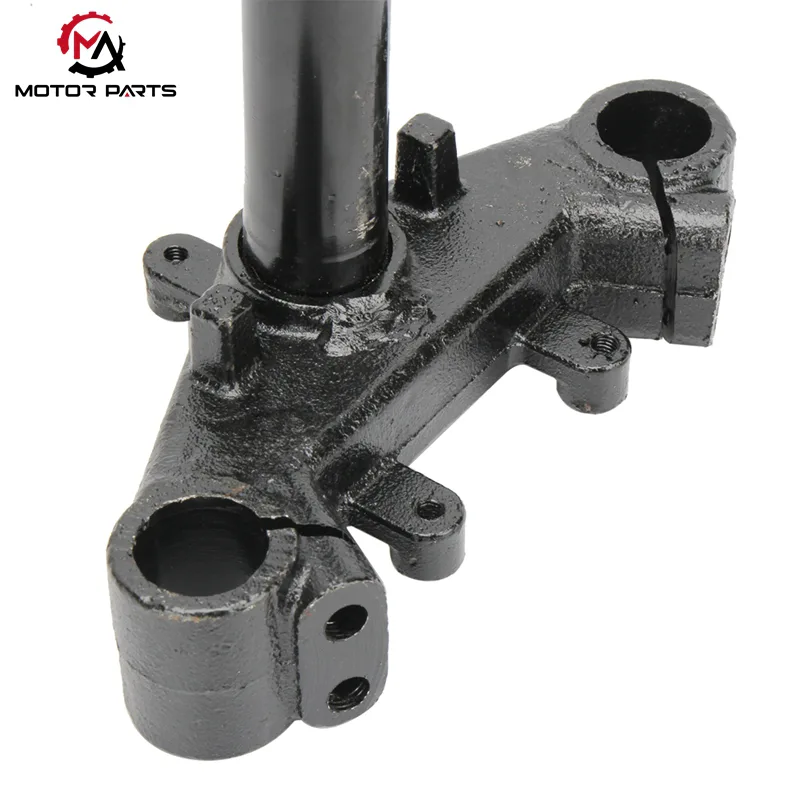

The JOG125 Motorcycle Steering Column is designed for the high-frequency urban commuting scenarios of scooters. Its steering angle design meets the requirements for flexible low-speed handling, and by optimizing the steering bearing clearance and adjusting the front wheel toe-in, it ensures straight-line stability and reduces resistance during low-speed turns. As a critical load-bearing component, the steering column (lower connecting plate) is formed using forging technology, with uniform and neat welds to the column, free from defects such as incomplete welds or pores. The pull-out force meets the industry safety standard of ≥ 29.4KN.
The material selection for the Motorcycle Steering Column balances practicality and cost control. The column uses 20# seamless steel pipe, and the lower connecting plate uses 20# or 35# steel, which is normalized at approximately 800℃. This heat treatment optimizes the grain structure, enhancing impact toughness and wear resistance. The surface is treated with black paint, which not only matches the sporty appearance of the JOG125 but also enhances rust resistance through a phosphating primer, making it suitable for use in rainy or humid environments.
As a key core component of mass-produced vehicle models, the Max Trading JOG125 Motorcycle Steering Column is manufactured strictly according to original equipment technical standards. For customized needs in the export market, professional manufacturers can flexibly adjust the surface treatment process based on original equipment dimensions, such as upgrading to a multi-layer electroplated anti-corrosion coating or strengthening the structural strength of the steering column's lower plate, to meet the requirements of rainy and humid regions in Southeast Asia and areas with complex and bumpy roads.

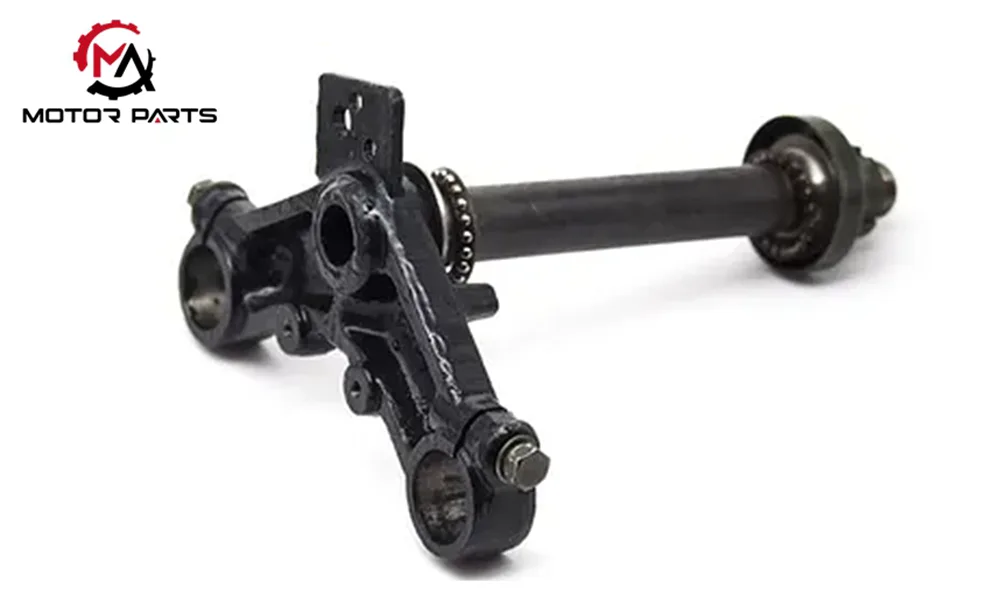

Sealing Protection System: The steering bearing utilizes a fully sealed structure, employing precisely arranged steel balls and long-lasting grease to create a triple dust barrier, effectively preventing sand and dirt intrusion and reducing wear on critical components by over 60%.
Precision Friction Control: The contact surface between the lower connecting plate and the front fork is polished to a mirror finish, with a surface roughness Ra value controlled to within 0.8μm. Combined with custom-designed low-friction bearings, this achieves smooth steering while significantly improving component durability.
Rigorous Quality Control System: Each batch of steering columns undergoes 300,000 fatigue strength tests and dynamic steering simulations under full load conditions to ensure the steering system maintains zero displacement within a safe steering angle range of ±48°, with critical component precision errors controlled to within ±0.5°.
|

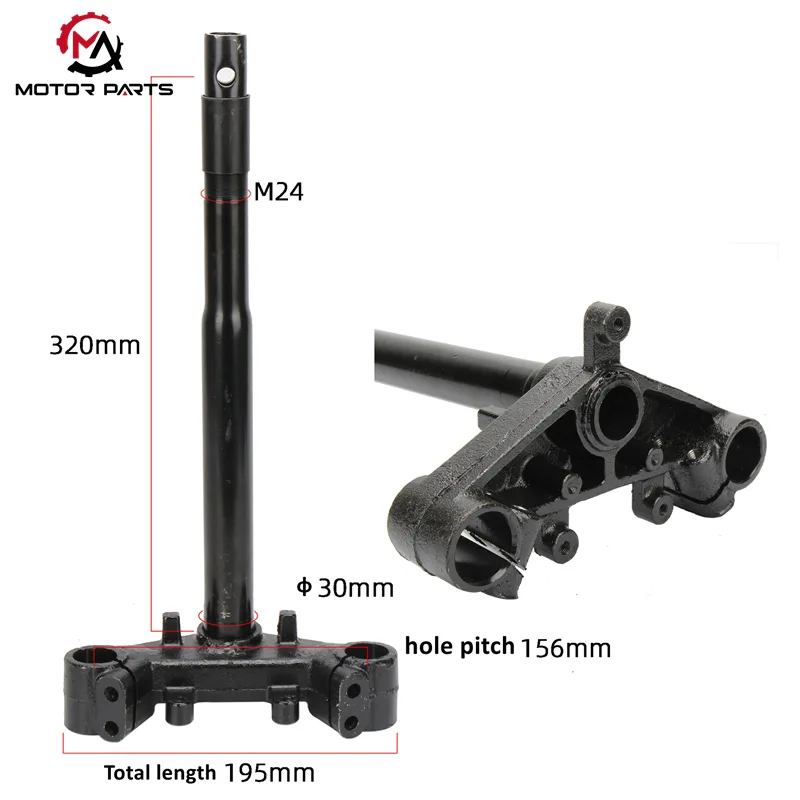

JOG125 motorcycle steering column |
Value |
|
Shock absorber hole diameter |
30mm |
|
Distance between shock-absorbing holes |
156mm |
|
Bottom to hole height |
320mm |
|
Lower hole diameter |
30mm |
1. Max Trading establishes a full chain system of "requirement identification customized development compliant delivery"
2. We are familiar with the admission rules of various countries, and our products can meet multiple certification requirements such as China's 3C and EU ECE.
3. Through standardized packaging and logistics monitoring, avoid collision and damage during transportation, and cooperate with a comprehensive after-sales system to provide technical support and return and exchange guarantee for global customers.
4. Meet the bulk procurement demand for economy motorcycle parts in the Asian market, and also respond to the precise delivery of customized parts for sports motorcycles in the high-end markets of Europe and America.
