As the Chinese supplier of 10MM BAJAJ180 PULSAR135 motorcycle rearview mirror, Max Trading carefully selects raw materials to ensure product quality, and continuously improves and tests accessories to guarantee a good user experience.
As a important component for ensuring motorcycle riding safety, our factory strictly controls the selection of raw materials for 10MM BAJAJ180 PULSAR135 motorcycle rearview mirror based on four standards: "high strength, anti-aging, high clarity, and corrosion resistance".
Mirror shell and bracket
Constructed with high-strength ABS engineering plastic and premium aluminum alloy, the ABS plastic stands up to both high and low temperatures, resists impact, and resists fading; the aluminum alloy bracket, after undergoing anodizing treatment, balances hardness, corrosion resistance, and lightweight.
Lens
Adopting high-transparency optical white mirror (customizable blue mirror anti-glare version), with a light transmittance of ≥92% and no distortion, ensuring rear visibility; the back is fitted with an anti-detachment film and an explosion-proof layer, and has undergone hardening treatment to prevent impact and fragmentation, meeting relevant optical standards.
Connectors and accessories

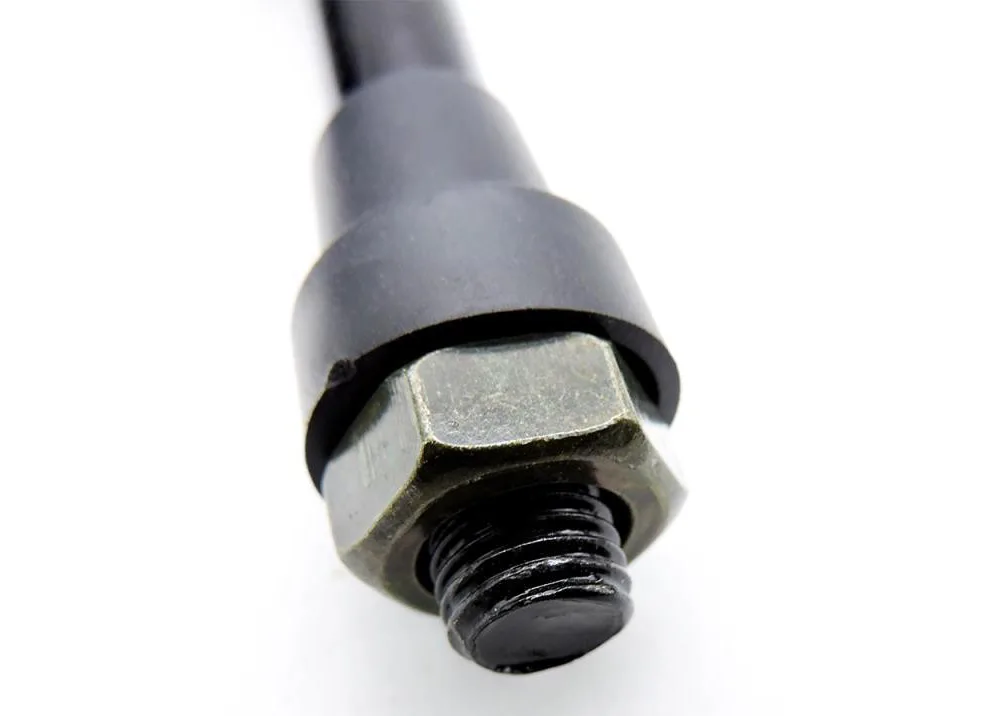

The 10MM bolt is made of high-strength carbon steel, which undergoes galvanizing for rust prevention and precision machining, meeting the reverse thread standard. The accompanying rubber accessories provide waterproof, dustproof, anti-corrosion protection and extend service life.
Jitter issue
Optimize the shaft damping structure, add locknuts, and ensure uniform wall thickness of the mirror rod;
Corrosion issue
Upgrade the electroplating process or adopt aluminum alloy mirror rods to strengthen the salt spray resistance level;
Night glare
Some high-end replacement parts use blue-coated lenses to reduce strong light reflection;
Lightweight: Replace some metal parts with carbon fiber/modified plastics to reduce the load on the handlebars.
Execution standard
The 10MM BAJAJ180 PULSAR135 motorcycle rearview mirror produced by our factory comply with GB 17352 "Performance and Installation Requirements for Rearview Mirrors of Motorcycles and Mopeds", and have passed exports certifications such as ECE R46 and DOT;
Test Item
Including reflectivity, impact strength, mirror rod bending, adjustment durability, high and low temperature (-30℃~80℃) cycling, salt spray corrosion, etc.
Process quality control
Implement a three-level inspection system for the first piece, with spot checks on dimensions and functionality conducted every hour; set up visual inspection during mass production to identify appearance defects; isolate and dispose of non-conforming products, and trace back to the raw material batches.
life test
The 10MM BAJAJ180 PULSAR135 motorcycle rearview mirror must pass ≥5000 angle adjustments without jamming, and the riding vibration test for 200 hours without loosening or lens falling off.
|
10MM BAJAJ180 PULSAR135 motorcycle rearview mirror |
Value |
|
Material |
ABS engineering plastic and high-quality aluminum alloy material |
|

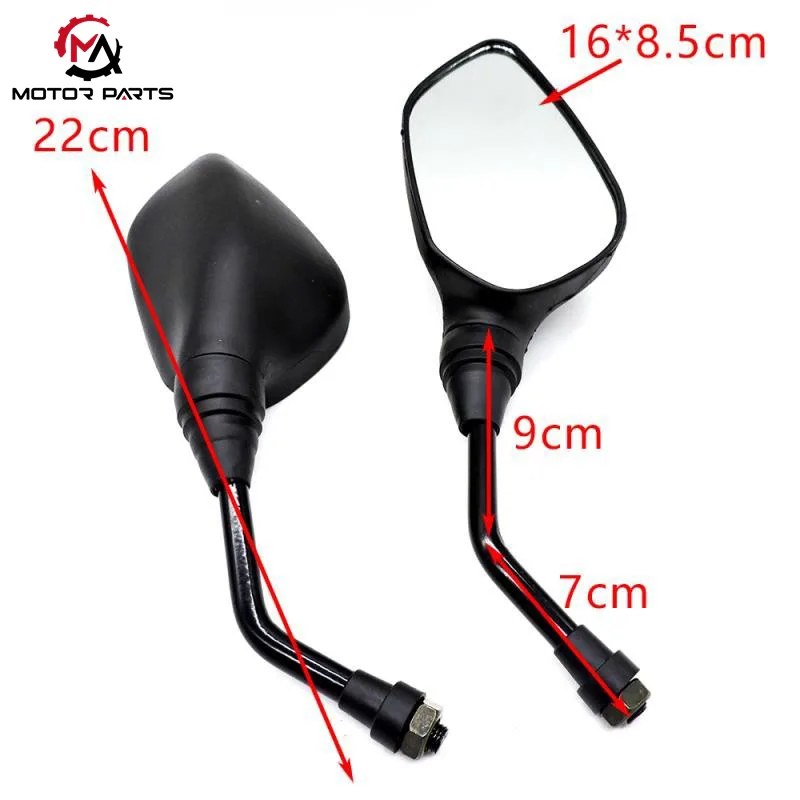

Total length of rearview mirror |
22cm |
|
lens area |
16cmx8.5cm |
|
rod length |
7cm+9cm |
1. Thread specification
Thread diameter: 10MM
Thread type: thread (M10), pitch 1.25MM
Thread length: 12-15MM
Differentiate between right and left threads: The left rearview mirror has a right hand thread (tightened clockwise, loosened counterclockwise), while the right rearview mirror has a left-hand thread (tightened counterclockwise, loosened clockwise)
2. Installation base parameters
Base diameter: 22-24MM
Base thickness: 3-4MM
3. Installation location parameters

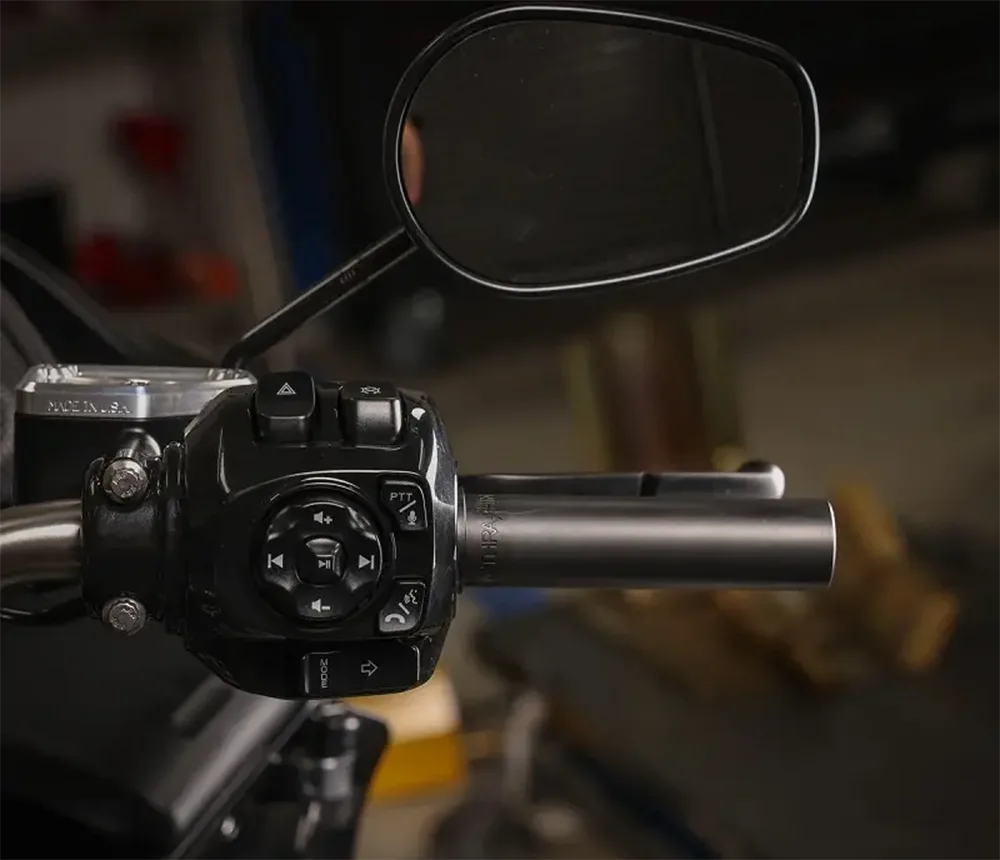

Installation point: reserved mounting holes on both ends of the handlebar
Installation height: The center of the rearview mirror should be keep pace with or slightly above the driver's eyes
Horizontal spacing: The distance between the center of the left and right rearview mirror surfaces and the longitudinal center plane of the vehicle body is ≥280MM, assuring balanced vision without overlapping blind spots.
