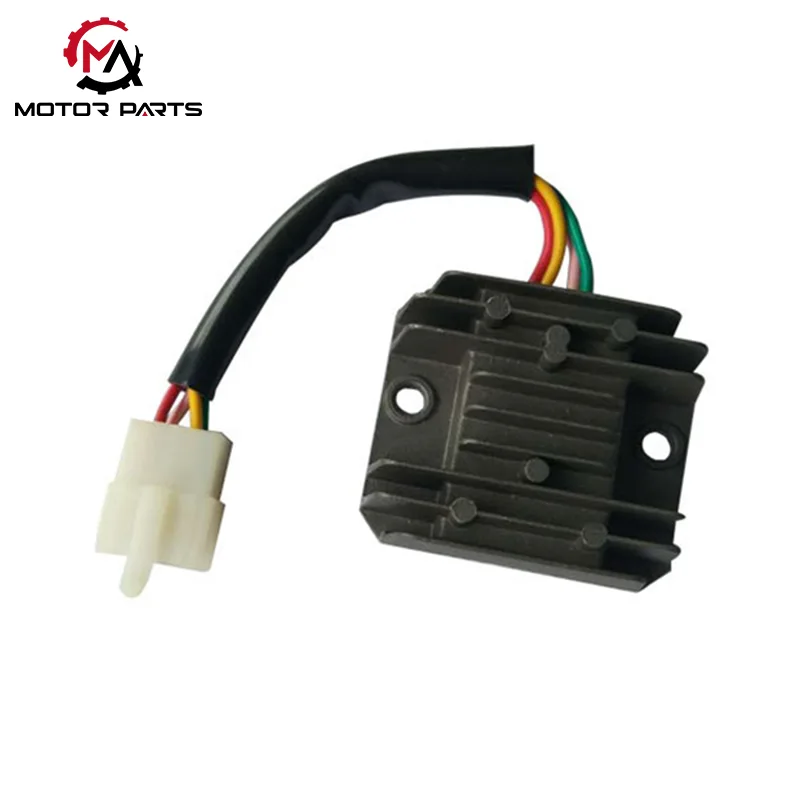

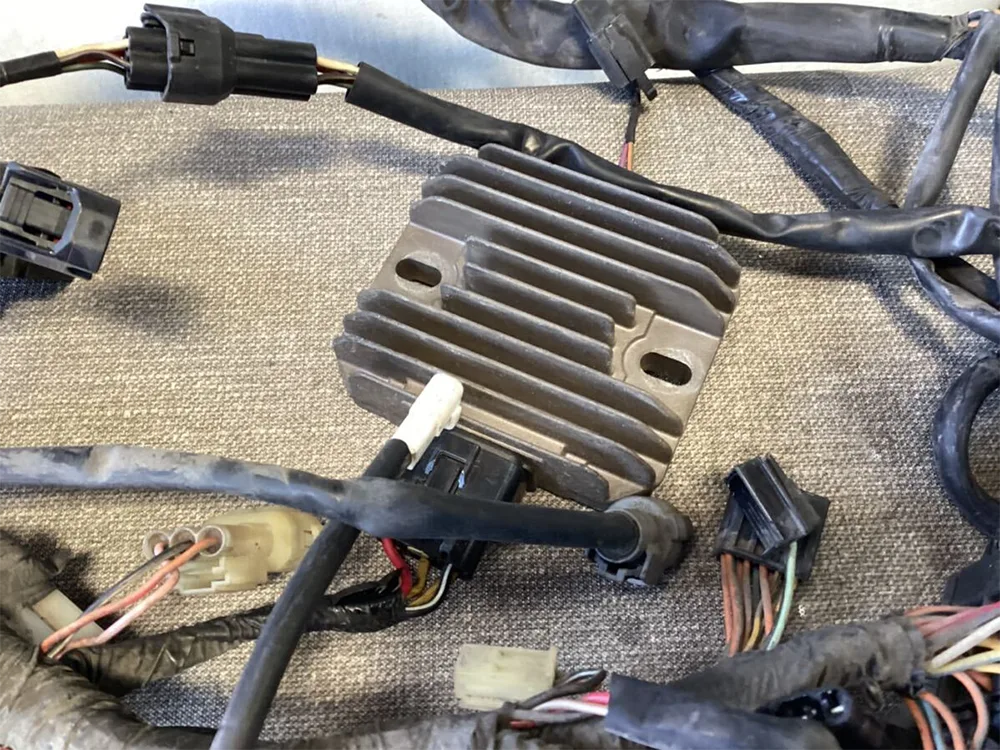

GY6-125 Motorcycle Rectifier

GY6-125 Motorcycle Rectifier, also called rectifier regulator, is the "power center" of the engine power supply system, shaping a power supply triangle system together with the magnetic motor and battery. Its main functions are reflected in two key parts:

Rectification conversion:

The alternating current (AC) generated by the operation of the magnetic motor has the characteristics of periodic changes in current direction and large voltage fluctuations, which cannot directly supply power to on-board equipment. GY6-125 Motorcycle Rectifier has a built-in bridge rectifier circuit, which cuts the sine wave AC into unidirectional pulsating DC through the unidirectional conduction characteristics of four diodes. This process is like installing a "one-way valve" for the current, ensuring that the current always flows in the same direction. Taking 50Hz AC power as an example, after rectification, it forms a DC power with 100 pulsations per second, providing adaptive power for DC devices such as car audio and instrument panels.

Voltage stabilization protection:

Under different operating conditions, the output voltage of the magnetic motor of the motorcycle exhibits severe fluctuations. During idle operation, the voltage may drop as low as 12.5V, making it difficult to meet the float charging requirements of the battery; When driving at high speeds, the peak voltage can reach over 100V, far exceeding the safe range of a 12V battery. GY6-125 Motorcycle Rectifier dynamically adjusts the output voltage through PWM (Pulse Width Modulation) technology. When the voltage exceeds the threshold of 14.8V, immediately activate the shunt circuit to release excess power; When the voltage is below 13.5V, the charging efficiency is improved. This mechanism not only effectively protects the active material of the lead-acid battery plates, preventing the formation of lead sulfate crystals due to overcharging and bulging, but also ensures stable headlight color temperature and constant ignition energy of the ignition coil. In practical applications, this voltage stabilization function can extend the service life of light bulbs by more than three times, and the success rate of spark plug ignition can be increased to 99.8%.

This component directly affects the battery life (such as the charging and discharging protection of YTX9-BS battery) and the stability of the lighting and ignition system, and is a key electrical component of small displacement scooters. Its performance directly affects the durability of the vehicle's electrical system - high-quality rectifiers can increase the number of battery cycles by 40% and reduce the incidence of electronic failures caused by abnormal voltage by more than 65%.

GY6 125 rectifier 4-wire single-phase type (basic model)

Structural features: Adopting a 4-wire 4-pin design, it includes 2 AC input lines (yellow/pink or white/yellow), 1 DC output line (red), and 1 grounding wire (green), sealed in a cast aluminum box with heat sink, and sealed with epoxy resin to prevent moisture.

Voltage stabilization principle: Short circuit clipping voltage stabilization technology is adopted. When the voltage exceeds the standard, the voltage is controlled by short-circuit leakage. The structure is simple, the cost is low, and it is suitable for the basic GY6 125 model (such as ordinary scooters).

Core parameters: AC input voltage 20-60V, charging output current 0-4A, operating temperature range -20 ° C to 60 ° C.

Daily maintenance taboos

It is prohibited to use rectifiers without batteries, otherwise high voltage will break down electrical equipment;

Regularly clean the dust on the heat sink to avoid prolonged idling (which can cause excessive charging load);

When retrofitting LED headlights and other equipment, a rectifier with a larger output current (≥ 6A) should be selected to prevent overload damage.

Product Parameter:

What are the advantages of rectifiers produced by Max Trading?

Voltage Stability: Using closed-loop feedback control technology, the output voltage is accurately locked within the healthy range of 13.8V~14.4V, avoiding battery overcharging and bulging, with actual fluctuations of only ± 0.2V;

Stable current: Built in overcurrent protection circuit, suitable for high load scenarios where both headlights and GPS are turned on simultaneously. The rated current of 18A can meet most modification needs;

Stable heat dissipation: The aluminum alloy fin design improves heat dissipation efficiency by 60%, and the shell only reaches 48 ℃ after continuous operation for 3 hours in a 45 ℃ environment, far below the safety threshold of 70 ℃.
