Max Trading strictly follows the original design standards and production specifications, with reliability and adaptability as the core research and development orientation, and fully guarantees the smooth, stable, and efficient start-up process of the entire vehicle. The CG200 motorcycle overrunning clutch assembly 20 ball starter plate produced by the factory undergoes strict testing to ensure quality.
1.1 Overall structure

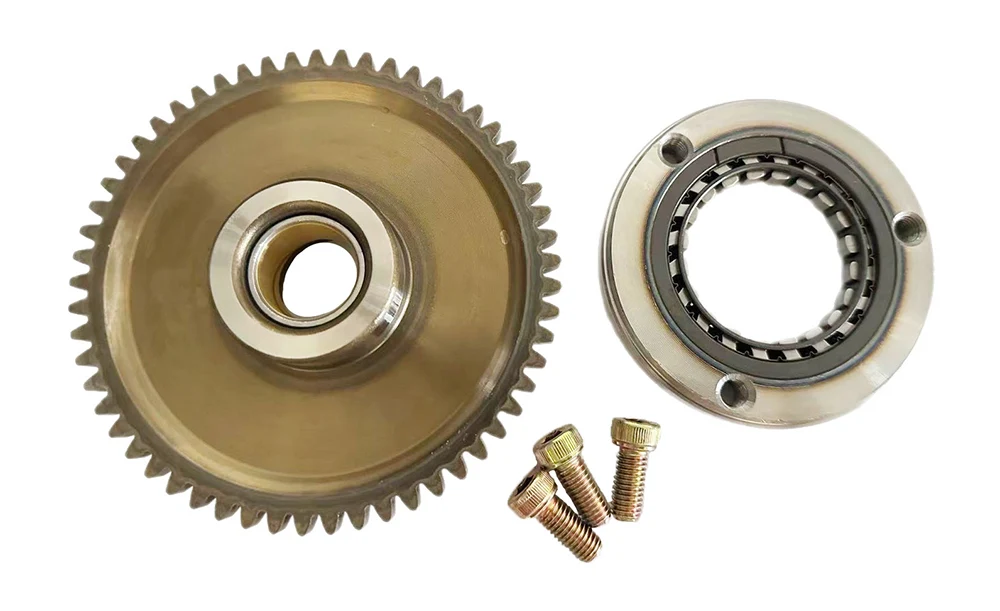

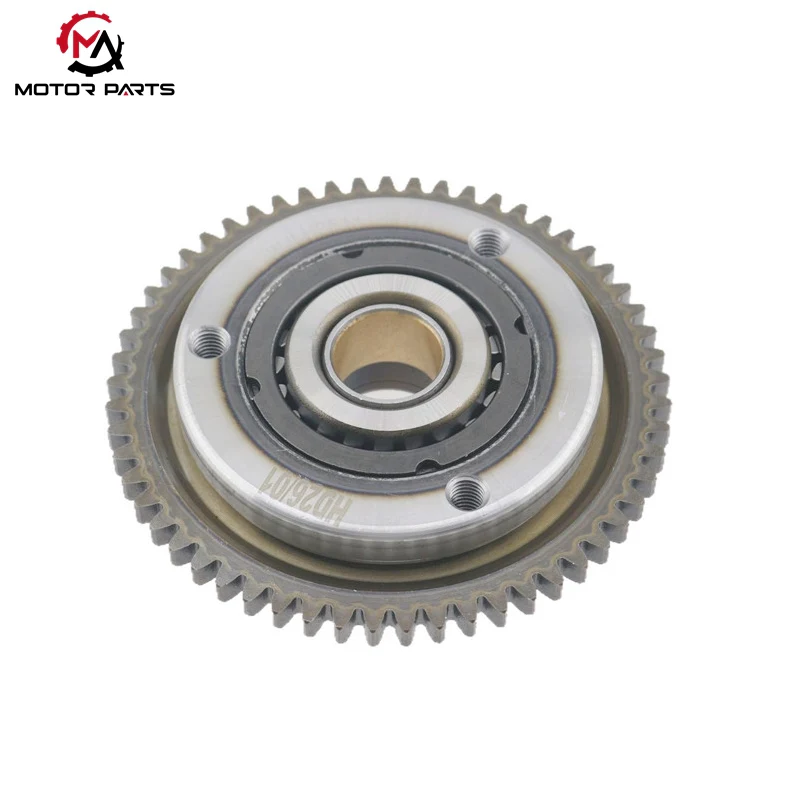

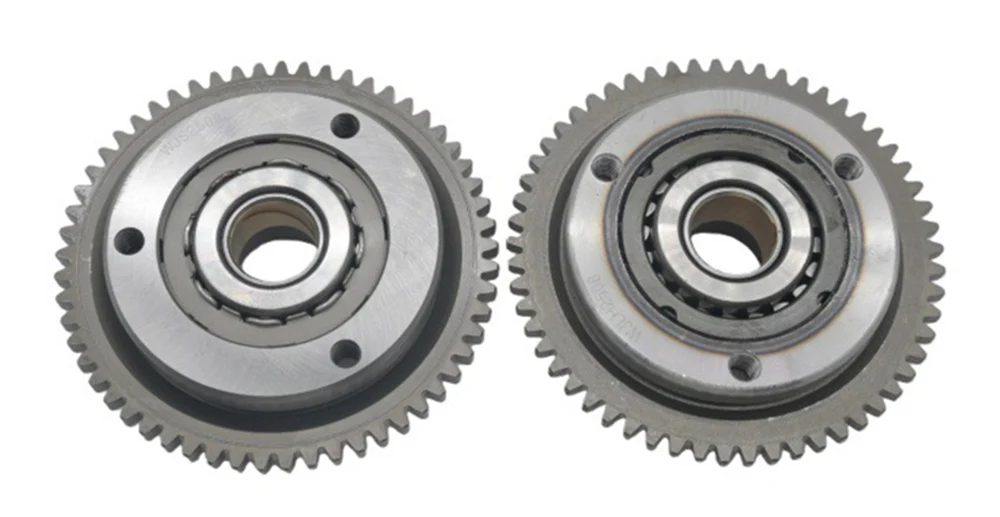

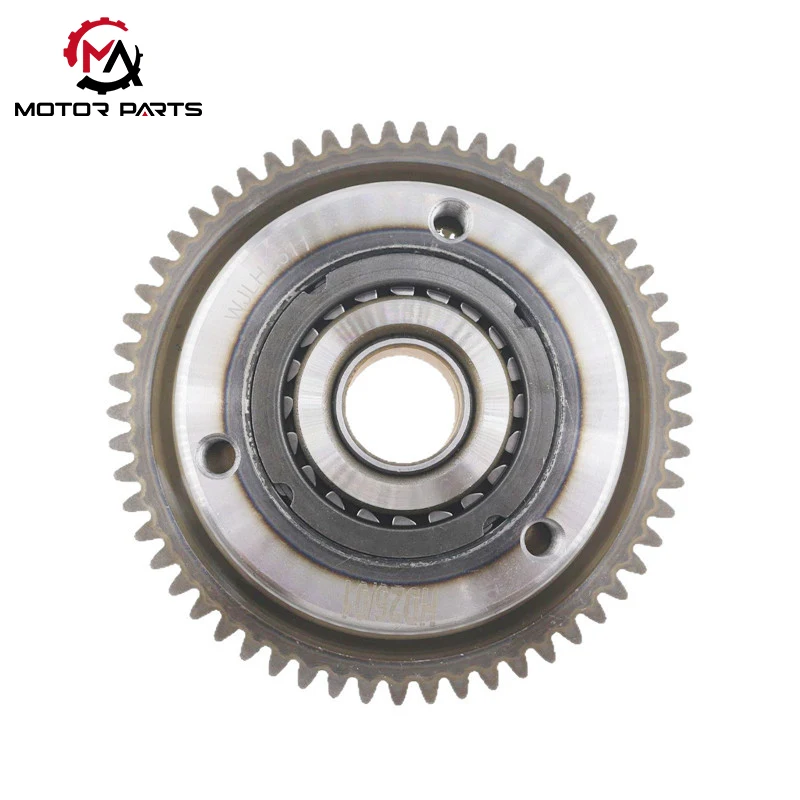

The CG200 motorcycle overrunning clutch assembly 20 ball starter plate adopts the classic original factory structure of outer shell and inner core. The core is equipped with 20 customized shaped ball bearings, matched with exclusive elastic driving parts and precise wedge-shaped positioning groove design, fully replacing the traditional compression spring driving mode. It can ensure that the 20 ball bearings operate synchronously and evenly under force, eliminating the hidden danger of starting jamming from the root and ensuring smooth transmission.
1.2 Outer shell and inner core
Using high-quality wear-resistant steel specified by the original factory, processed by professional quenching technology, effectively improving the transmission torque and service life of components, and achieving efficient and smooth power transmission; At the same time, it has precise one-way transmission characteristics, which can effectively prevent the engine from dragging the starter motor backwards, ensuring the safe operation of the starting system in all aspects.
The overall structure of the CG200 motorcycle overrunning clutch assembly 20 ball starter plate strictly conforms to the original design specifications, and can directly replace original accessories without additional modification and debugging, greatly improving assembly efficiency.
Our company relies on imported precision casting equipment and ISO9001 quality system to carry out precision casting processing on the core components of the CG200 motorcycle overrunning clutch assembly 20 ball starter plate. We strictly control the production process, with a critical dimension error of ≤± 0.02mm, far exceeding industry standards, to ensure accurate component adaptation.
2.1 Core ball rolling process
Made of high hardness alloy steel material, processed through multiple precision grinding and polishing processes, the surface is smooth without any defects or scratches, and the roughness meets the industry's high standards. It fits tightly and seamlessly with the wedge-shaped positioning groove, effectively reducing friction loss during the transmission process and further improving the smoothness of starting.
2.2 Inner and outer shell technology

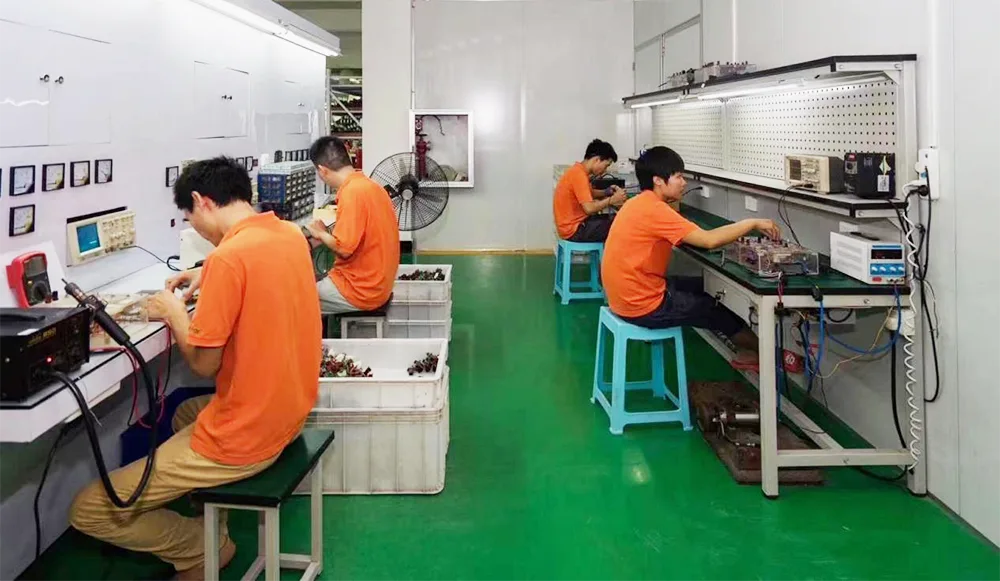

We implement digital and nicety monitoring run through the entire process, with professional technicians on duty to control every production step. The finished CG200 motorcycle overrunning clutch assembly 20 ball starter plate undergoes 100% full inspection standards, and through multiple rigorous testing processes, we completely eliminate various casting defects, effectively ensuring product assembly accuracy and long-term stability.
CG200 motorcycle overrunning clutch assembly 20 ball starter plate compatible with CG200 series models from brands such as Zongshen, Lifan, Longxin, Wanhu, etc.
Compatible with CG150, CG175, CG250, CG300 and other series of compatible models, covering motorcycle and tricycle categories, with strong adaptability.
|
CG200 motorcycle overrunning clutch assembly 20 ball starter plate |
Value |
|
Material |
steel |
|
Shell |
Inner hole 58.9 mm, outer diameter 85 mm, height 13 mm |
|
Inner core (20 bead bodies) |
Inner hole 42.2 mm, outer diameter 58.9 mm, height 13 mm |
|

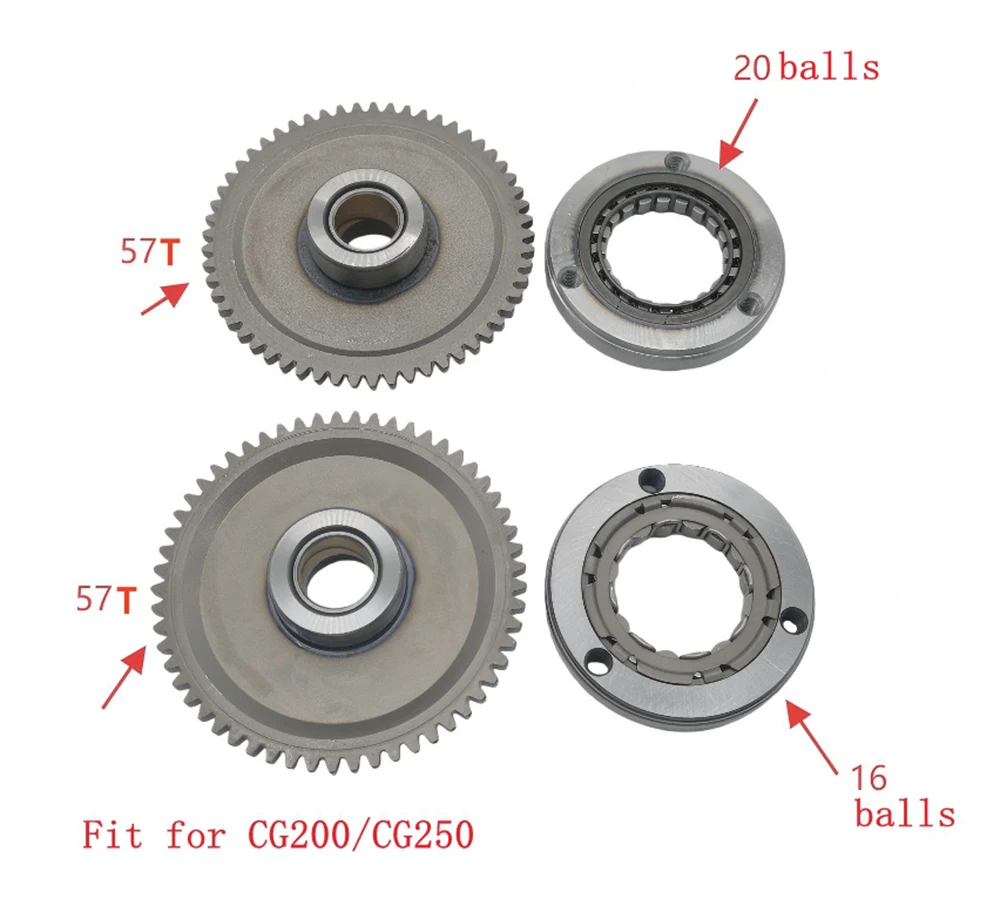

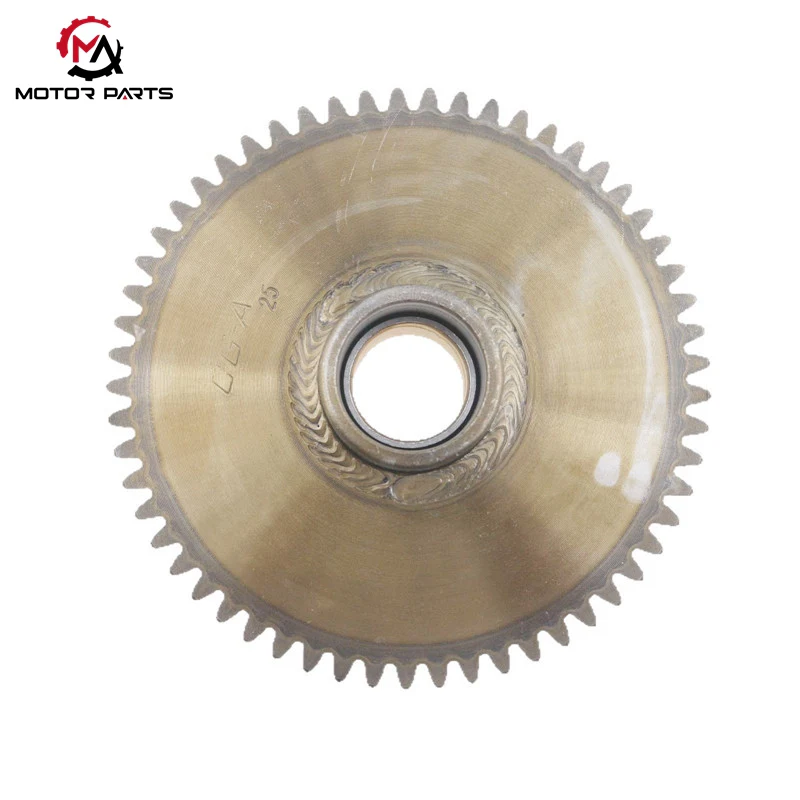

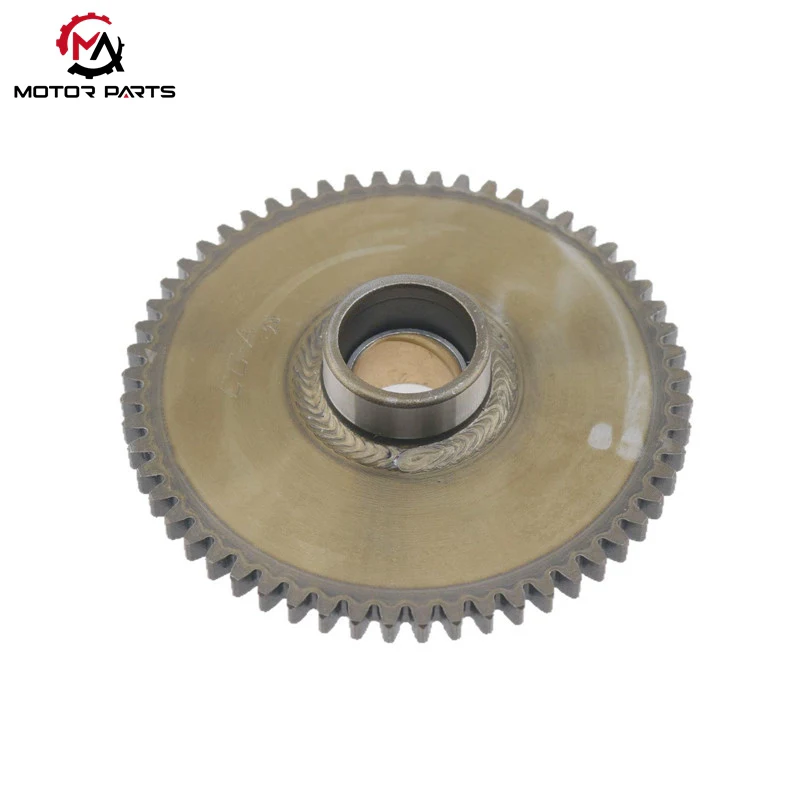

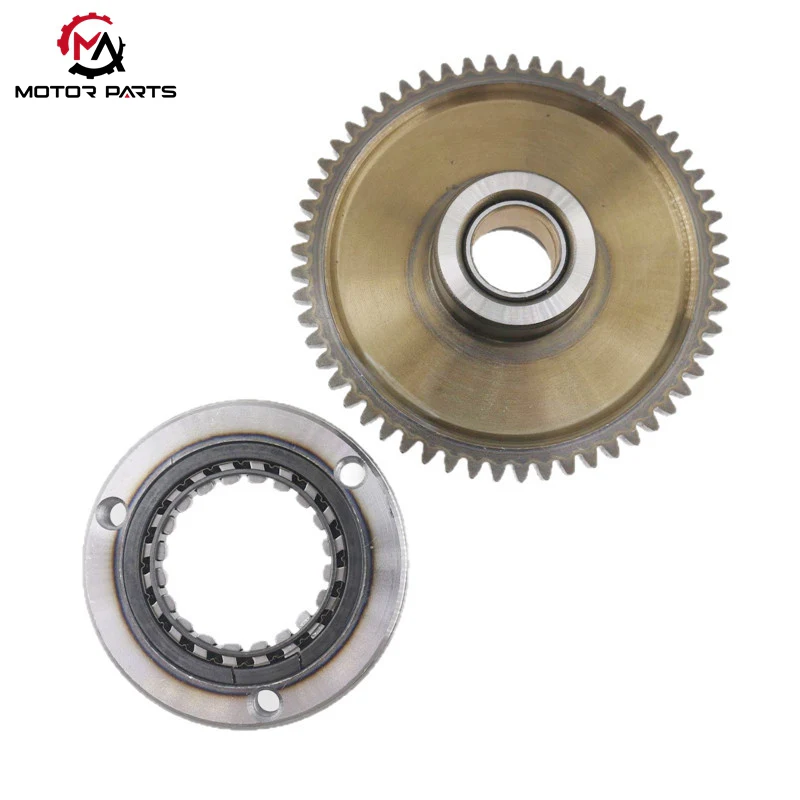

Starting disc with large teeth (57 teeth) |
Outer diameter: 117 mm, inner hole: 83 mm (body mounting position) |
|
Assembly diameter |
About 117 mm (diameter of tooth tip circle) |
1.Brand and Packaging Customization
Labeling: laser/etching/stamping customer logo, model, batch number.
Packaging: Neutral white box/color box, vacuum formed/blister pack, export cardboard box, label, instruction manual (in multiple languages)
2.One stop foreign trade service
Sampling: 3-7 days for sampling, providing size/hardness/performance reports.
Production: Small batch trial production, provide Mass production, full process QC, SPC control.
Export: customs declaration, inspection, certificate of origin (CO/Form A/E/F), logistics (sea/air/express), customs clearance support.
Documents: Provide a complete set of documents like material certification, heat treatment report, inspection report, packing list, invoice, bill of lading, etc.
Our company reaches high consistency in batch production through standardized and regulated production processes, and can stably bear large-scale matching orders from major vehicle manufacturers, efficiently balancing production efficiency and product quality.
