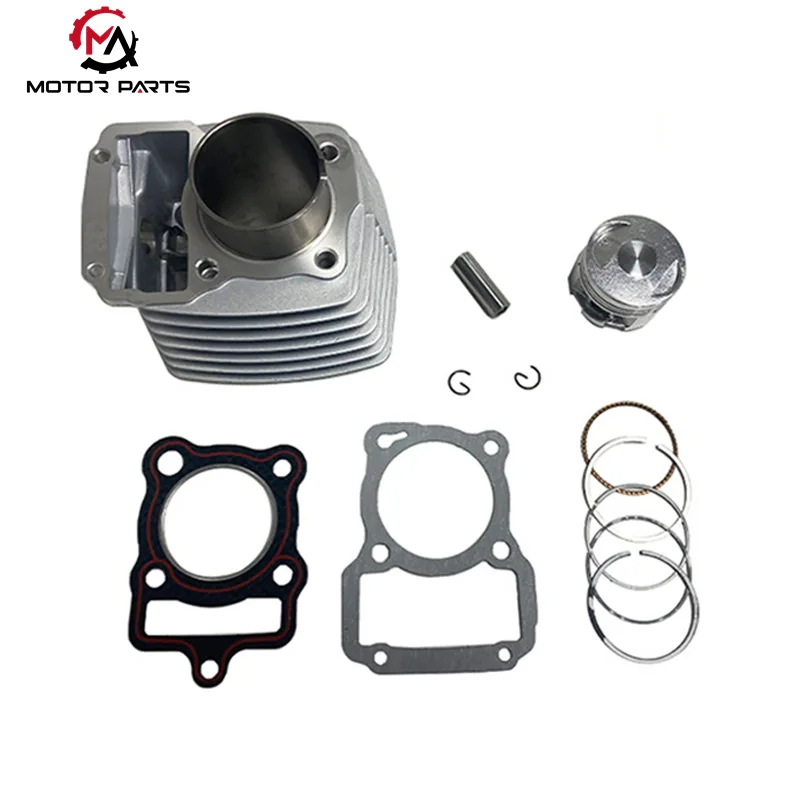

The Motorcycle Cylinder Set for Honda CG125 is a product from Max Trading's China motorcycle cylinder factory, specifically designed for the Honda CG125 engine. This set features a lightweight aluminum alloy construction, a standard 56.5mm bore, a displacement of 124.6cc, and a compression ratio of 9.0:1, balancing power output and durability, making it suitable for daily commuting and work vehicles.
The Motorcycle Cylinder Set for Honda CG125 is manufactured using high-quality aluminum alloy material, effectively reducing engine weight while improving thermal conductivity.
Key material advantages include:
High-precision machining ensures accurate internal dimensions, allowing the piston to fit closely with the cylinder wall. This tight tolerance minimizes blow-by and unnecessary energy loss during combustion.
With a minimum fuel consumption rate of 367 g/(kW·h), this cylinder set maximizes fuel utilization and supports economical engine operation.
The 9.0:1 compression ratio provides a good balance between power output and durability:
Stable combustion under continuous riding
Reduced knocking risk
Suitable for long-term, high-intensity usage
Extended engine service life
This configuration is especially suitable for regions where CG125 motorcycles are used as daily transportation or work vehicles.

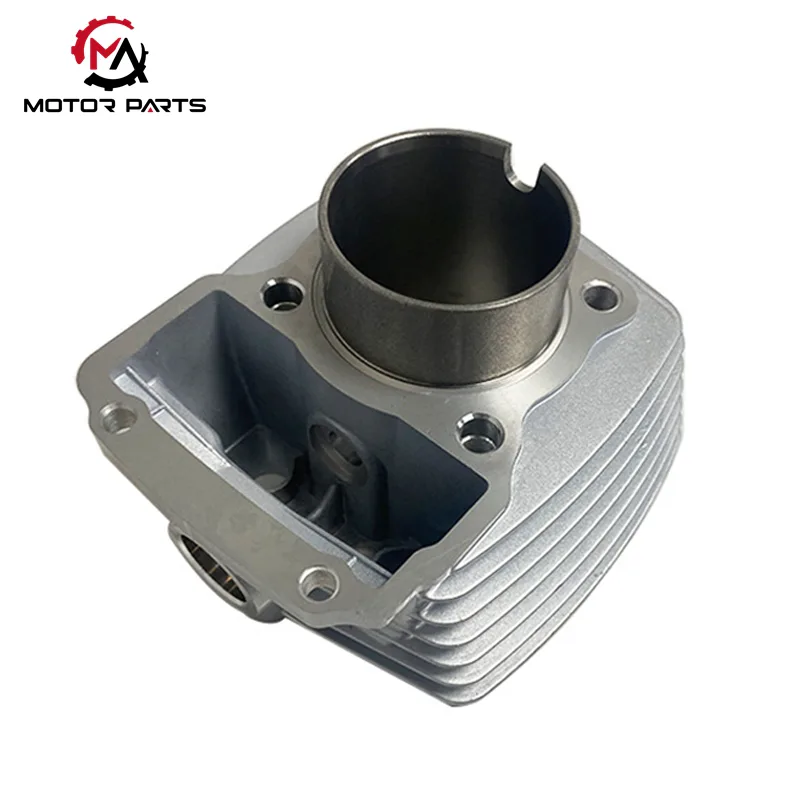

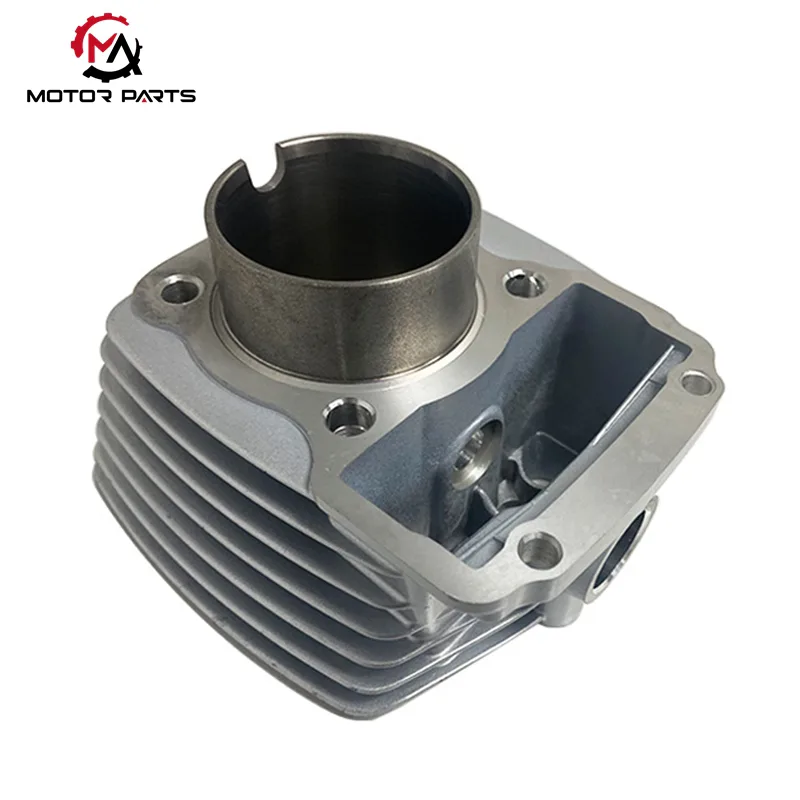

The Motorcycle Cylinder Set for Honda CG125 adopts a classic single-cylinder, air-cooled, four-stroke structure with a standard bore size of 56.5 mm and a displacement of approximately 125 cc.
Performance characteristics:
Whether used for city commuting or rough road riding, this cylinder set delivers dependable performance.
This cylinder is precisely engineered to match Honda CG125 engine specifications, ensuring:
Direct replacement without modification
Accurate alignment of mounting holes
Simple installation process
Easy maintenance and repair
This reduces installation time, labor costs, and overall maintenance expenses for workshops and end users.
|
Parameter Category |
Specific Specification Description |
|
Cylinder Diameter |
56.5mm |
|
Total Height |
- Overall height from the top of the cylinder to the bottom of the cylinder: 110mm |
|
- Combined piston stroke height: 49.5mm |
|
|
- Effective stroke height of the actual movement of the piston in the cylinder: 62mm |
|
|
Displacement |
124.6cc |
|
Compression Ratio & Spark Plug Compatibility |
Compression ratio: 9.0:1; compatible with spark plug models: CR6HSA or D8EA |
|

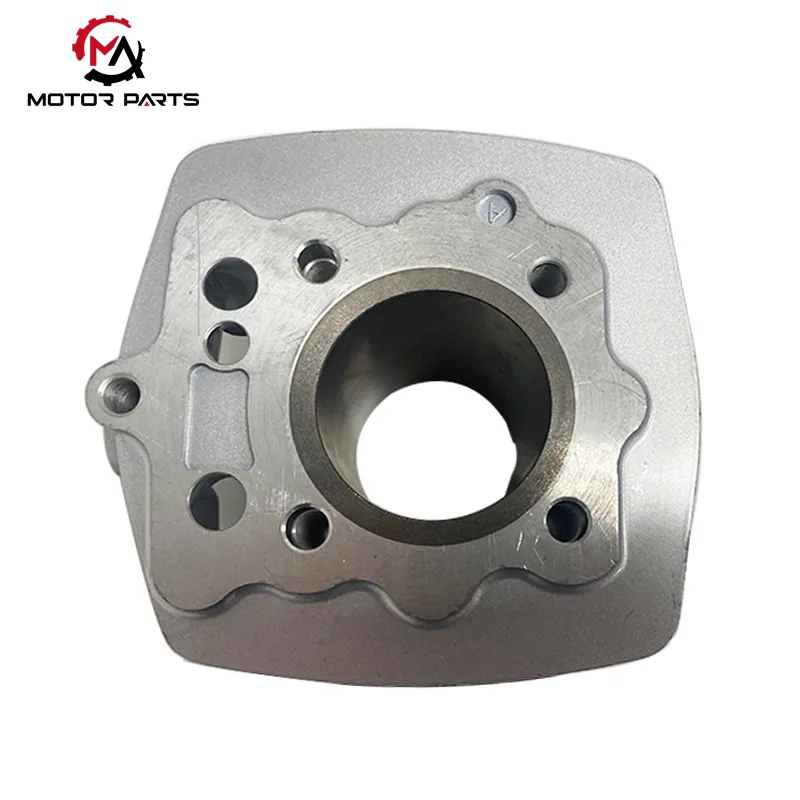

Cylinder Bottom Mounting Holes |
4 symmetrically distributed fixed bolt holes, with a diameter of 8mm and a diagonal hole spacing of approximately 90mm |
|

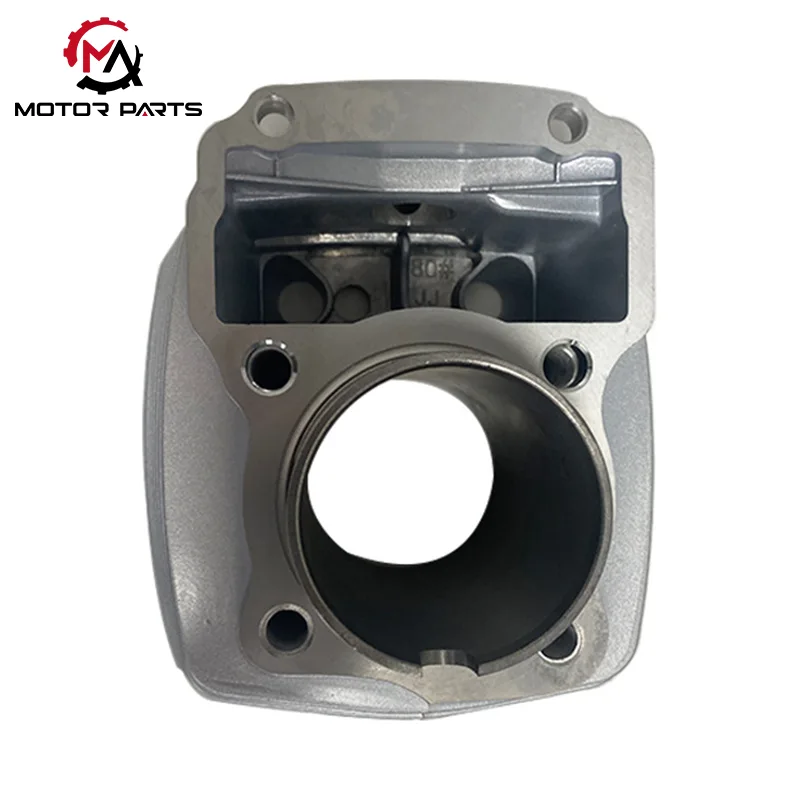

Connection Surface Between Cylinder Top and Cylinder Head |
6 bolt holes with a diameter of 6mm, arranged in a circular pattern, with a center circle diameter of about 70mm |
|
Piston Pin Related Dimensions |
- Piston pin diameter: 16mm, compatible with piston pins of 45mm length |
|
- Piston ring groove width: 1.5mm (air ring) and 2.0mm (oil ring) |
|
|
Fuel Consumption per 100 Kilometers |
1.6 (L) |
|
Torque |
9.5~10.5 Nm (around 6500 rpm) |
|
Power |
7.1~7.5 kW (8000~8500 RPM) |
