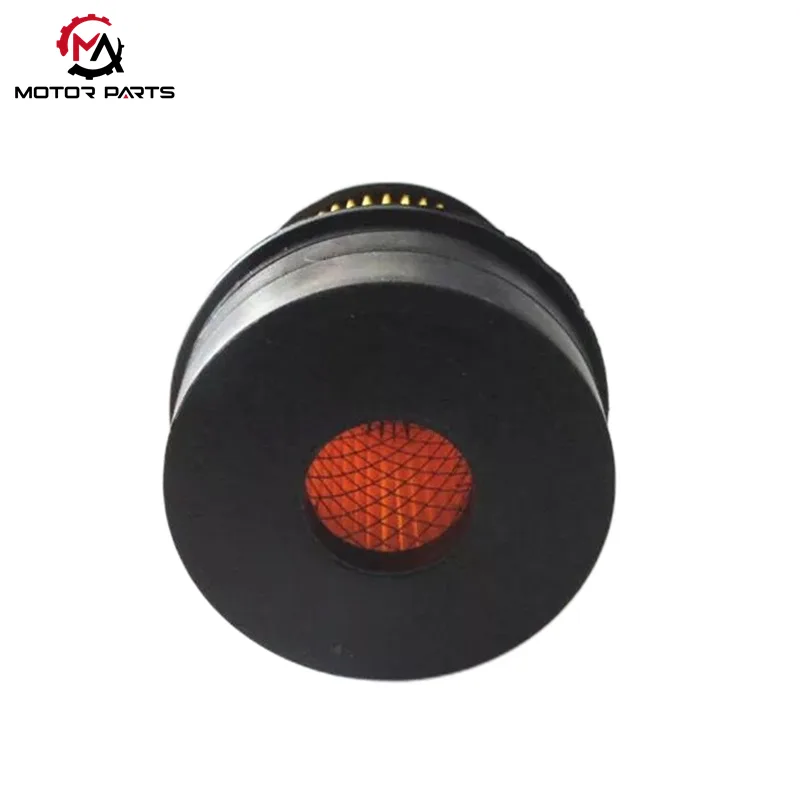

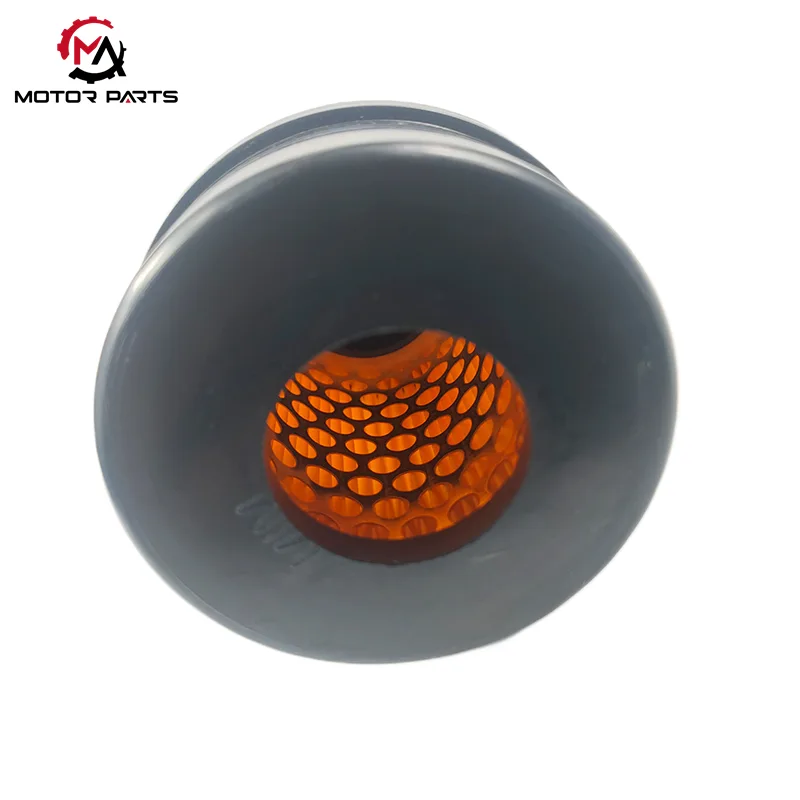

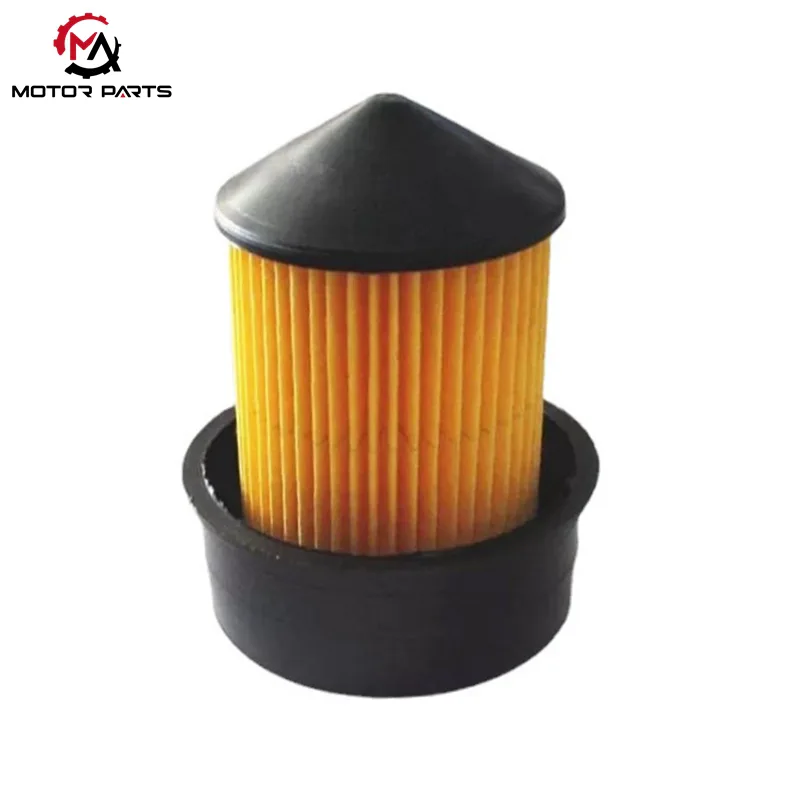

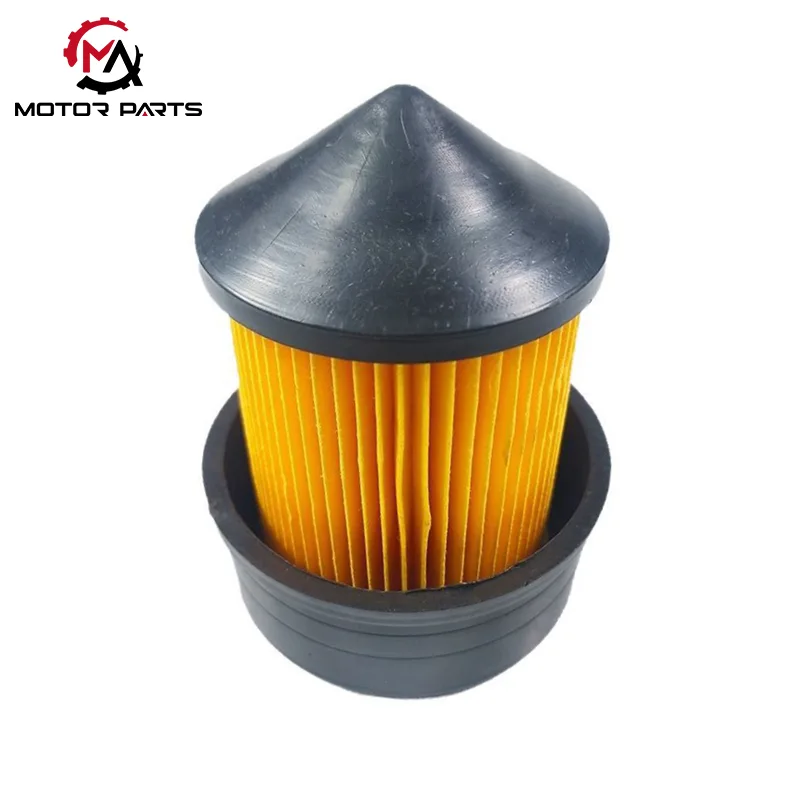

JH70 Motorcycle Air Filter

Max Trading supplier provides high-performance JH70 motorcycle air filters designed to protect the engine core and ensure stable working conditions. As the first line of defense for your engine intake system, our air filter efficiently filters dust, sand, water vapor and other harmful impurities, reduces engine wear, maintains stable power output, lowers fuel consumption and avoids cylinder scoring caused by unbalanced oil‑air mixture.

product purpose: to protect the engine core and ensure stable working conditions

The JH70 motorcycle air filter is the "first line of defense" of the engine intake system.

Core function

1.Efficiently filter the air entering the combustion chamber, intercept impurities such as dust, sand, and water vapor.

2.Prevent them from exacerbating the wear of precision engine components, and prevent power loss, fuel consumption increase.

3.Even cylinder pulling caused by imbalanced oil air mixture ratio.

Targeted improvements based on the operating environment

For the use scenarios of JH70 commuting and short distance transportation, we optimized the filter paper structure of the motorcycle filter to achieve a balance between over 95% impurity interception rate and sufficient intake air volume, ensuring stable engine operating conditions.

Product material: precise selection that balances filtration performance and durability

Considering the usage environment and cost of JH70 motorcycle air filter, we adopt a composite material solution of "core filter layer+support structure" to balance safety and performance:

Core filtering material

The mass-produced model uses 120g/㎡ high gram heavy wood pulp filter paper, which can intercept impurities ≥ 5 μ m and is resistant to oil and moisture, suitable for complex scenarios; After high-temperature shaping treatment, the filtration performance of the engine is stable under high-temperature conditions.

Auxiliary structural material

PP engineering plastic shell, resistant to impact and aging, suitable for driving vibration and temperature difference; The EPDM rubber sealing strip fits tightly to prevent unfiltered air from entering.

Product applicable models: precise adaptation, covering mainstream vehicle models

As a derivative part of the JH70 original factory, we mold according to the dimensions of the Jialing 70 intake system to ensure precise installation, while also covering models on the same platform. The scope of adaptation is as follows:

Core adaptation

Jialing JH70 full series, original replacement part number JD-P2033, can be directly replaced without structural changes.

Same platform models

Dayang DY90, Zongshen ZS90 and other curved beam cars, with the same intake interface and hole position, can be directly used interchangeably.

Modification adaptation: The mushroom head modified version is suitable for curved beam cars under 100cc, such as the Honda CD70, to meet personalized needs.

Product Parameter:

Installation Tips from Max trading

1.Spare tools: Prepare a Phillips/Phillips screwdriver (depending on the vehicle model) and a clean cloth. The tools should be free of oil and pollution.

2.Find the component: On the left side of the JH70 engine, orient the plastic housing with buckles/screws (tagged with "Air Filter" or intake label).

3.Detached old parts: Unscrew 2-3 fixing screws from the housing and open the cover, detach the old filter, and wipe the dust inside the housing with a cloth.

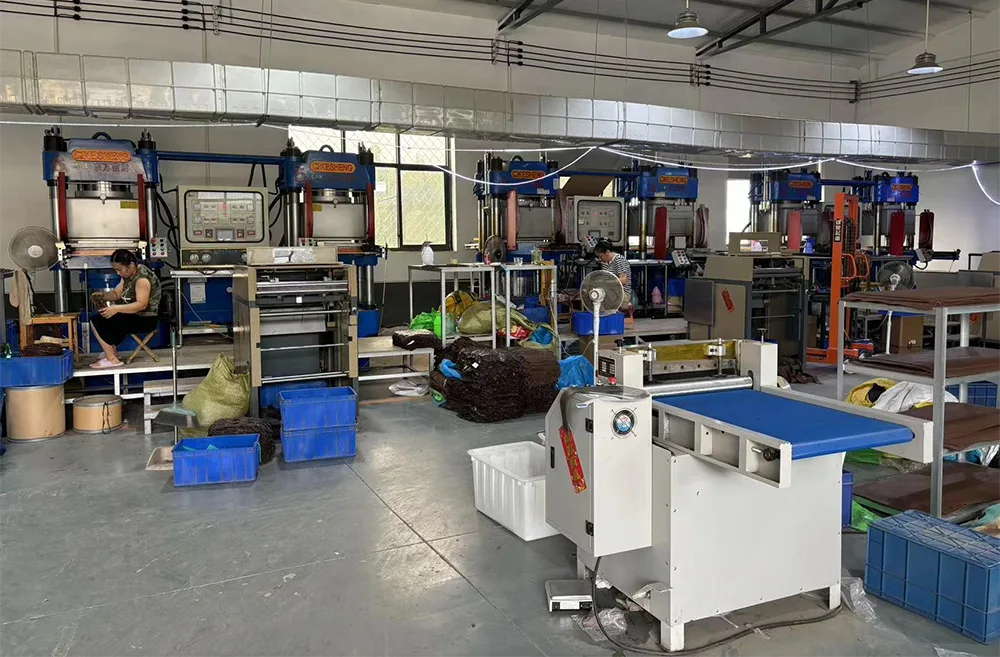

Our production line
