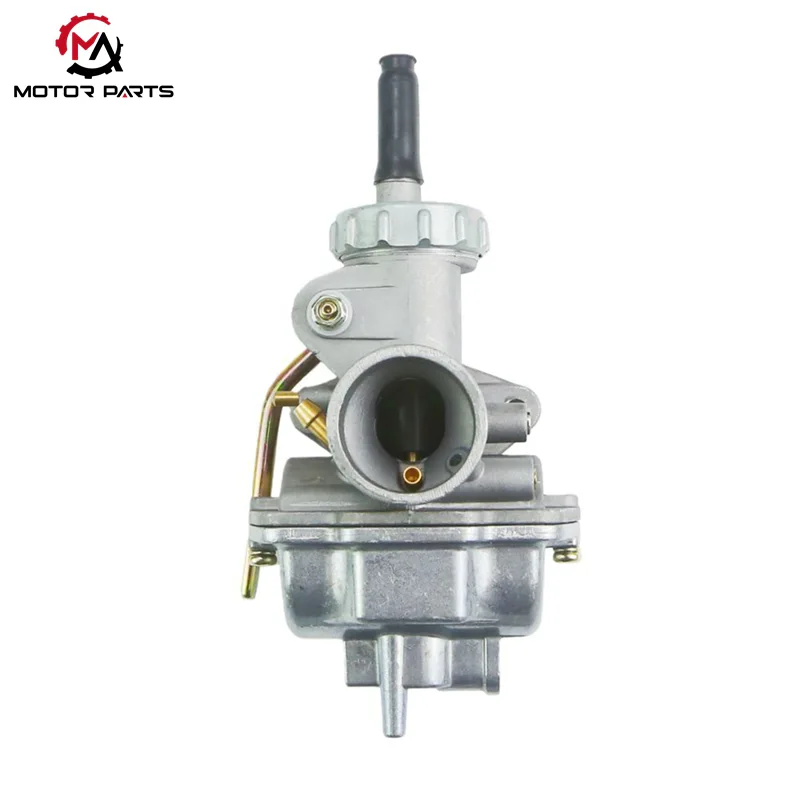

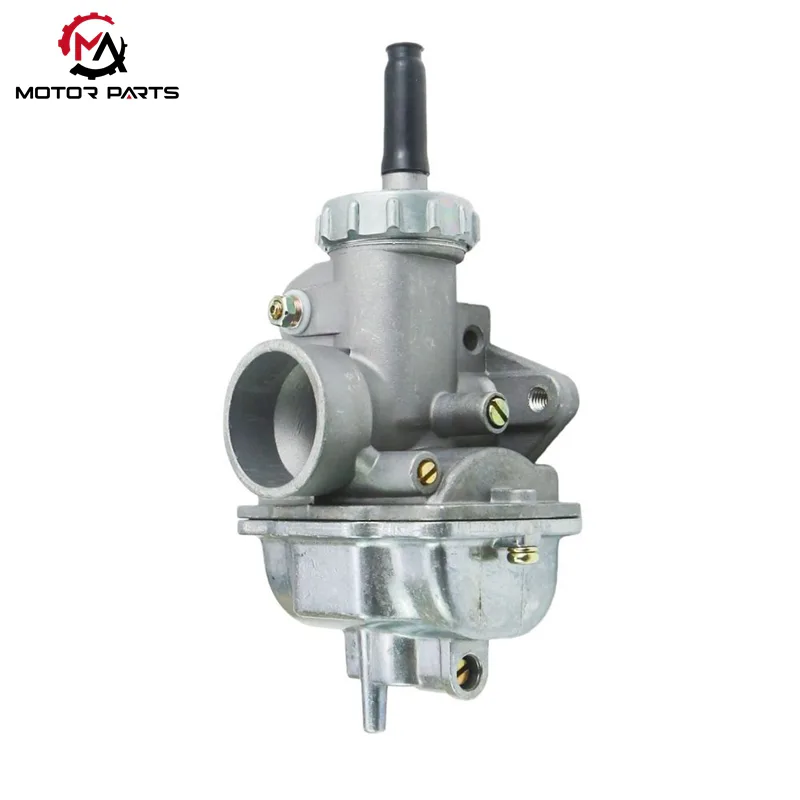

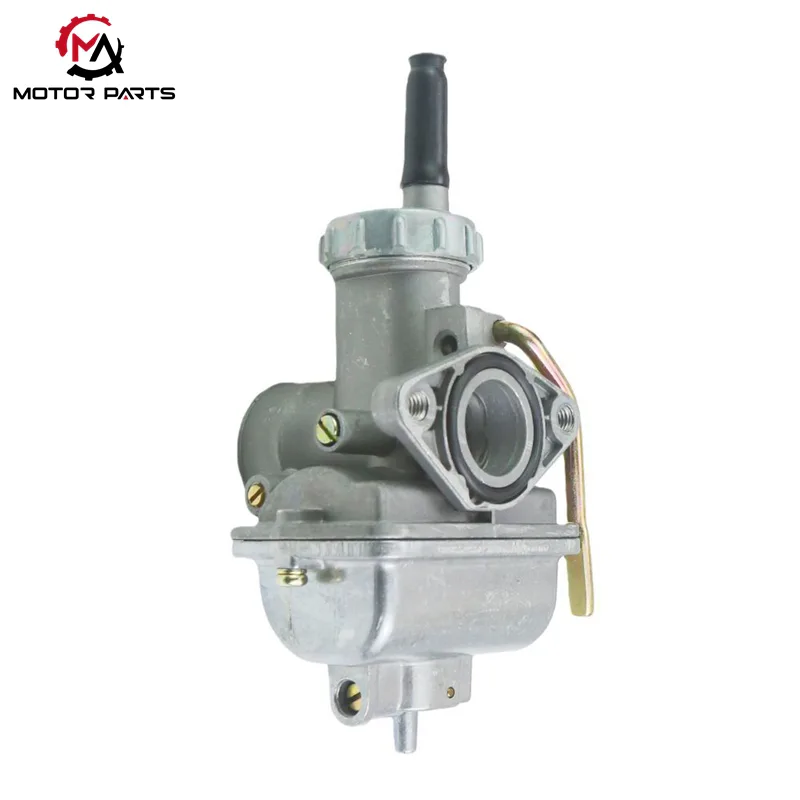

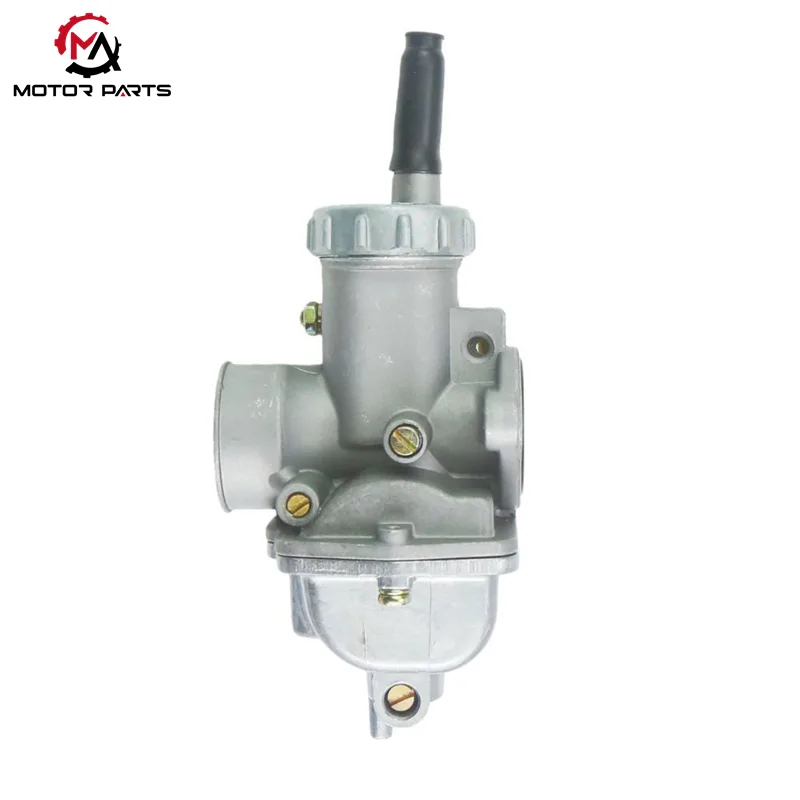

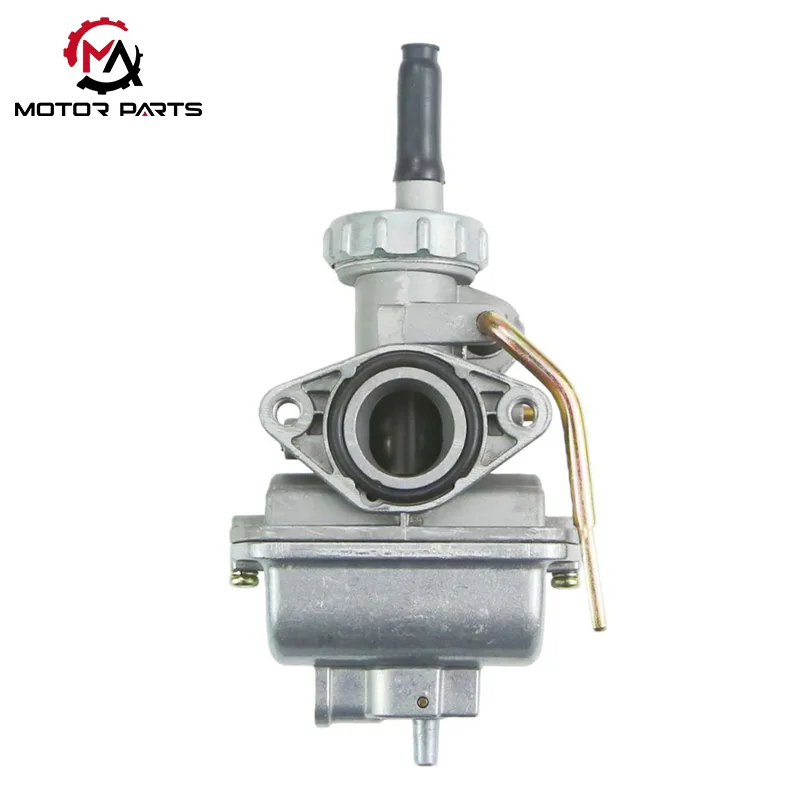

ATV Off-road Motorcycle Carburetor PZ20

Product definition: Precise supply solution focused on off-road scenarios

From the perspective of factory strategy, the Max Trading's ATV off-road motorcycle carburetor pz20 is a specialized fuel mixing device developed specifically for 50cc-125cc ATV beach off-road motorcycles. Its definition focuses on a triple core:

Precise adaptation

With thousands of tests matching mainstream brands such as Taotao, and a 48mm flange installation center distance to ensure assembly compatibility.

The performance is controllable

The 20mm mixing chamber design achieves a maximum power of 4.0KW and a fuel consumption of 1.7L per hundred kilometers, balancing power and economy.

The quality is strict

We following the ISO/TS16949:2009 standard. The fatigue resistance test of key components gets to 200 hours, and the service life in off-road environments exceeds 1000 hours. As a strategic foundational component of the factory, its production capacity is deeply tied to downstream host factories, supporting global bulk demand.

Product Structure: Production Implementation of Precision Modular Design

The ATV Off-road Motorcycle Carburetor PZ20 adopts a "five core module" design, which not only guarantees production accuracy, but also facilitates quality inspection and maintenance. Each module follows strict factory internal control standards.

Basic bearing module

Zinc aluminum alloy die-casting shell (tensile strength+30%), CNC precision size control, ternary catalytic passivation layer anti salt corrosion, ensuring structural stability.

Fuel control module

Composite float+ruby needle valve for nifty pressure stabilization (oil level fluctuation ± 1mm), with no leakage after 100000 tests and stable fuel supply.

Mixed gas regulation module

Bee waist throat accelerates airflow, laser drilled fuel injectors precisely control fuel volume, integrated idle/acceleration refueling function, suitable for multiple working conditions.

Control execution module

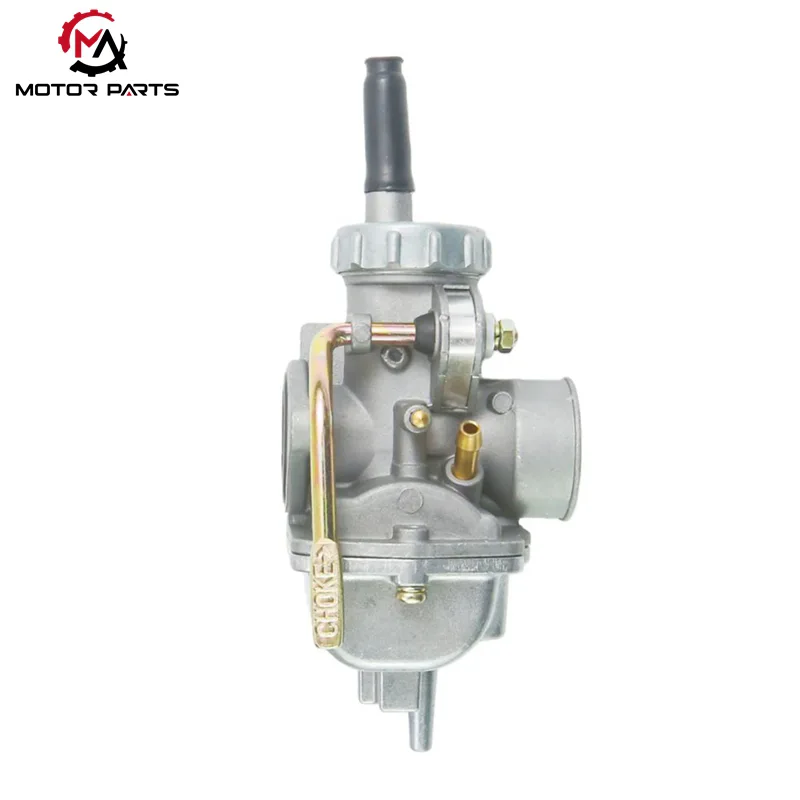

The manually controlled air damper facilitates cold start, and the chrome plated components are matched with food grade grease for smooth control and air tightness compliance.

Filtering and protection module

Equipped with a Φ 32mm interface and a high-efficiency air filter, the sealing ring and negative pressure test provide dual dust prevention to reduce internal carbon deposition.

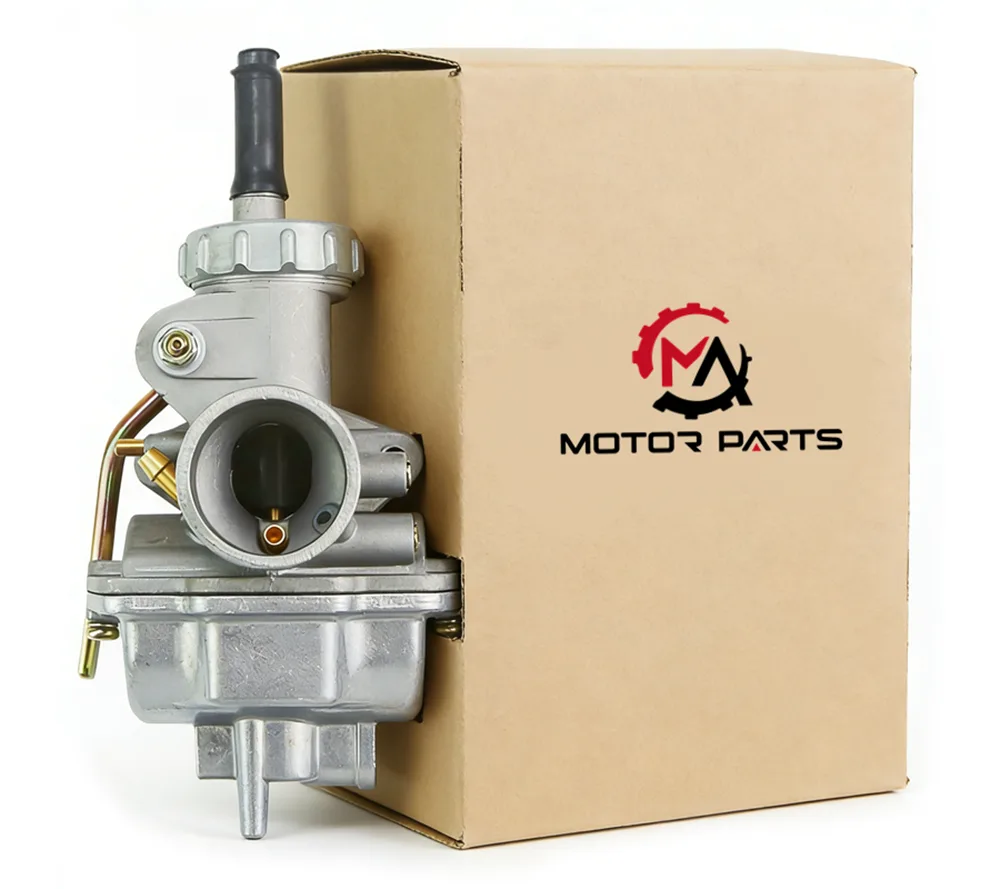

Product packaging: a systematic solution that balances protection, logistics, and branding

The packaging of ATV Off-road Motorcycle Carburetor PZ20 is based on the principles of "three-level protection, efficient logistics, and flexible adaptation", combined with export and retail needs, using a combination of standard and customized solutions to ensure the safety of the product from the factory to the customer.

Primary inner packaging

"anti-static bag+customized foam" combined protection, foam wrapped vulnerable parts to avert collision, anti-static bag protected precision components, attached with qualified labels to achieve quality traceability.

Secondary packaging

Single unit packaging in a 14cm × 11cm × 9cm neutral corrugated cardboard box, with built-in bubble wrap for augmented protection, customizable OEM labeling, and ventilation holes designed to prevent condensation and rust corrosion.

Third level outer packaging

Five layer corrugated cardboard boxes (40 units per box) compatible with standard pallets to increase logistics efficiency, reinforced with PET strapping, and resistant to drops of 1.5 meters; Small batches use postal packaging to ensure end-to-end safety.

Additional services

Provide packing lists for inventory management, and export compliance testing reports; Customizable easy to tear packaging can assist host factories in efficient assembly.

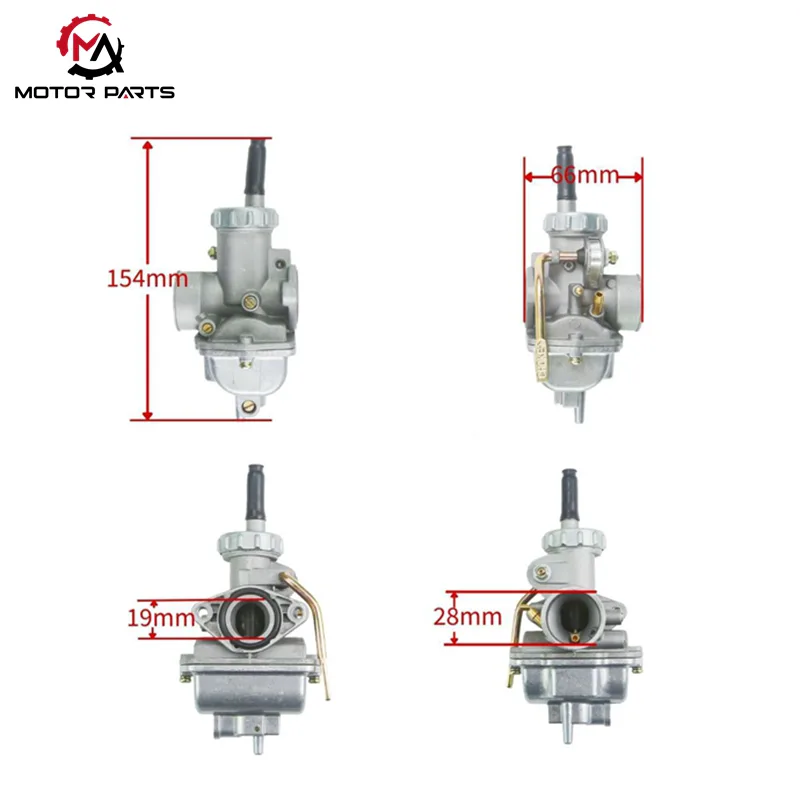

Product Parameter:

Why choose Max Trading's motorcycle carburetor

1.Full chain control capability of "precise definition precision manufacturing precision packaging"

2.Through deep collaboration with downstream ATV host manufacturers, this product has become the mainstream choice for fuel systems in 50cc-125cc off-road vehicles worldwide

3.We will continue to iterate our production processes and develop upgraded products that better meet global emissions regulations and energy efficiency needs.
