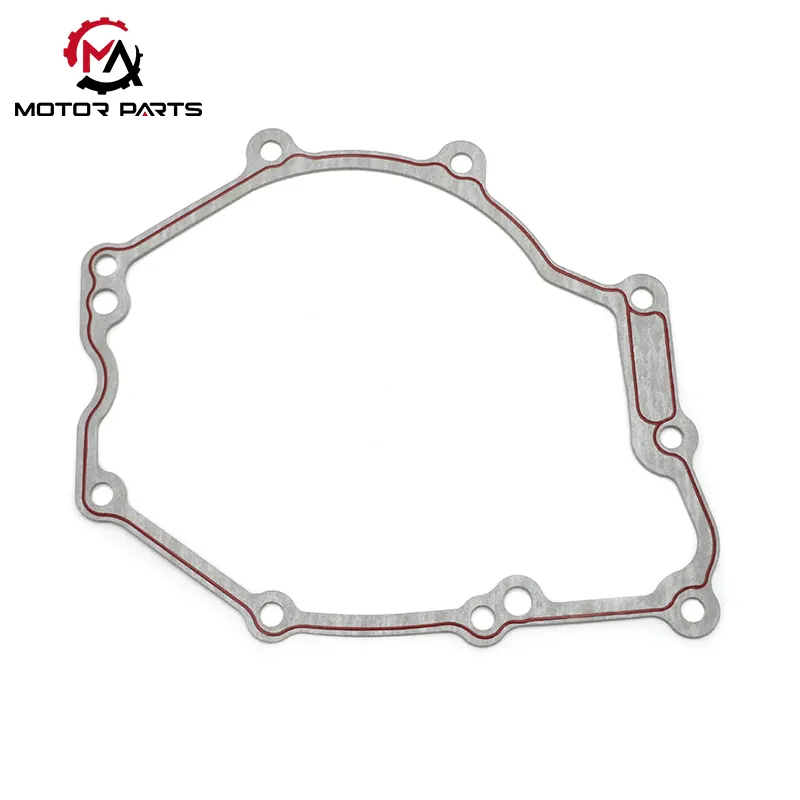

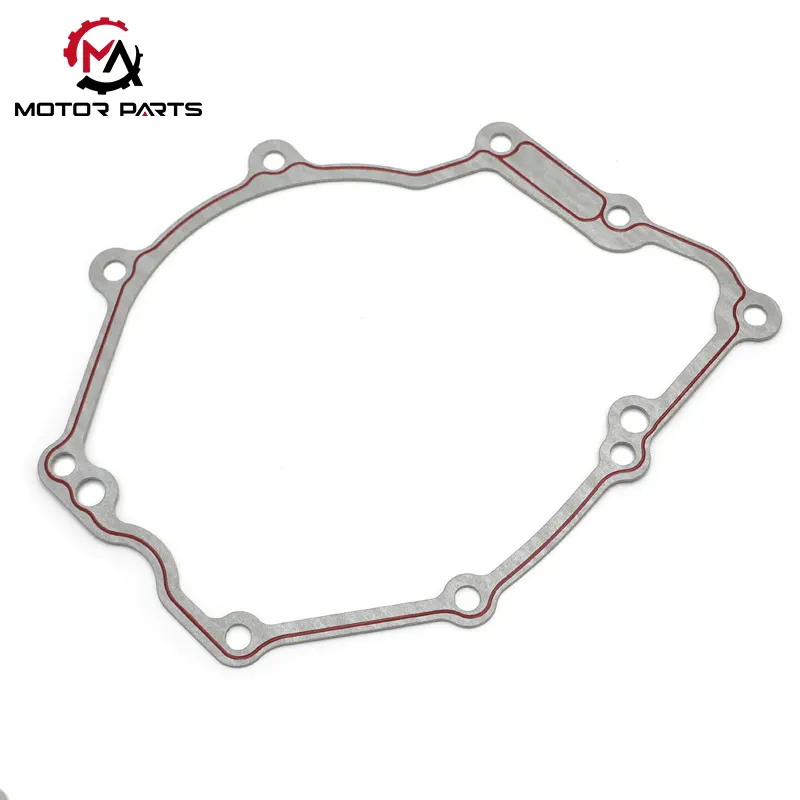

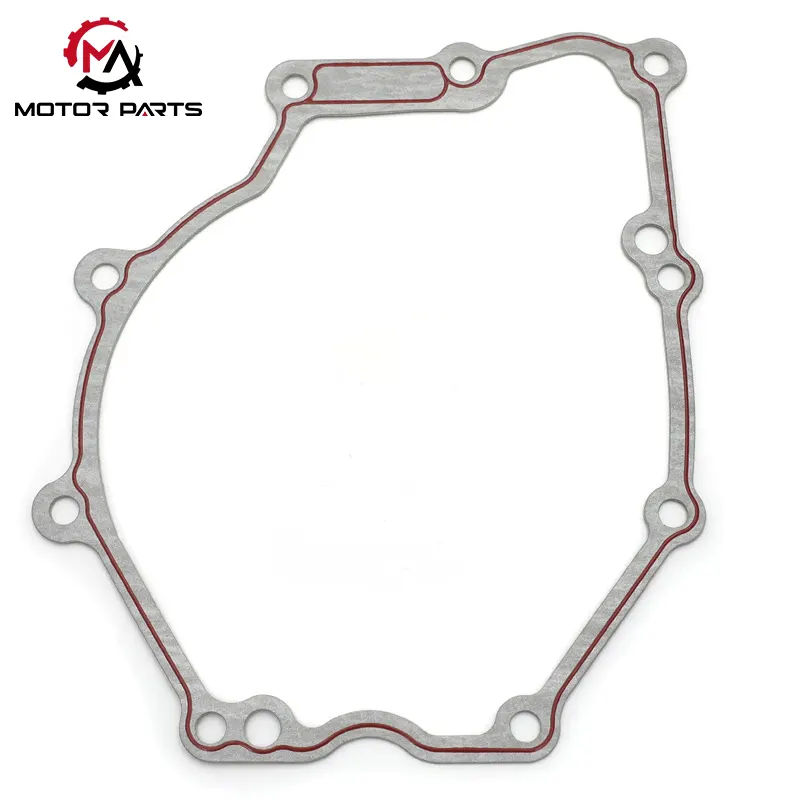

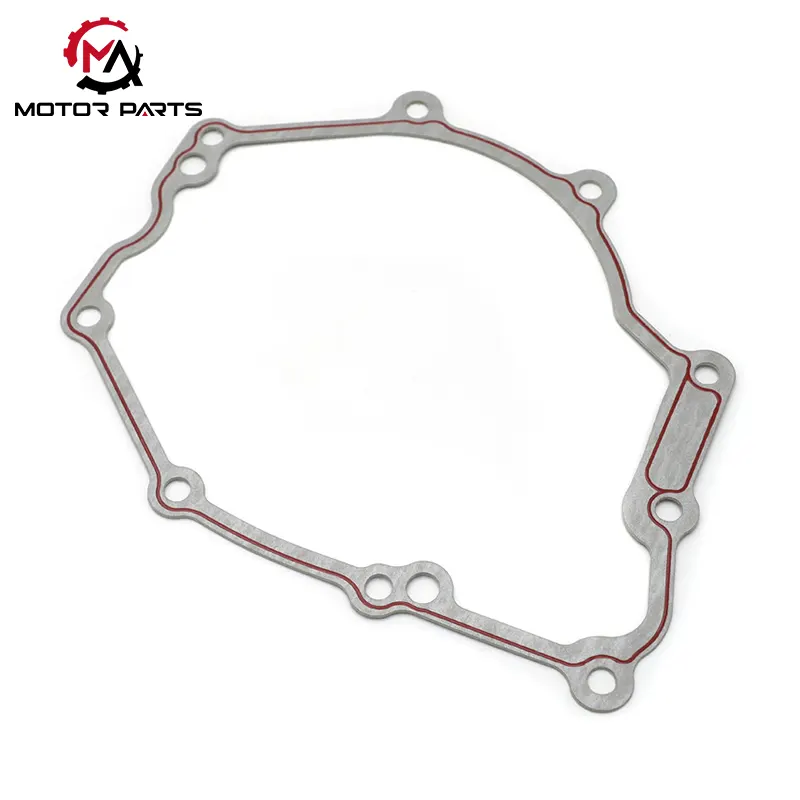

Yamaha YZF-R6 Motorcycle Engine Gasket

Basic Material System

Max Trading specializes in providing high-performance Yamaha YZF-R6 Motorcycle Engine Gaskets, utilizing advanced composite material structures for both OEM specifications and mainstream upgraded versions. Below is a detailed technical specification analysis:

1. Upgraded Material Performance: Dual-Material System

Our Yamaha YZF-R6 Motorcycle Engine Gasket utilizes a dual-material system composed of Nitrile Rubber (NBR) and Fluorocarbon Rubber (FKM):

FKM (Fluorocarbon Rubber): Possesses aerospace-grade high-temperature resistance, capable of withstanding extreme conditions up to 250℃. Its resistance to engine oil corrosion is more than 3 times higher than NBR, making it the preferred choice for high-performance upgrades.

NBR (Nitrile Rubber): Provides basic sealing performance assurance.

2. Structural Reinforcement Design

High-end models feature innovative structural designs to ensure stability in extreme environments:

Core Structure: Incorporates a multi-layer steel (MLS) composite structure or a metal support frame.

Technical Advantages:

Superior Compression Resistance: We have enhanced the compression strength of the seal.

Elastic Memory: This product also features elastic recovery capabilities.

Long-lasting Shape Retention: This structure and frame prevent the engine gasket from undergoing permanent deformation in high-temperature environments, reducing the risk of failure.

Extreme environmental adaptability

For the extreme high temperature and high pressure conditions of the R6 high-speed engine (red line speed beyond 14000rpm), the Yamaha YZF-R6 motorcycle engine gasket needs to have great performance:

High temperature resistance: Verified by rigorous 50 hour continuous high-temperature cruising test, it always keeps zero leakage and zero displacement, demonstrating strong high temperature adaptability;

Aging resistance: the original sealing gasket can ensure stable sealing within an ultra long service life of 30000 km, while the upgraded version can further significantly improve the durability and service life of the product through nickel plating process or special coating treatment.

The professional model adopts five axis CNC precision milling technology to control the flatness tolerance of the sealing surface of the Yamaha YZF-R6 motorcycle engine gasket within ± 0.01mm. Combined with Yamaha's independently developed nanoscale PTFE composite coating, a molecular level adsorption sealing structure is formed at the micro level. This dual effect sealing technology can effectively resist the gap changes caused by high-frequency vibration and thermal expansion and contraction of the engine. After bench testing, it can still maintain 99.8% sealing integrity at 18000 revolutions per minute.

The sealing gasket edge of Yamaha YZF-R6 motorcycle engine adopts R3 arc transition+oblique stepped design, and the stress distribution is optimized through finite element simulation, reducing the risk of tearing by 75% during installation. The Racing series is exclusively equipped with a triple positioning hole system: the central reference hole guarantees axial positioning, and the symmetrical positioning pin holes on both sides are fitted to special tools, which can shorten the installation time from the conventional 15 minutes to 5 minutes, dramatically improving maintenance efficiency.

Product Parameter:

Max Trading's motorcycle sealing gasket installation precautions

Old gasket removal: Use a special plastic scraper to carefully clean the installation surface, thoroughly remove the residue of the old gasket, and avoid scratching the joint surface with metal tools, which may affect the sealing performance.

Bolt tightening specification: Strictly follow the torque standard in the instruction manual and use a staged diagonal tightening method (especially for the crankcase gasket) to guarantee uniform force distribution and prevent local deformation from causing leakage.

Accessory matching verification: Imported repair kits must confirm the original OEM code (e.g., CR250 model compatible with 06111-KZ3 series code) and ensure accurate compatibility between accessories and vehicle models through meticulous code comparison.

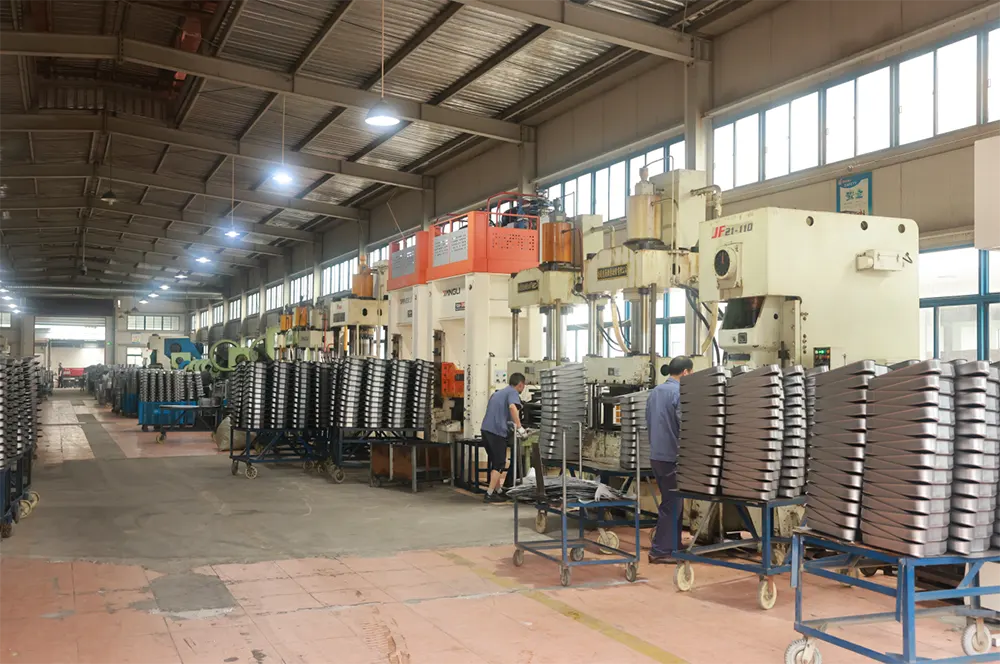

Max Trading's Factory Large Equipment
